Product detailed description

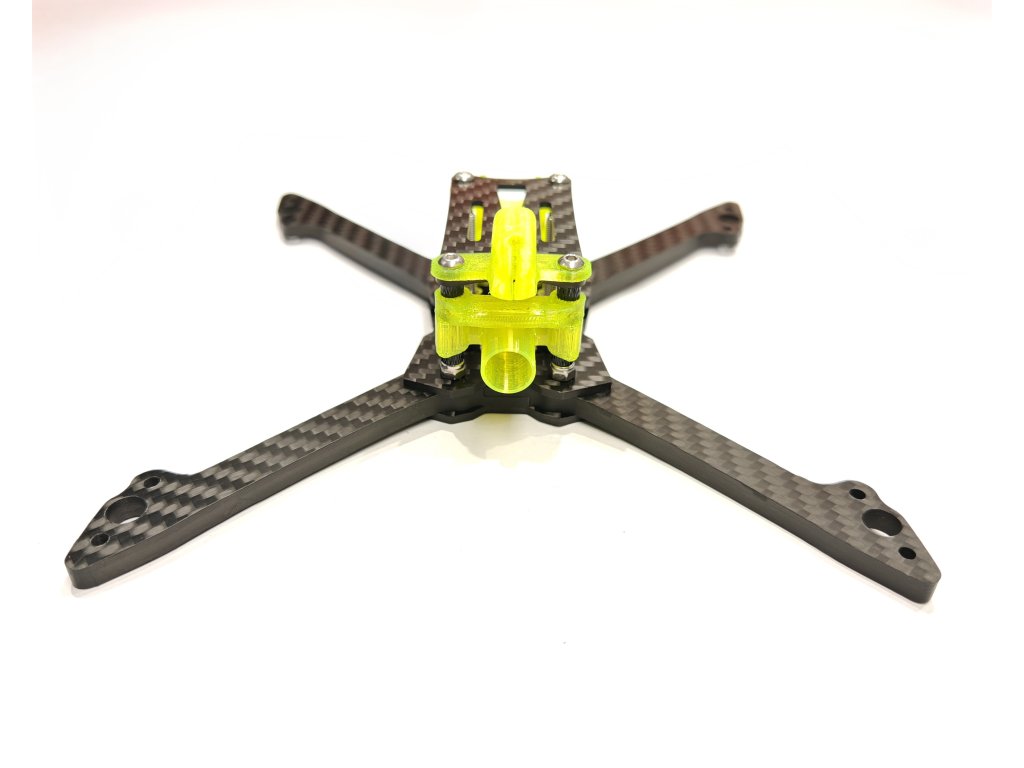

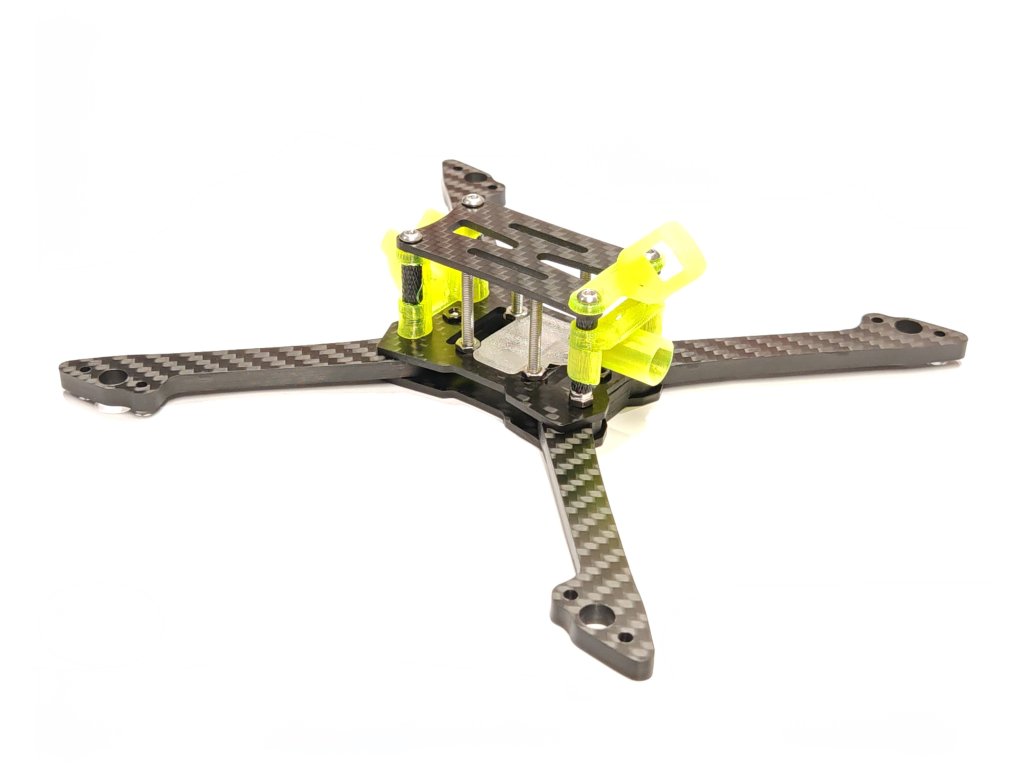

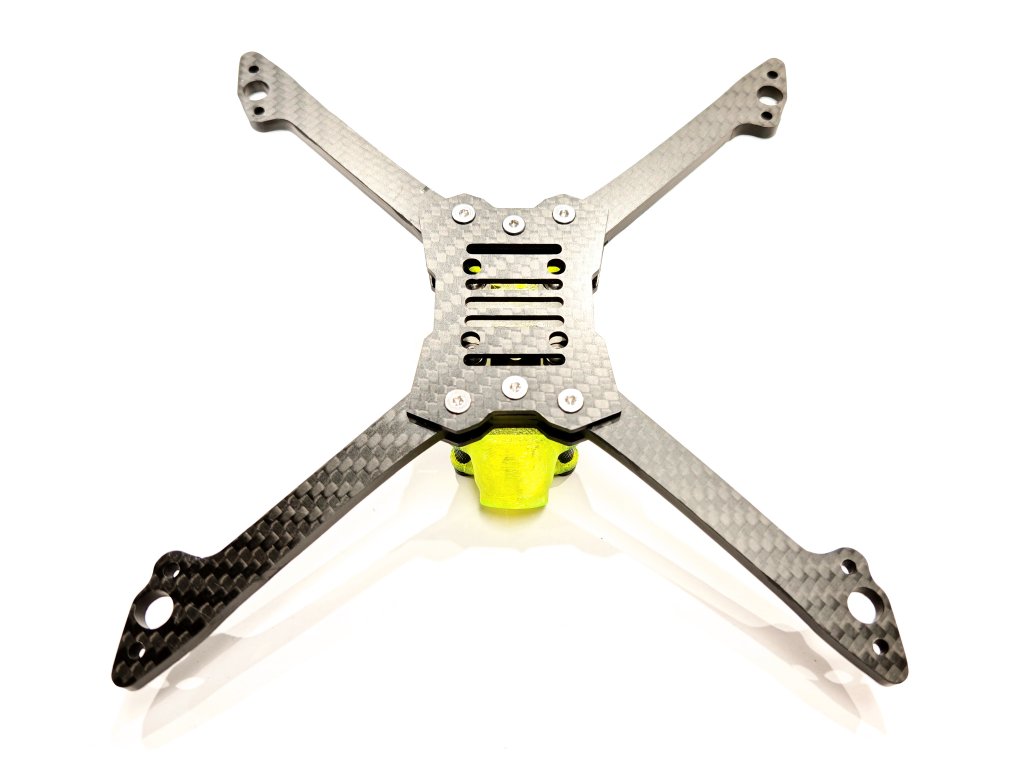

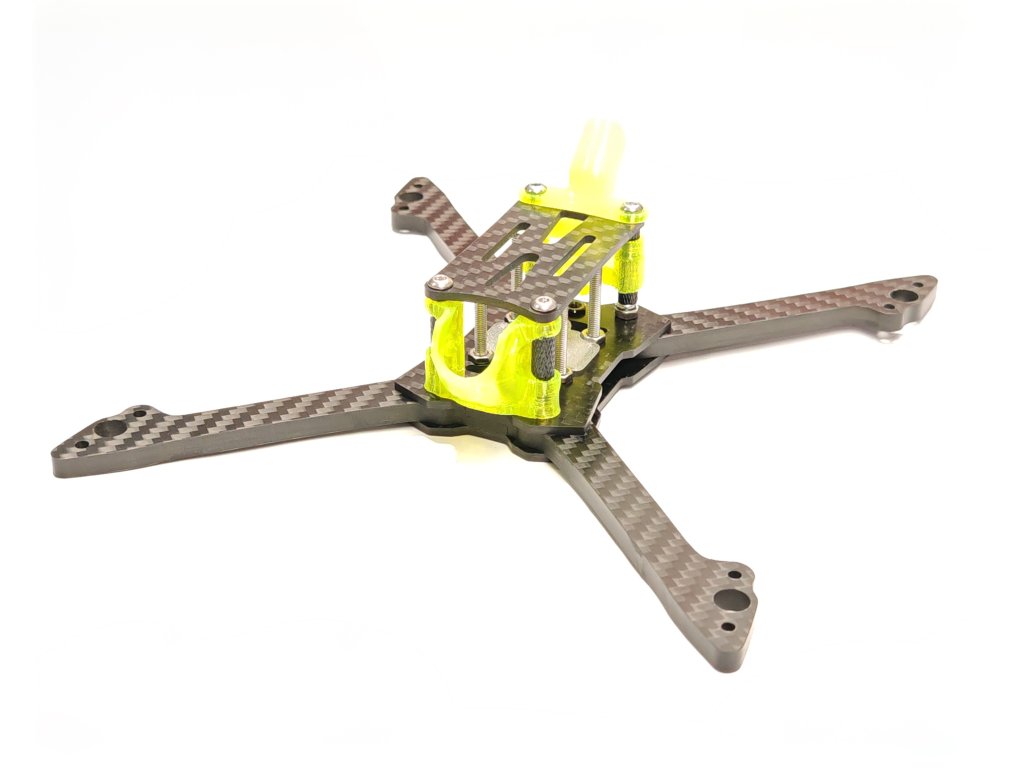

The frame of the XAERO Racer FPV racing drone is designed for overall rigidity and durability. All carbon parts are made of T300 carbon with a matte finish. The bottom wide fins protect the ESC against side impact. Height for the stack is 24mm (M2 bolts play a big weight saving role here). Designed for ESC and FC with a mounting pitch of 20x20mm. The frame can also accommodate an HDZero unit without problems. The holes in the bottom plate and on the arms are recessed (i.e. countersunk screws) - no more punctured batteries from screw heads! The space between the plates offers the possibility of using both 20mm and 15mm wide strapping (even 2x 15mm strapping side by side to firmly secure the drive battery).
Specifications:
- weight without 3d printing including screws - 62g
- weight with 3d printing including screws - 72g
- For NANO size fpv cameras
- Holes for stack mounting: 20x20mm
- Dimensions for mounting motors: 16x16mm
- Supplied with 3D printing (FPV Nano camera mount, 470uf capacitor mount, Lolipop Micro antenna mount)
Package includes:
- Xaero Racer frame (2x arm, 1x bottom plate, 1x middle plate, 1x top plate)
- Fasteners (posts, screws, nuts)
- 12x countersunk motor bolts
- 4x M2x25mm bolts including hole adapters for M3 stack
- 3D printing
- Non-slip battery pad rough (battery must be glued in one layer with Tesa fabric tape)
