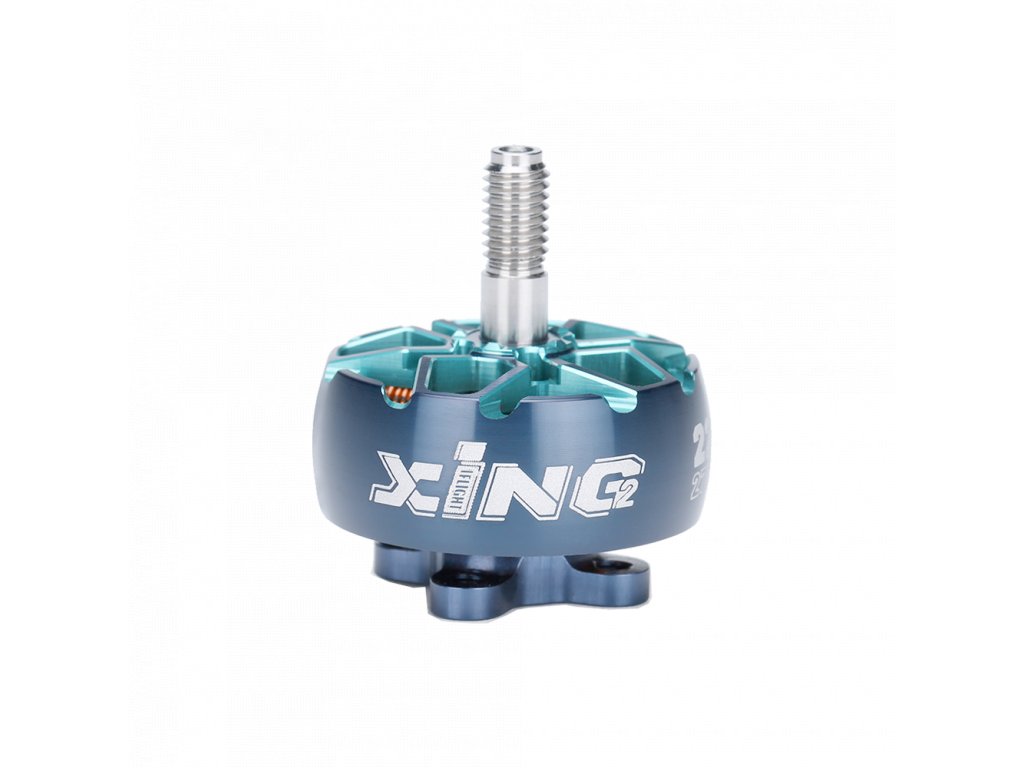

XING2 2207 FPV Motor
Related products
Product detailed description
XING' s NextGen seriesengines have become popular after their first release in 2018 and have become the new standard in the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings coupled with a higher grade titanium alloy shaft? All these years we have been copied and compared, but now it's time to set a new standard again! We are finally ready to announce our predecessor , the XING2!
XING's powerful engines have been upgraded to an even higher standard in our factory, as well as better performance than ever before. New N52H center-groove curved arc magnets have been introduced to significantly reduce motor response time! Perhaps the biggest bottleneck in our FPV flight controller is the motor due to its lag during braking and acceleration. The XING2 motors offer a faster response time to translate your PID loop faster and get the locked-in feel you've always been looking for!
Thanks to the high quality materials used and the durable bell and shaft connection, we have managed to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap, the lower this reluctance and the higher the magnetic flux, resulting in higher efficiency and higher performance for your FPV drones!
Description:
- 5mm titanium alloy shaft, our strongest propeller shaft ever!
- 7075 aluminum impact resistant bell
- Smooth NSK 9x4x4 bearings with long life
- N52H curved arc magnets with center groove
- Bearing gap protection with XING O-ring
- Motor wire protector
- Dynamically balanced
Specifications:
- KV: 1855KV / 2755KV
- Weight (including wire): 31.6g
- Dimension: φ29.08*19.1mm
- Interphase resistance: 50mΩ / 41.5mΩ
- Input voltage: 24V/16V
- Peak current: 35.08A / 40.35A
- Maximum watt: 841.90W / 645.60W
- Mounting holes: 16*16 φ3mm
- Rotor Specification:Unibell
- Shaft diameter: 5mm
- Length of protruding shaft: 13.5mm
- Outlet: 160mm/20AWG
- Magnet: N52H Curved
- Configuration: 12N14P
- Bearing type: NSK
- Bearing Specification: φ9*φ4*4
- Winding: single strand copper winding

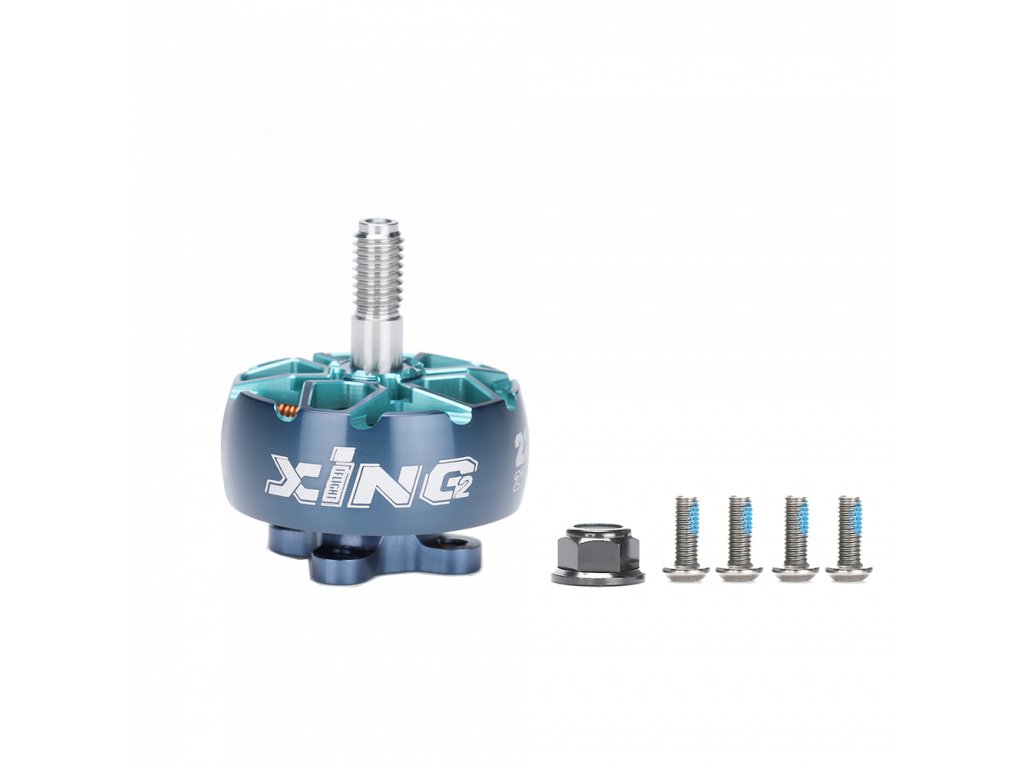

Package includes:
- 1x XING2 2207 commutatorless motor (KV is optional)
- 4x M3*7 screws
- 1x M5 flange nut
