X-AIR 5.8 MK II antennas for HDZERO glasses

Product detailed description

X-AIR MK II antennas with front mount for HDZERO glasses. Simply slide the antennas onto the module mounts and screw in the SMA connectors. The excellent 10 dBic gain combined with a 120 degree beamwidth provides an amazing flying experience in a compact, low profile package. The most compact antennas at this gain level are only 15 mm thick, so you can leave them mounted all the time without worrying about breaking them. The included slide-on mounts fit on HDZERO FPV goggles for easy installation.

Custom made SMA connectors fit the HDzero in style.
As with all other X-AIR antenna components, the custom SMA connector is made to the highest standards to fit perfectly with your HDzero module and ensure that every bit of RF energy is transmitted from the X-AIR. The knurled surface ensures easy tightening and a quality look exclusive to TrueRC.

Description:

• Circularly polarized

• Mounts directly to HDzero glasses with included slip-on mounts.

• Compact low-profile design, easy storage and transport

• High 10 dBic for long range and signal penetration

• Large SWR and axial ratio bandwidth, works outside the 5.8 GHz band

• Super wide beamwidth of 120 degrees for each antenna combined with a beamwidth of 135 degrees

• Custom notched SMA connectors

• Bandwidth: 5.1 GHz-6.7 GHz

• Gain: 9.5-10.5 dBic

• Polarization: RHCP

• Beamwidth*: 120 degrees

• Beamwidth @-3dB**: 68 degrees.

• SMA connector.

• Size: 32 x 32 x 15 mm

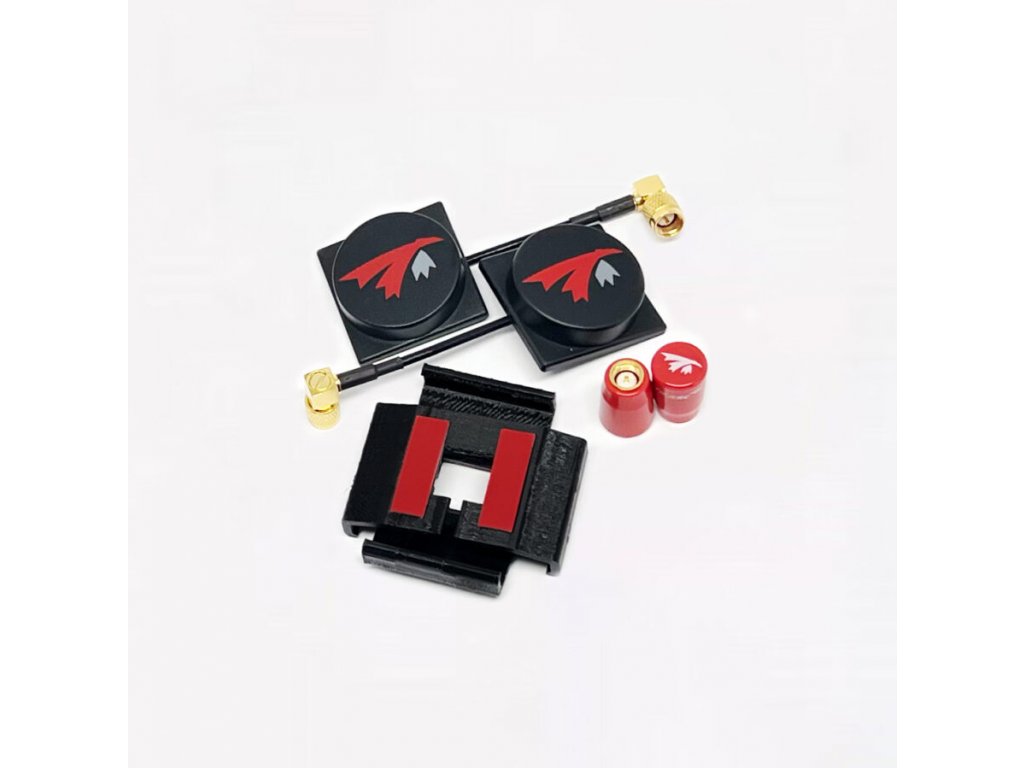

Includes brackets for installation on HDzero glasses and 2x SINGULARITY 5.8 STUBBY SMA (red)
