Volador VX3 DJI O4
Product detailed description

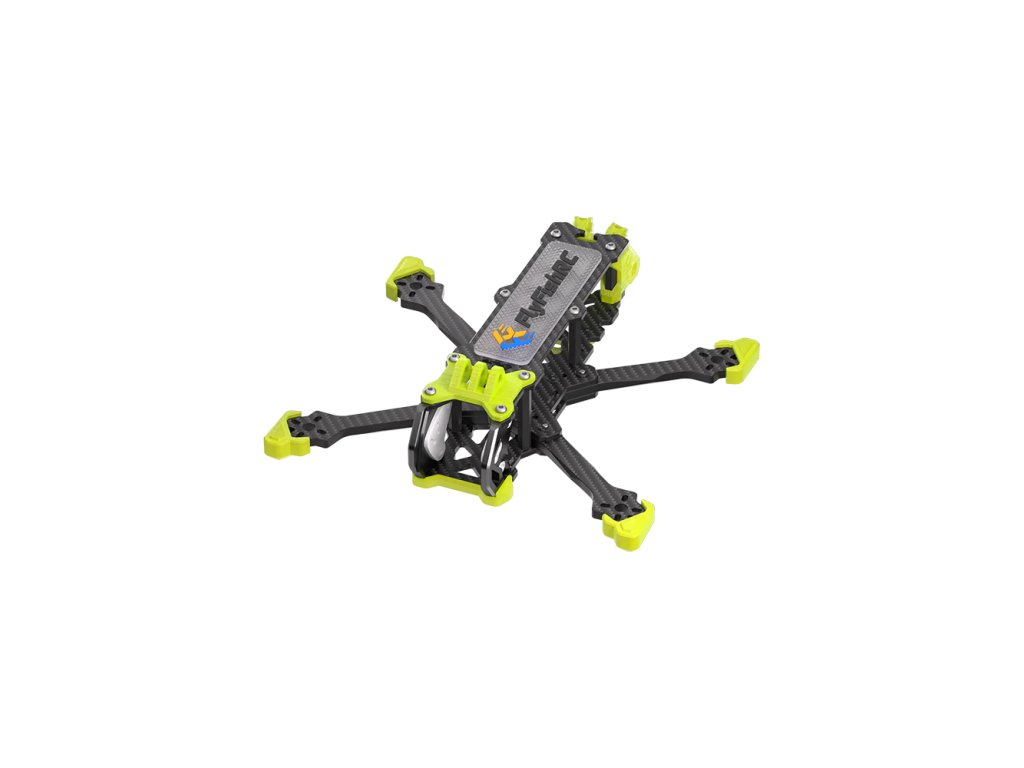

Volador II VX3 – A Compact FPV Frame with a 5-Inch Soul
Introducing the all-new Volador VX3 frame kit, delivering a flight experience comparable to 5” drones – in a significantly more compact form. The frame is highly compatible, structurally simple, and comes with all the necessary accessories for a fast, clean, and hassle-free build.
Maximum Control with Proven Geometry
The frame features a Squashed X configuration, offering excellent maneuverability and high compatibility with a wide range of analog and digital FPV systems. Its design is engineered to minimize resonance while delivering optimal performance in a small size.
Clean Builds That Will Satisfy Even Perfectionists
The high-quality TPU components are designed for a fully integrated and ultra-clean installation. With precision fitment, smart cable routing, and attention to detail, this frame will please even the most meticulous builders.
Optimized for DJI O4 and 19/20mm Cameras
Included in the design is a silicone insert specifically for mounting the DJI O4 camera. It eliminates jello from your video and supports all standard 19/20 mm FPV cameras.
Premium Materials and Fine Details
Built from top-tier T700 carbon fiber plates and CNC-machined aluminum components with a smooth surface finish and uniformly chamfered edges – no sharp corners, no damaged wires or battery straps.
Ready for Analog and HD Builds
The kit includes full accessory support for both analog and digital builds (including DJI). All screws come pre-applied with Loctite threadlocker for maximum reliability. The compact and rigid structure also helps to significantly reduce vibrations.
Technical Specifications – Volador VX3
-
Arm thickness: 3.5 mm
-
Top plate: 2 mm
-
Middle plate: 2.5 mm
-
Bottom plate: 2.5 mm
-
Keystone: 3.5 mm
-
CNC side plates: 5 mm
-
Propeller size: 3"
-
Material: T700 carbon fiber
-
FPV camera spacing: 19 mm / 20 mm
-
Weight (with TPU): 68.3 g
-
Color: Yellow
-
Frame dimensions: 118 mm × 135 mm
-
Wheelbase: 144 mm
-
Stack mounting holes: 20×20 mm / 25.5×25.5 mm (M2)
-
VTX mounting holes: 20×20 mm / 25.5×25.5 mm (M2)
Package Includes
-
1× Volador VX3 frame kit
(includes all screws, standoffs, TPU parts, and mounting accessories)
