Volador II VX6 O4 FPV frame
Product detailed description

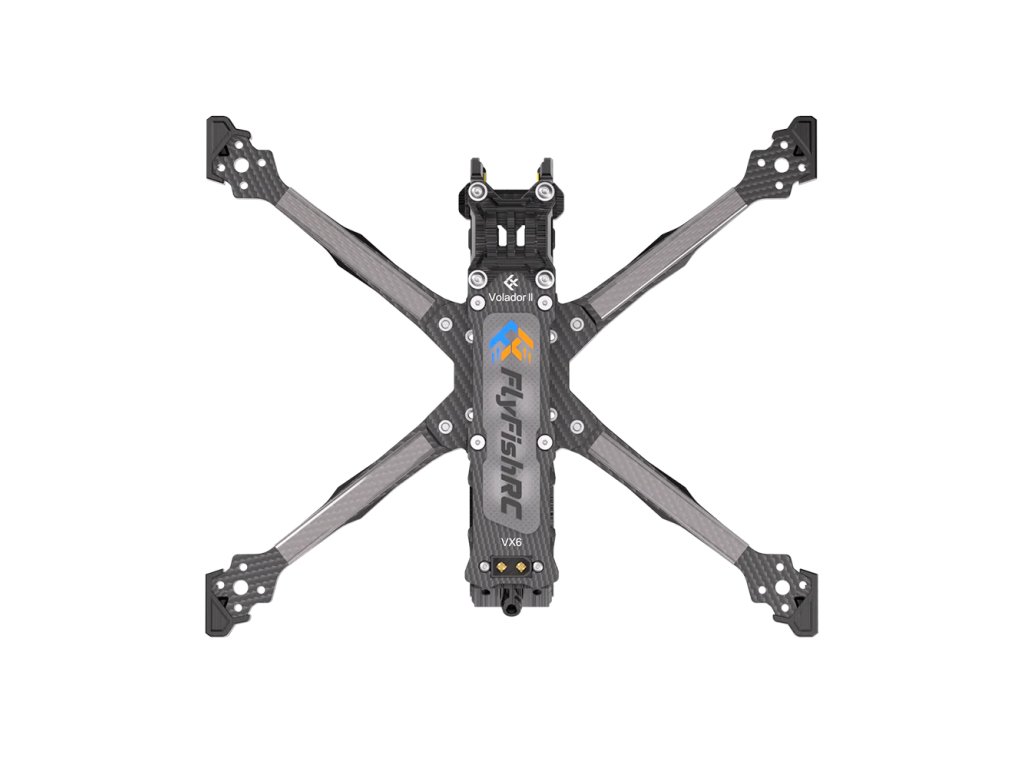

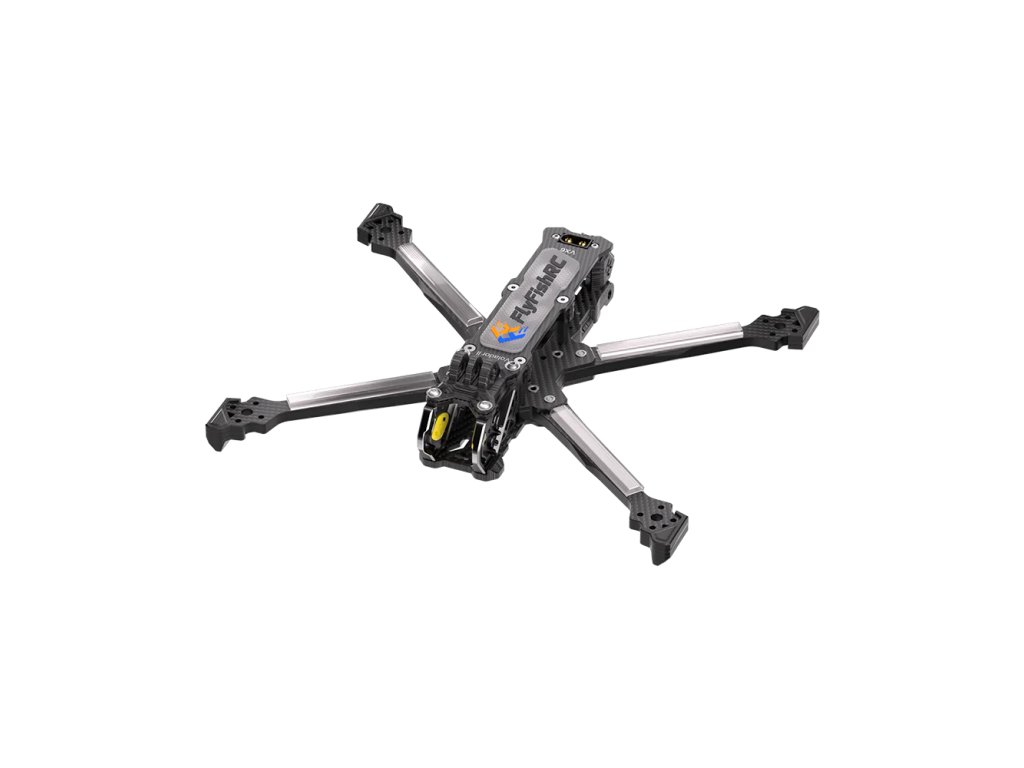

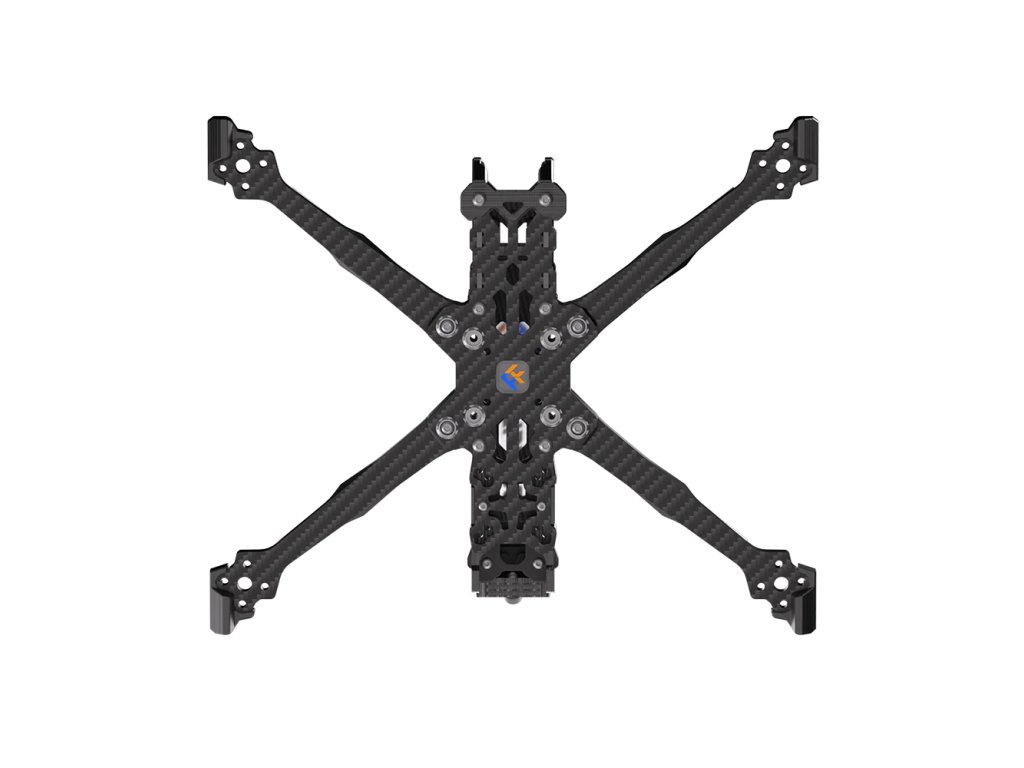

Volador II VX6 – 6” FPV Frame of the New Generation
Introducing the second generation of the popular 6" Volador frame – the Volador II. Built on valuable feedback from pilots and testers (special thanks to Ryan Harrell and Kai Lin), this updated version brings major improvements in performance, precision, and aesthetics.
Maximum Performance, Clean Builds, No Compromises
The Volador II VX uses the proven Squashed X configuration for precise flight characteristics and ultimate control. The frame is engineered for easy and clean assembly – all essential accessories and hardware are included in the kit.
Whether you're building an analog or HD setup, the Volador II adapts with ease. High compatibility with all major systems and removable arms help minimize vibrations thanks to a stiff, tightly fitted structure.
Premium Materials & Thoughtful Details
Top-grade T700 carbon fiber for unmatched strength-to-weight ratio
CNC-machined aluminum parts with smooth surfaces and chamfered edges – no more damaged wires or battery straps
Special silicone damping insert for the DJI O4 camera to eliminate jello in your DVR footage
Upgraded battery pad with added grip texture and stronger adhesion
Integrated XT60 connector at the rear of the frame – safe, practical, and protected from prop strikes
Clean Builds with Surgical Precision
For those who love clean, perfectly routed builds – the Volador II stands alone. It's the only frame on the market that enables a truly flawless cable layout. The high-quality TPU parts are designed for perfect fitment, improved durability, and in the Tropical Mix colorway, they simply look stunning.
Key Features of the V2 Version
Top-quality T700 carbon fiber plates
Compact and rigid design for minimized resonance
CNC aluminum side plates for enhanced camera protection
Silicone shock absorbers for DJI O4
Integrated XT60 connector
High-grade TPU components
Redesigned anti-slip battery pad
Protective motor wire sleeves
Camera mount compatibility: 19/20 mm
Includes all accessories needed for analog and HD builds
12.9-grade steel hardware with pre-applied Loctite threadlocker
What’s New Compared to V1
Significantly lighter overall frame weight
Lighter CNC side plates optimized for DJI O4
Improved battery pad grip
New central keystone to reduce arm vibrations
New motor wire protection sleeves
Recessed top plate screws – no more battery damage during crashes
Lighter, easier-to-remove TPU arm guards
Optional antenna mounts with or without GPS
Adjusted plate thicknesses for improved strength-to-weight balance
Symmetrical XT60 cutout – allows mounting in both orientations
Technical Specifications – Volador II VX6
Arm thickness: 6 mm
Top/Mid/Bottom plate thickness: 2.5 mm
Side plate thickness: 2 mm / CNC side plate: 5 mm
Keystone thickness: 5 mm
Propeller size: 6"–6.1"
Wheelbase: 268 mm
Overall dimensions: 209 mm × 159 mm
Stack mounting holes: 20×20 / 30.5×30.5 mm (M3)
VTX mounting holes: 20×20 / 25.5×25.5 mm (M2)
FPV camera size: 19 / 20 mm
Weight (with TPU parts): 188.2 g
Color options: Black
Package Includes
1× Volador II VX6 Frame Kit
(includes all screws, standoffs, TPU parts, and accessories)
If you're looking for a lightweight, durable, and precisely engineered frame that lets you build clean and fly hard – the Volador II is your perfect match.
