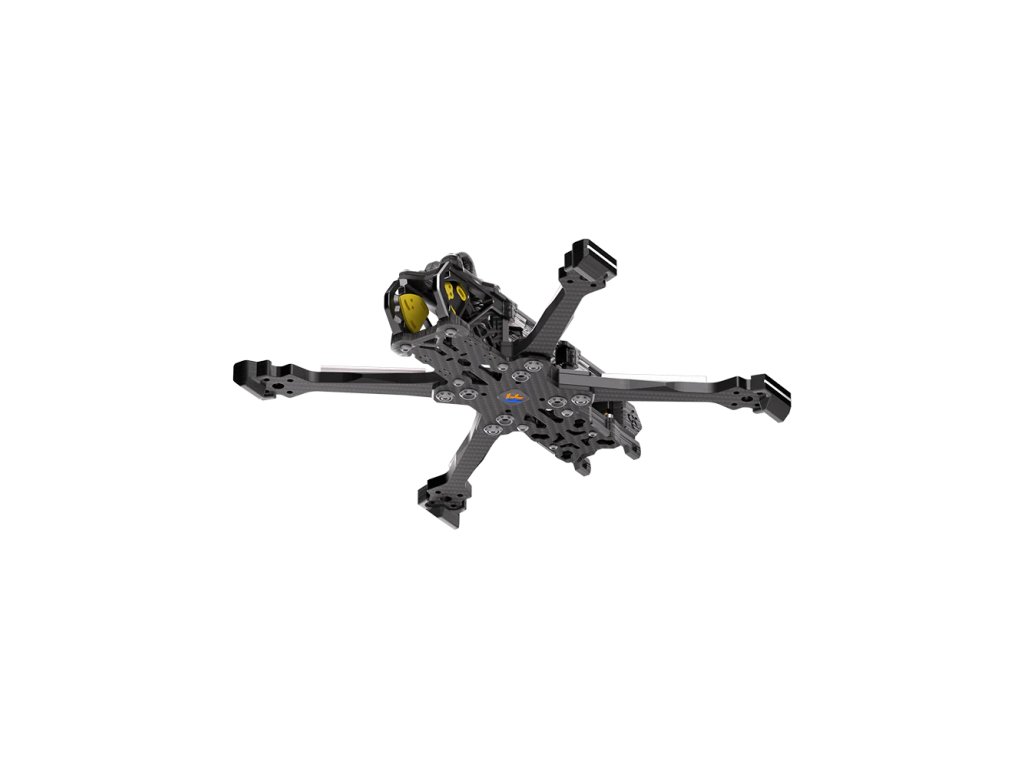

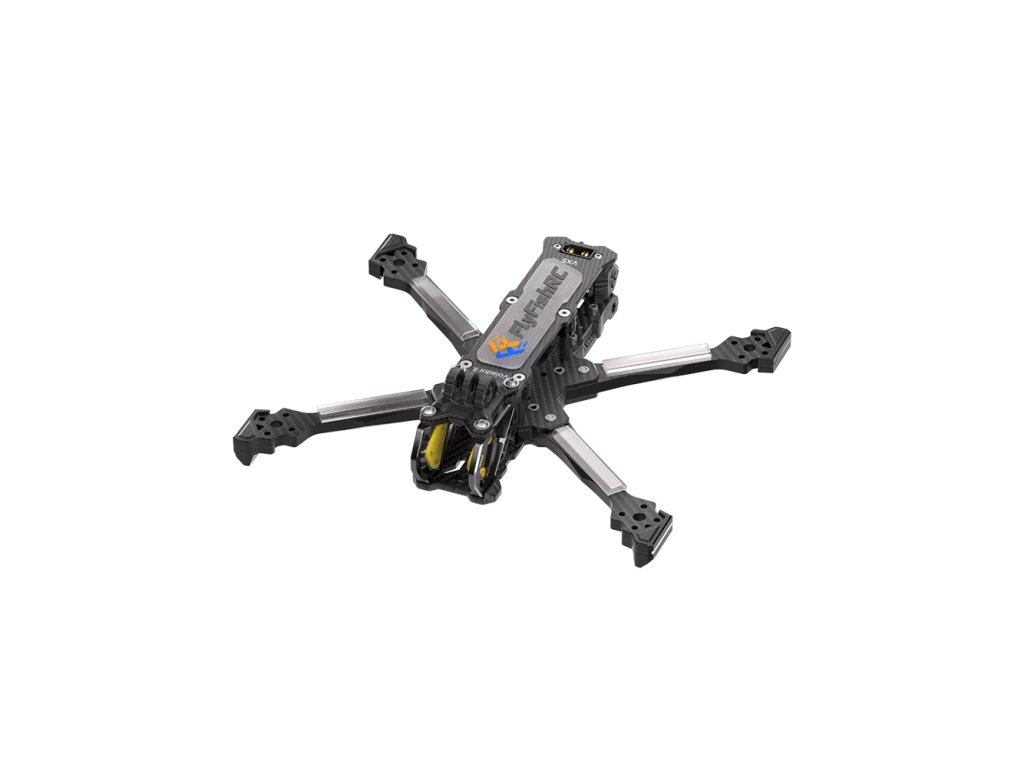

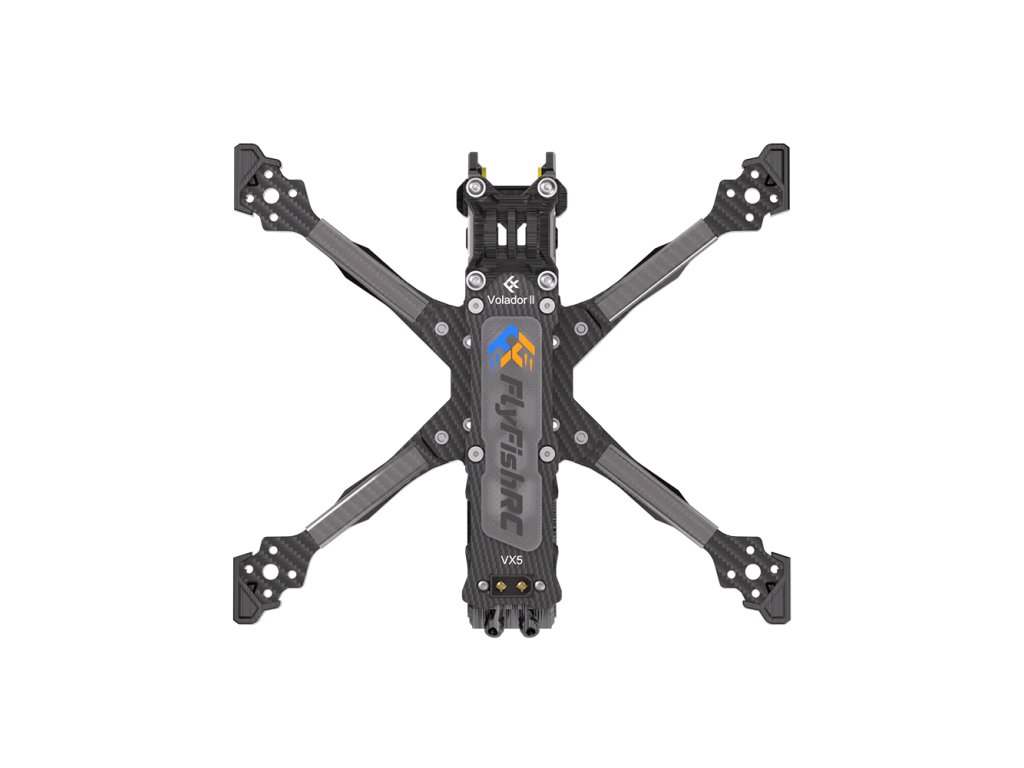

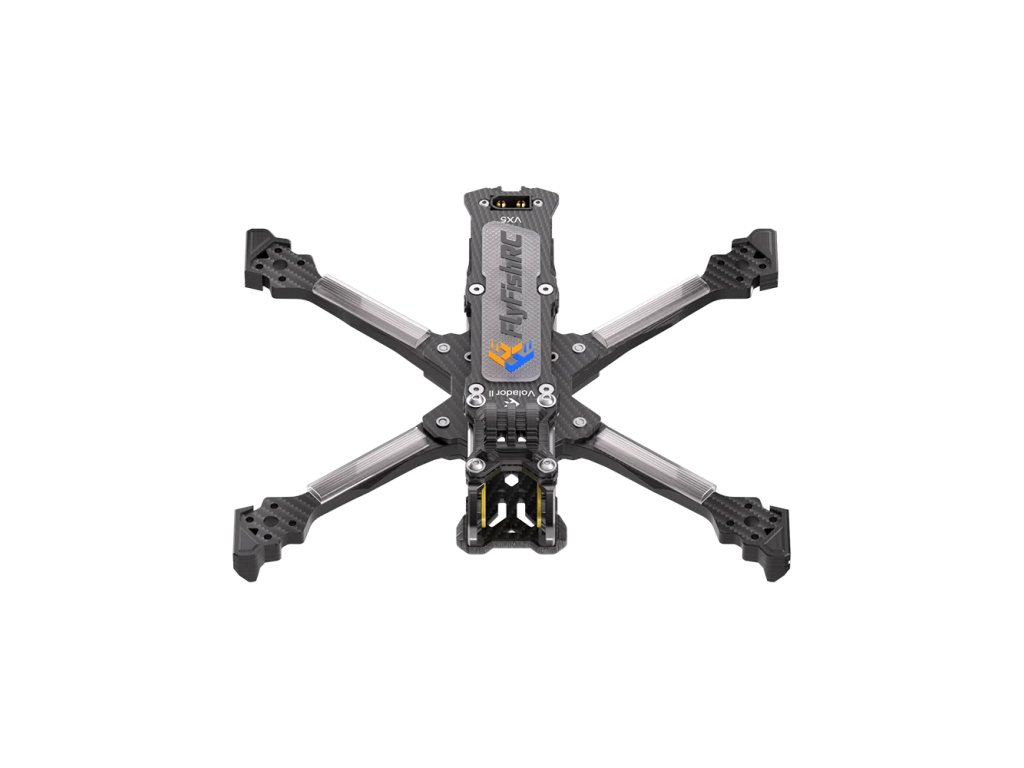

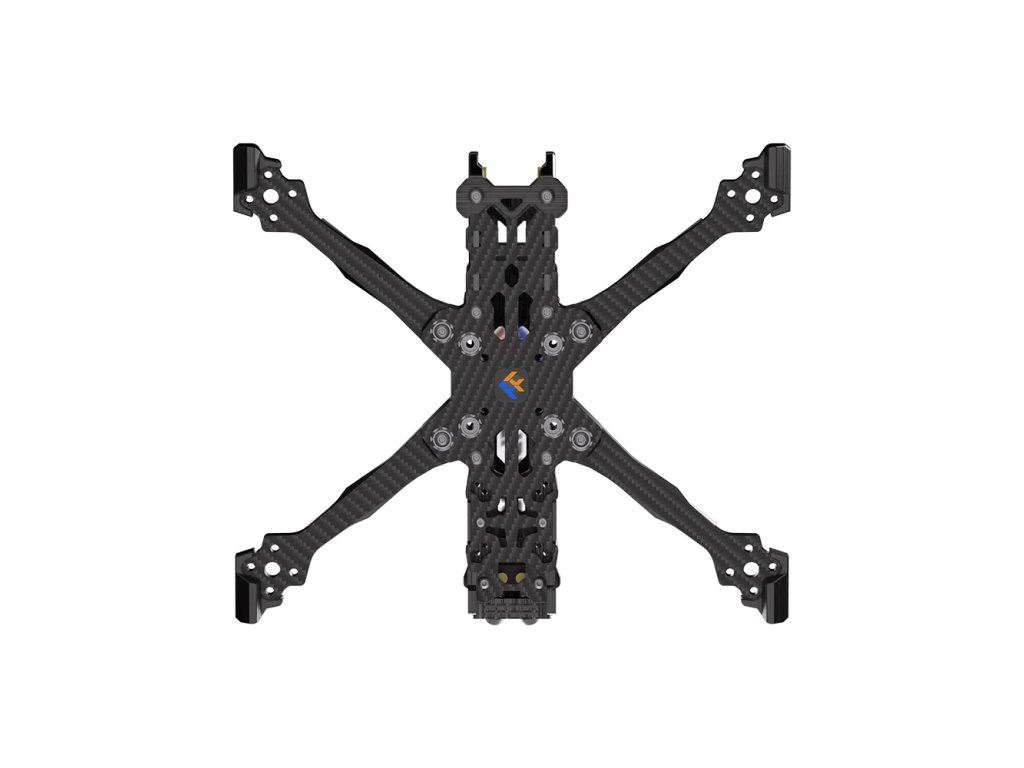

Volador II VX5 O4 FPV Freestyle FPV frame
Product detailed description
Volador II VX5 – 5” FPV Frame of the New Generation
Introducing the second generation of the popular 5" Volador frame – Volador II, bringing a range of upgrades based on valuable input from pilots and testers. Special thanks to Ryan Harrell and Kai Lin. Thanks to their feedback, Volador II has reached a new level of performance, precision, and aesthetics.
Maximum Performance, Clean Build, No Compromises
Volador II VX features the proven Squashed X configuration for optimal control and precise flight characteristics. The frame is designed for simple and tidy assembly – all necessary accessories and hardware are included in the kit.
Whether you're building an analog or HD setup, Volador II adapts with ease. Its high compatibility with most systems and removable arms help minimize vibrations through a stiff, perfectly matched structure.
Premium Materials and Thoughtful Details
T700 high-quality carbon fiber for maximum strength at minimum weight
CNC-machined aluminum components with smooth finish and chamfered edges – no damaged wires or straps
Silicone shock-absorbing insert for DJI O4 camera – eliminates jello in recordings
Improved battery pad with grid texture and extra grip
Integrated XT60 connector at the rear – safe, convenient, and protected from propeller damage
Clean and Precise Builds Without Compromise
Clean build lovers, rejoice – Volador II is the only frame on the market that enables truly flawless cable management. The high-quality TPU parts fit perfectly, increase durability, and in the Tropical Mix color option, they simply stand out.
Key Features of the V2 Version
T700 carbon plates of the highest quality
Compact and stiff structure for reduced resonance
CNC aluminum side plates for maximum camera protection
Silicone anti-jello insert for DJI O4
Integrated XT60 connector
High-quality TPU components
Improved anti-slip battery pad
Protective motor wire tubes
Compatible with 19 mm / 20 mm FPV cameras
Complete accessory set for analog and HD builds
12.9-grade steel hardware with pre-applied Loctite threadlocker
What’s New Compared to V1
Significantly lighter frame
Lighter CNC side plates optimized for DJI O4
Improved battery pad grip
New central keystone for further vibration damping
New motor wire protection tubes
Recessed center screws on the top plate = no battery damage during crashes
Lighter TPU arm protectors, easier to remove
Optional antenna mounts included (with or without GPS support)
Adjusted plate thickness for better weight-to-strength balance
Symmetrical XT60 cutout – allows mounting in either direction
Volador II VX5 Specifications
Arm thickness: 6 mm
Top plate: 2.5 mm
Middle plate: 2.5 mm
Bottom plate: 2.5 mm
Keystone: 5 mm
Side plates: 2 mm
CNC side plates: 5 mm
Propeller size: 5"–5.1"
Material: T700 carbon fiber
FPV cam spacing: 19 mm / 20 mm
Weight (with TPU parts): 177.4 g
Color: Black
Total dimensions: 177 mm × 165 mm
Wheelbase: 225 mm
Stack mounting holes: 20×20 mm / 30.5×30.5 mm (M3)
VTX mounting holes: 20×20 mm / 25.5×25.5 mm (M2)
Included in the Package
1× Volador II VX5 Frame Kit
(includes all screws, standoffs, TPU parts, and accessories)
