Volador II VD6 O4 Deadcat FPV frame

Brand: FlyFishRC
€75,69 €62,55 excl. VAT
In stock (>5 pcs)
Delivery to:
04.04.2025
Delivery offer

Detailed information

Product detailed description

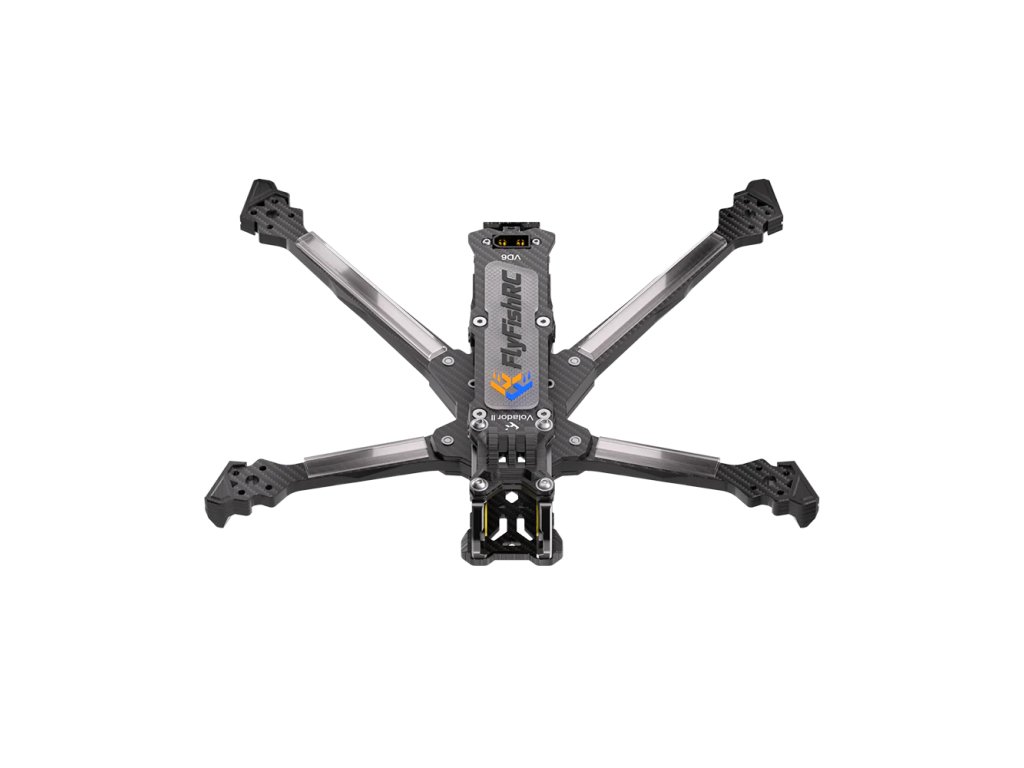

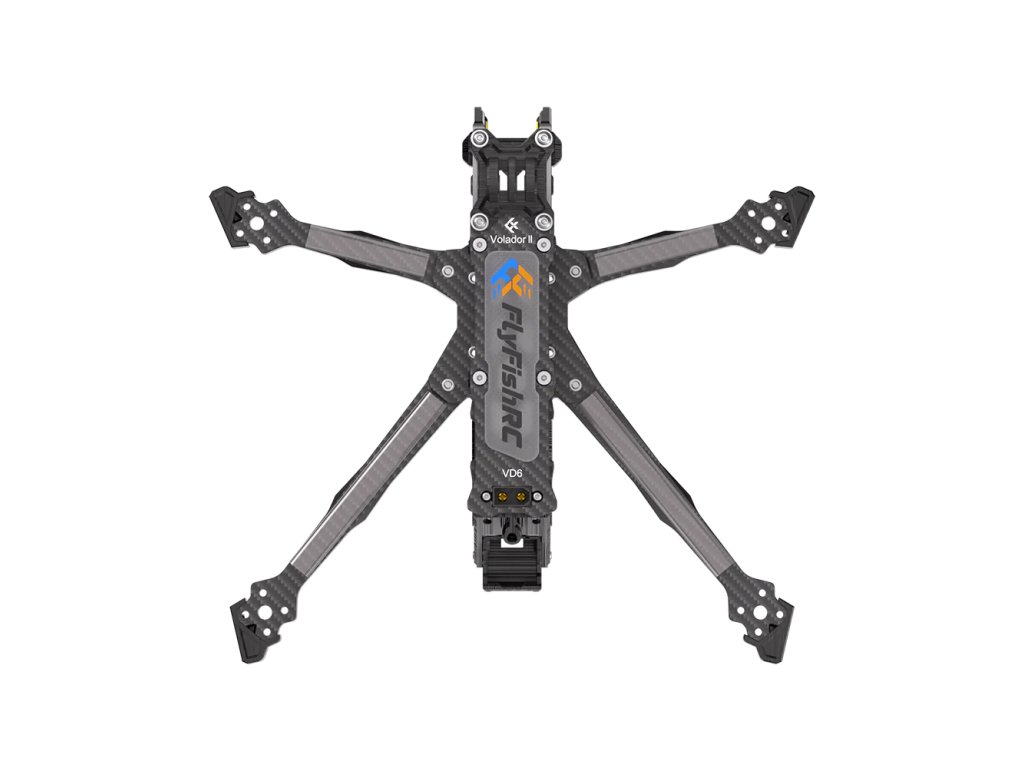

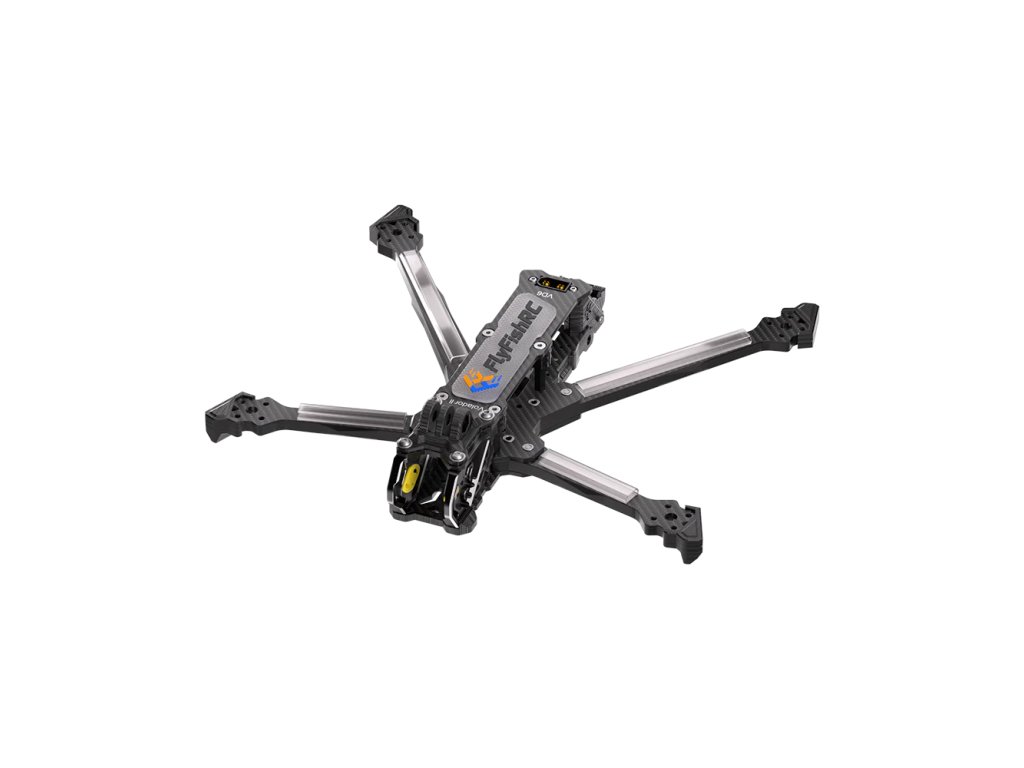

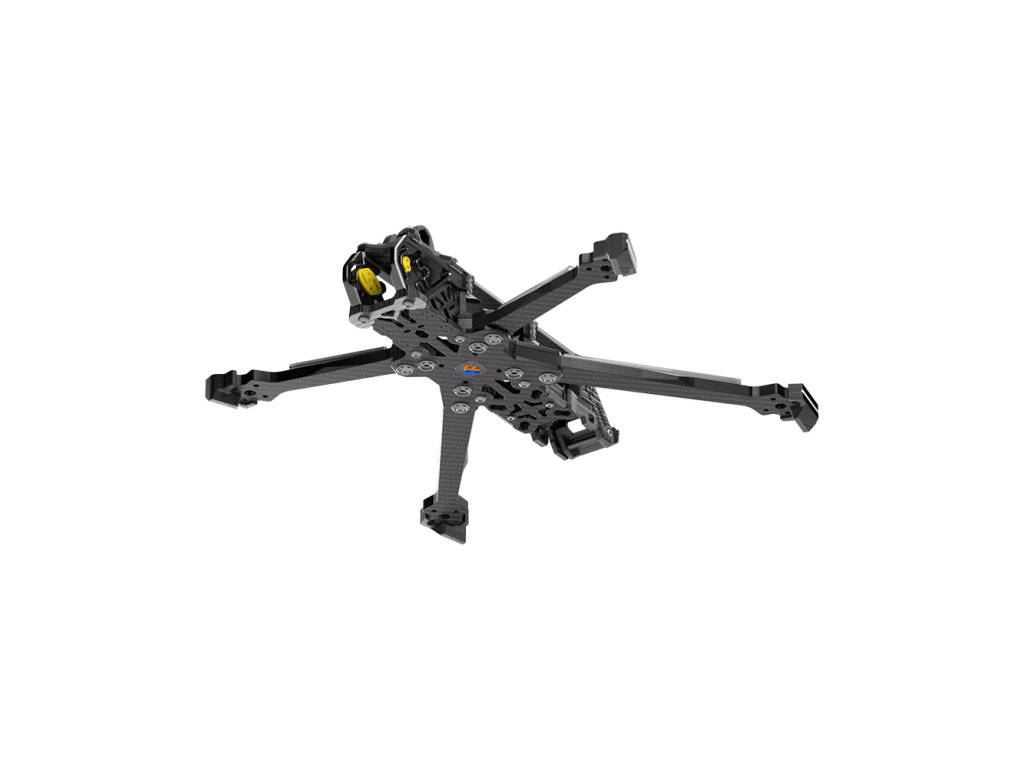

Volador II VD6 – 6” Deadcat FPV Frame

The second generation of the popular Volador 6” frame is here – the Volador II VD6. Developed with direct input from experienced pilots and testers (shoutout to Ryan Harrell and Kai Lin), this frame has been fine-tuned to meet the needs of today’s demanding FPV community.

Optimized for Clean Builds and Maximum Performance

The VD6 comes in the popular Deadcat configuration, keeping your props out of view while maintaining precise flight performance. Designed with modularity and simplicity in mind, it includes all the necessary accessories for a smooth and organized build – analog or HD.

Top-tier Build Quality

  • Made from premium T700 carbon fiber for superior strength and low weight

  • Reinforced with CNC-machined aluminum side plates – smooth surface, beveled edges

  • Integrated silicone shock insert eliminates camera jello and fits 19/20 mm FPV cams

  • Redesigned anti-slip battery pad with grid texture and improved adhesive

  • Rear-mounted XT60 connector for clean battery routing and prop strike protection

  • Ultra-precise TPU parts for neat wiring, secure component placement, and stylish aesthetics

  • Choose the vibrant Tropical Mix or classic Black TPU set

Built for Pilots Who Obsess Over Clean Wiring

The VD6 is the only frame that lets you build with true OCD-level neatness. Every detail – from the antenna mounts to the flush countersunk screws – is designed to keep your build compact, clean, and free of clutter.

V2 Frame Highlights

  • T700 carbon fiber construction

  • Rigid frame geometry to reduce resonance

  • New CNC aluminum side plates for enhanced camera protection

  • Silicone anti-jello mount for DJI O4 Air Unit

  • Integrated XT60 connector (rear)

  • High-quality TPU components

  • Anti-slip battery pad with improved grip

  • Motor wire protection sleeves

  • Compatible with both 19 mm and 20 mm cameras

  • Complete hardware for analog & HD builds included

  • 12.9-grade steel screws with pre-applied Loctite

  • Maximum electronics compatibility

Upgrades from V1 to V2

  • Reduced frame weight

  • Lighter CNC side plates with perfect fit for DJI O4

  • Improved battery pad adhesion

  • New center keystone to reduce arm vibrations

  • Added bottom plate screw gasket

  • New motor wire protection

  • Recessed top plate screws = no more battery impact in crashes

  • Lightweight TPU arm guards with easy removal

  • Two antenna mounts included (with/without GPS)

  • 2.5 mm thickened bottom and mid plates

  • Improved stress distribution at arm mounting

  • Symmetrical XT60 cutout = mount in either direction

Technical Specs – Volador II VD6

  • Arm thickness: 6 mm

  • Top plate: 2.5 mm

  • Mid plate: 2.5 mm

  • Bottom plate: 2.5 mm

  • Keystone: 5 mm

  • Side plate: 2 mm

  • CNC side plate: 5 mm

  • Propeller size: 6–6.1 inch

  • FPV camera spacing: 19/20 mm

  • Weight (with TPU): 200 g

  • Material: T700 carbon fiber

  • Color options: Black

  • Total dimensions: 259 mm × 109 mm

  • Wheelbase: 260 mm

  • Stack mounting: 20×20 / 30.5×30.5 mm (M3)

  • VTX mounting: 20×20 / 25.5×25.5 mm (M2)

Included in the Box

  • 1× Volador II VD6 Frame Kit
    (includes all necessary hardware, standoffs, TPU parts, and accessories)

Looking for a reliable, durable and ultra-clean FPV frame with zero prop view?
The Volador II VD6 is the professional choice for high-performance Deadcat setups.
