Volador II VD5 O4 Deadcat FPV frame
Product detailed description

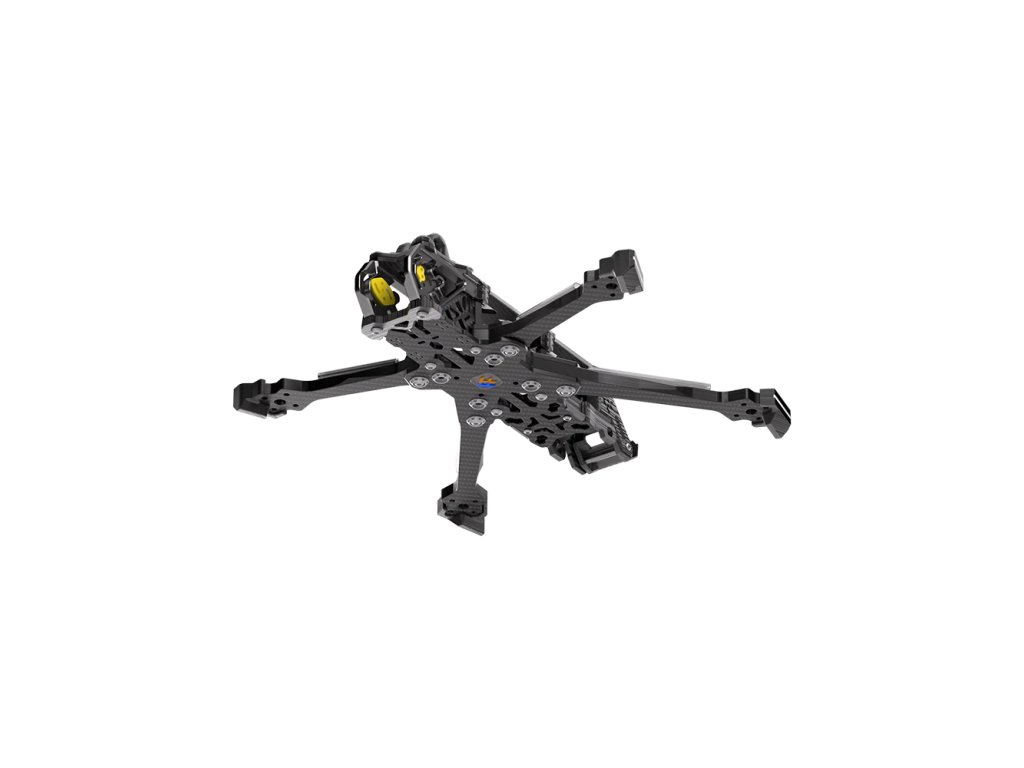

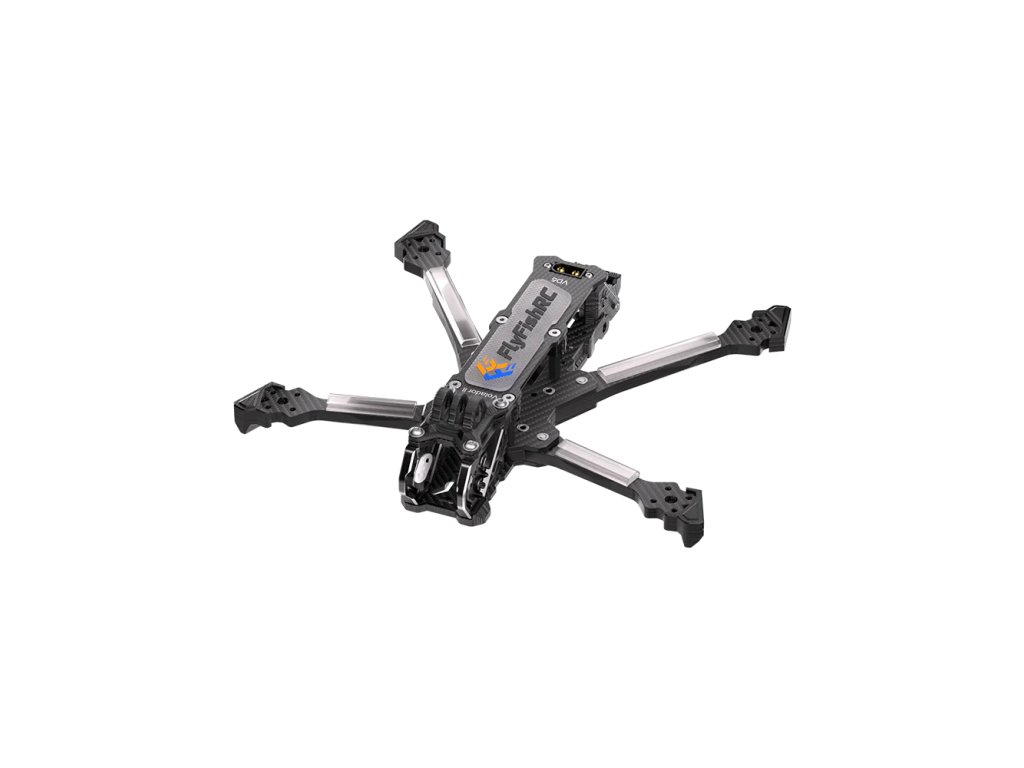

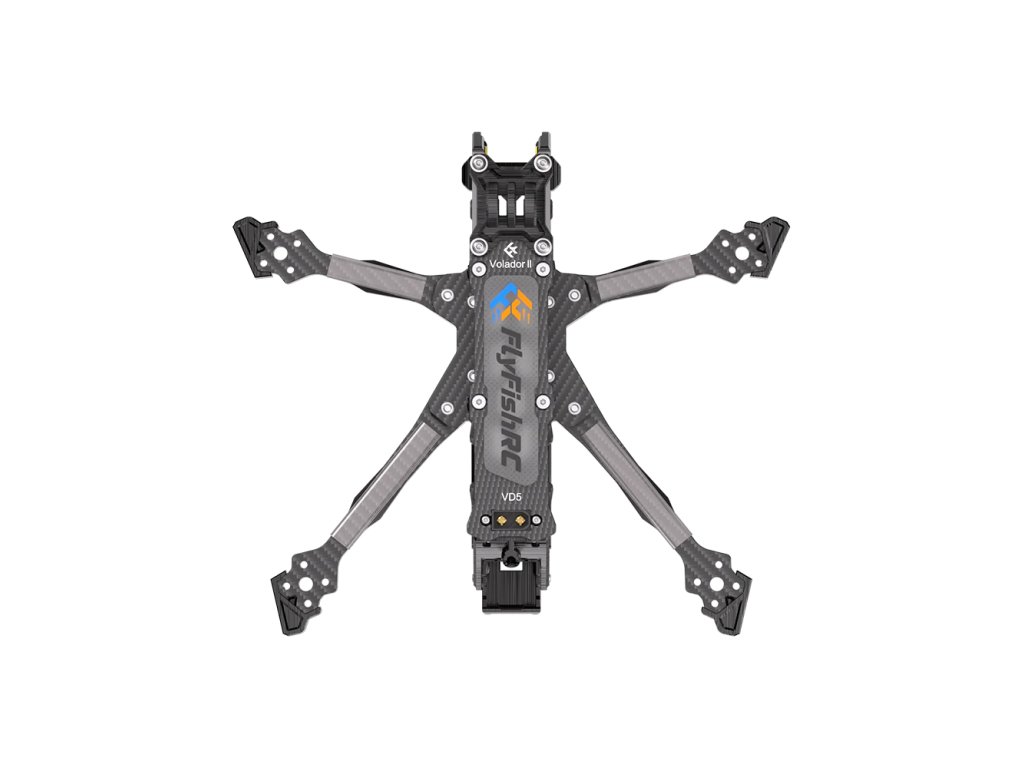

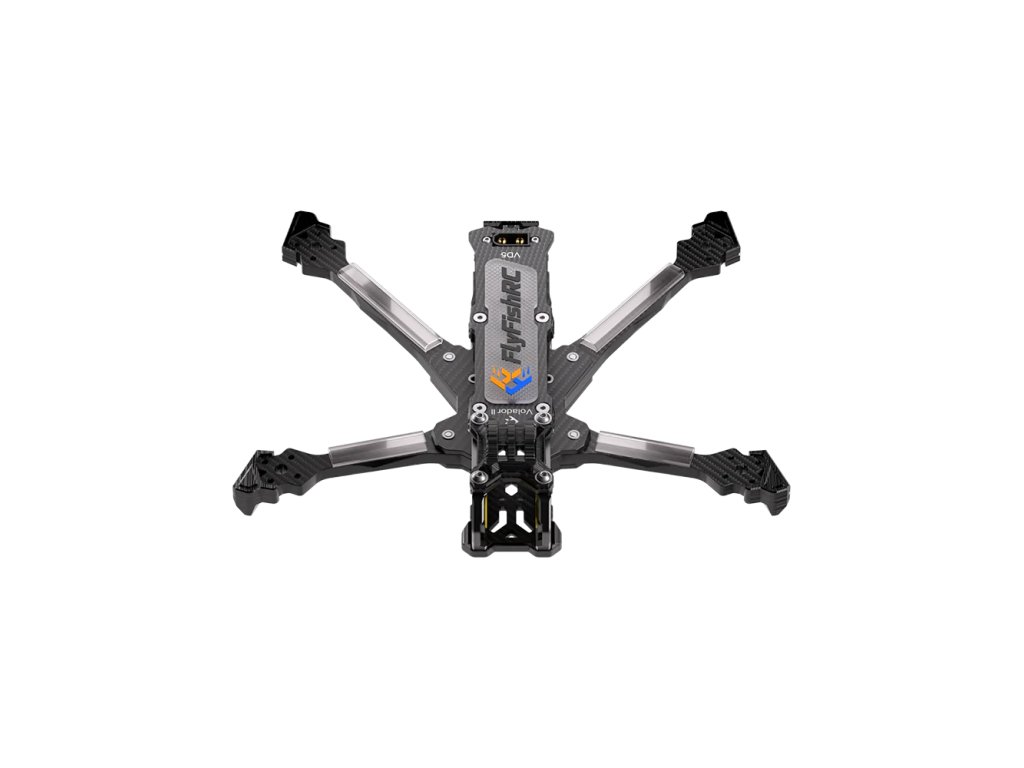

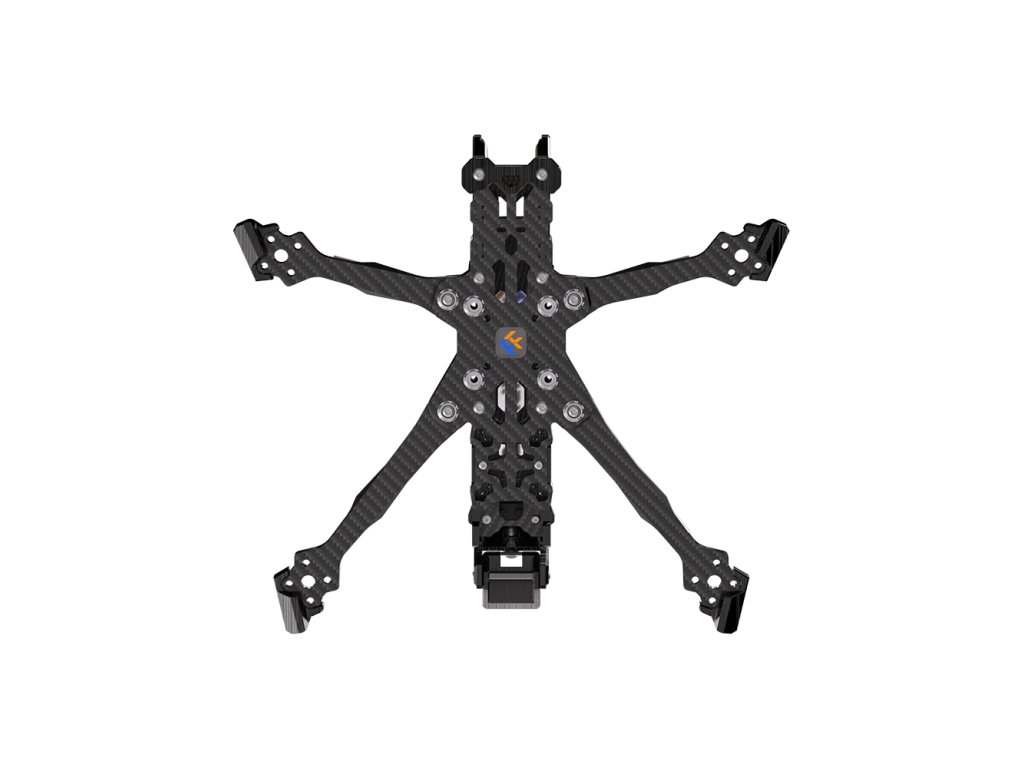

Volador II VD5 – 5” Deadcat FPV Frame
Introducing the second generation of the popular 5” Volador frame – Volador II VD5. Developed based on direct feedback from experienced pilots and testers (special thanks to Ryan Harrell and Kai Lin), this frame has been carefully refined to meet the demands of the modern FPV scene.
Optimized for Clean Builds and Maximum Performance
The VD5 features the popular Deadcat configuration, keeping props out of view while maintaining excellent flight characteristics. Designed with simplicity and modularity in mind, it includes all accessories for a smooth and tidy build – whether analog or HD.
Premium Materials and Craftsmanship
Made from top-quality T700 carbon fiber for maximum strength and low weight
Reinforced CNC-machined aluminum side plates with smooth finish and chamfered edges
Integrated silicone vibration-damping insert – eliminates jello, compatible with 19/20 mm cameras
Redesigned anti-slip battery pad with grid texture and stronger adhesive
Integrated XT60 connector at the rear – protected from props and easy to plug in with one hand
Precision-fit TPU parts for clean cable routing, secure mounting, and a sleek finish
For Pilots Who Love Clean, Precise Builds
The VD5 is the only frame on the market that enables truly perfect and organized cable management. Every detail – from the antenna mount to the flush screws – is engineered for a clean and efficient build.
Key Features of the V2 Version
-
High-quality T700 carbon fiber construction
-
Rigid frame geometry for minimized vibration
-
New CNC aluminum side plates for enhanced camera protection
-
Silicone anti-jello mount for DJI O4
-
Integrated rear-mounted XT60 connector
-
High-quality TPU components
-
Redesigned anti-slip battery pad
-
Motor wire protection sleeves
-
Compatible with 19 mm and 20 mm FPV cameras
-
Complete accessory set for analog and HD builds
-
12.9-grade steel screws with pre-applied Loctite
-
Maximum compatibility with modern electronics
Upgrades from V1
-
Significantly reduced frame weight
-
Lighter CNC side plates optimized for DJI O4
-
Improved battery pad grip
-
New central keystone for further arm vibration damping
-
Added bottom screw gasket
-
New motor wire protection tubes
-
Recessed top plate screws = no battery damage during crashes
-
Lighter TPU arm protectors for easier removal
-
Two antenna mount types included (with and without GPS support)
-
Bottom and middle plates upgraded to 2.5 mm thickness
-
Improved stress distribution in arm mounting design
-
Symmetrical XT60 cutout – allows mounting in both directions
Specifications – Volador II VD5
-
Arm thickness: 6 mm
-
Top plate: 2.5 mm
-
Middle plate: 2.5 mm
-
Bottom plate: 2.5 mm
-
Keystone: 5 mm
-
Side plates: 2 mm
-
CNC side plates: 5 mm
-
Propeller size: 5"–5.1"
-
Material: T700 carbon fiber
-
FPV cam spacing: 19 mm / 20 mm
-
Weight (with TPU parts): 186.4 g
-
Color: Black
-
Total dimensions: 190 mm × 136 mm
-
Wheelbase: 225 mm
-
Stack mounting holes: 20×20 mm / 30.5×30.5 mm (M3)
-
VTX mounting holes: 20×20 mm / 25.5×25.5 mm (M2)
Package Includes
-
1× Volador II VD5 Frame Kit
(includes all screws, standoffs, TPU parts, and accessories)
