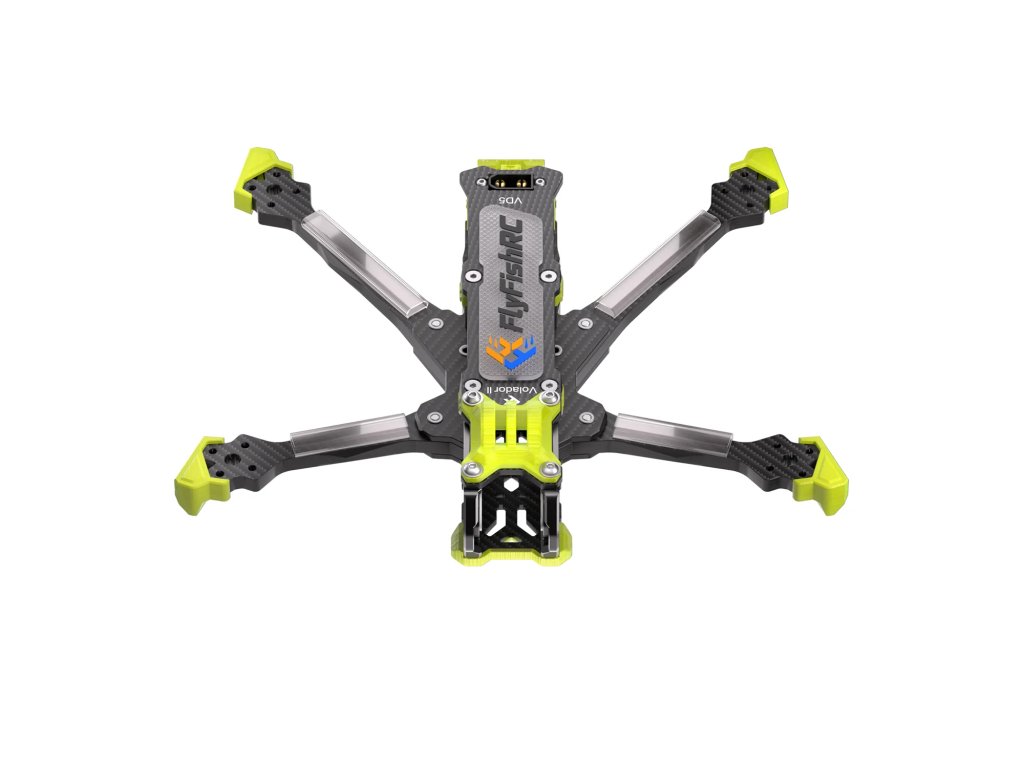

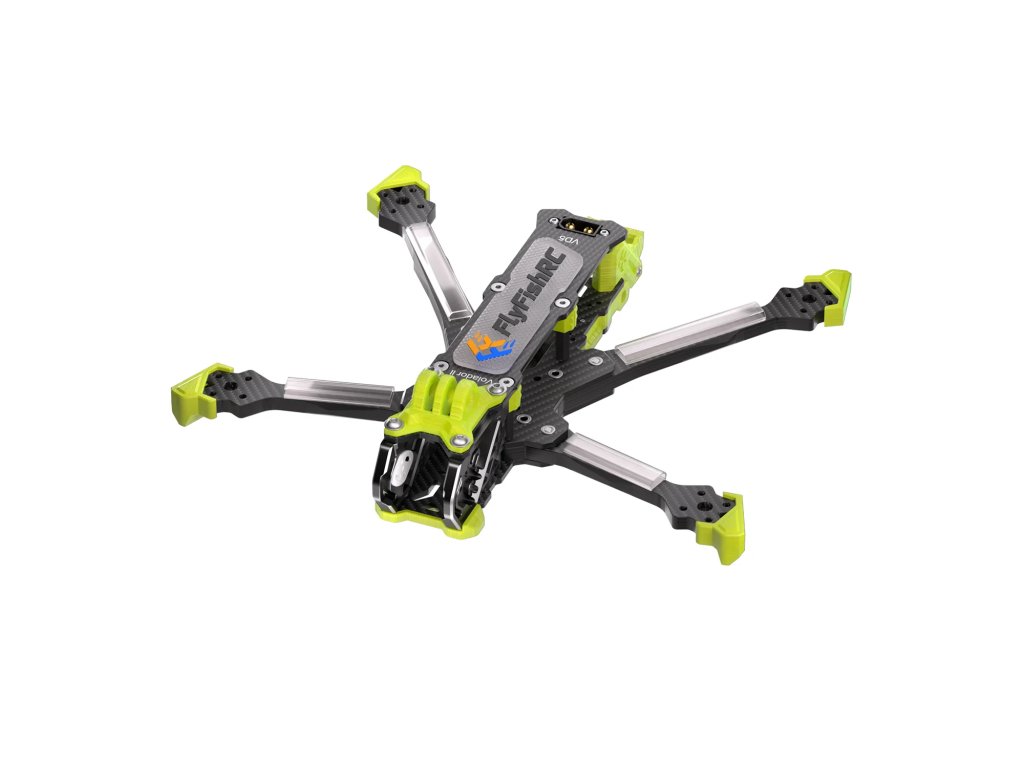

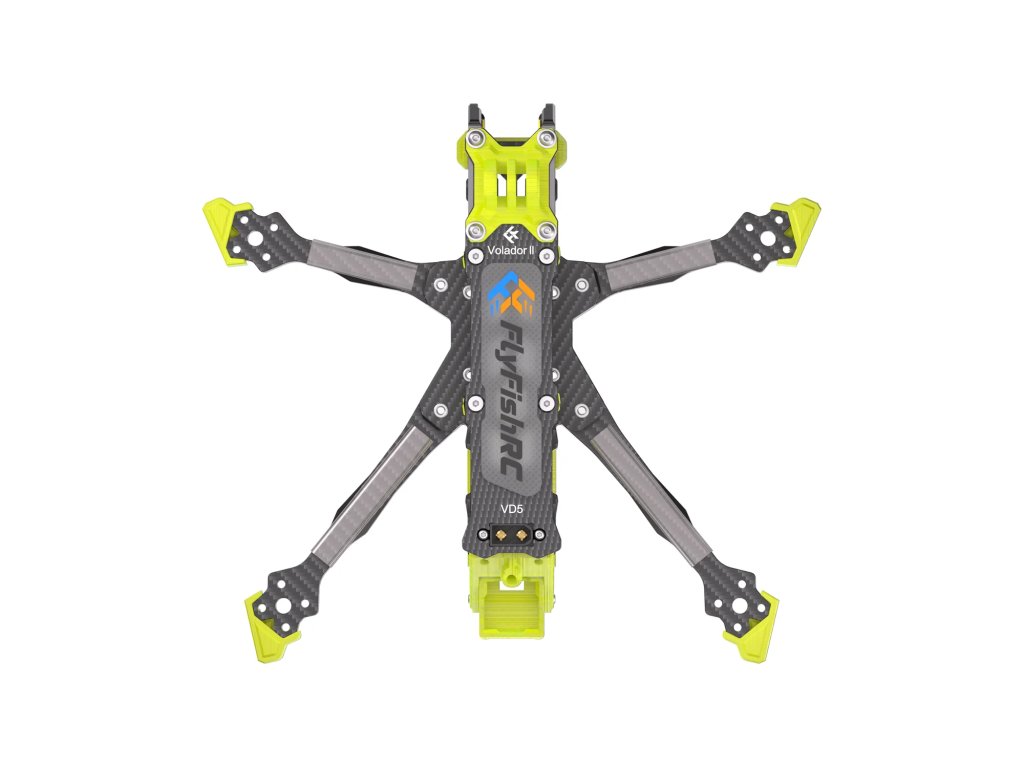

Volador II VD5 O3 Deadcat FPV T700 Frame

Product detailed description

Volador II VD Frame offers the popular Deadcat style configuration with no props in view. It is compatible with various analog and HD systems on the market, and independently detachable arms along with a sturdy structure minimize frame resonance.

Specifically designed for the installation of the DJI O3 Air Unit camera (Walksnail Moonlight, etc.), there is a silicone shock-absorbing insert that eliminates any possible jello in your DVR and is compatible with cameras in 19mm/20mm format. The frame is made from high-strength CNC aluminum alloy parts and the highest quality T700 carbon sheets, with an ultra-smooth surface and uniform chamfered edges. The redesigned battery pad with a grid provides an even better anti-slip effect and uses stronger adhesive. The XT60 connector integrated at the rear of the frame eliminates the likelihood of power cable damage caused by prop strikes during a crash and allows for easy single-hand battery connection.

The frame comes with all the necessary accessories for both analog and HD builds and is equipped with hardware treated with Loctite thread-locking agent for enhanced reliability. The tight structure fully minimizes resonance.

V2 Features:

• High-quality T700 carbon fiber
• Sturdy structure minimizing resonance
• New CNC aluminum plates protecting the camera
• Silicone shock-absorbers for the O3 Air Unit eliminating vibrations (jello effect)
• Integrated XT60 connector for enhanced safety and reliability
• High-quality TPU parts
• Innovative anti-slip battery pads
• New motor wire protection tubes
• Compatibility with 19/20mm cameras
• Comes with all accessories needed for analog and HD builds
• 12.9-grade strength hardware with Loctite thread-locking agent pre-applied
• High electronics compatibility

VD5 Specifications:

• Arm thickness: 6mm
• Top plate thickness: 2.5mm
• Middle plate thickness: 2.5mm
• Bottom plate thickness: 2.5mm
• Keystone thickness: 5mm
• Side plate thickness: 2mm
• CNC side plate thickness: 5mm
• Propeller size: 5~5.1 inches
• Material: T700 carbon plate
• FPV cam spacing: 19mm/20mm
• Weight: 186.4g (with TPU parts)
• Color: Yellow
• Total dimensions: 190mm * 136mm, Wheelbase: 225mm
• Stack mounting holes: 20mm * 20mm / 30.5mm * 30.5mm (M3)
• VTX mounting holes: 20mm * 20mm / 25.5mm * 25.5mm (M2)
