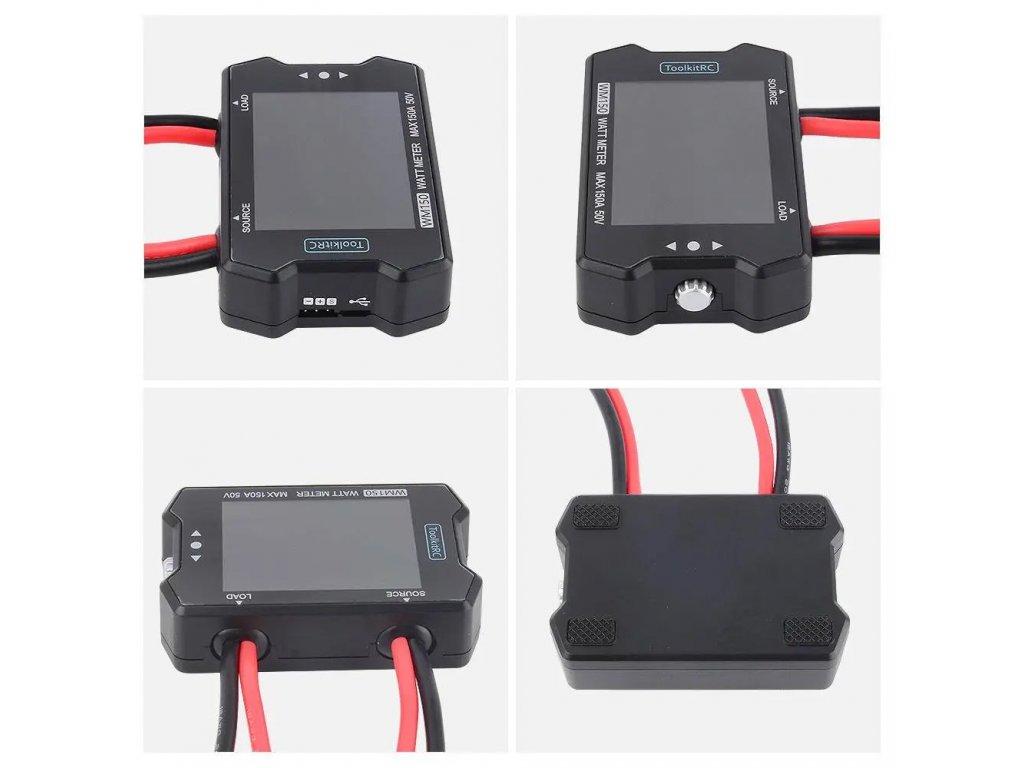

ToolkitRC WM150 Advanced Watt & Power Meter

Product detailed description

The WM150 Watt Meter Toolkit is an essential tool for all your electric flights! It is equipped with a 1.0-50.V power supply, supports PWM signal and has a 2.4 inch color display.

Features:

• ToolkitRC WM150 is a wattmeter that is capable of testing voltage, power, current data of electrical equipment such as servo, ESC, battery etc.

• Power supply 1-50V, maximum current is up to 150A, accuracy is accurate to 10mA

• Support PWM signal, 1us accuracy, pulse width is changeable by adjusting the button

• Automatically to change the capacity unit, when it is lower than 1A, the unit-display is in mA, when it is higher than 1A, the unit-display will change to A

• The wattmeter also supports display of working time

• USB firmware update, easy operation


Specifications:

• Input voltage: 1-50V

• Current (Max): 150A (Accuracy: 10mA)

• USB: 5.0V@1A (USB3.0 firmware update)

• Output: PWM 1000-2000us@50Hz

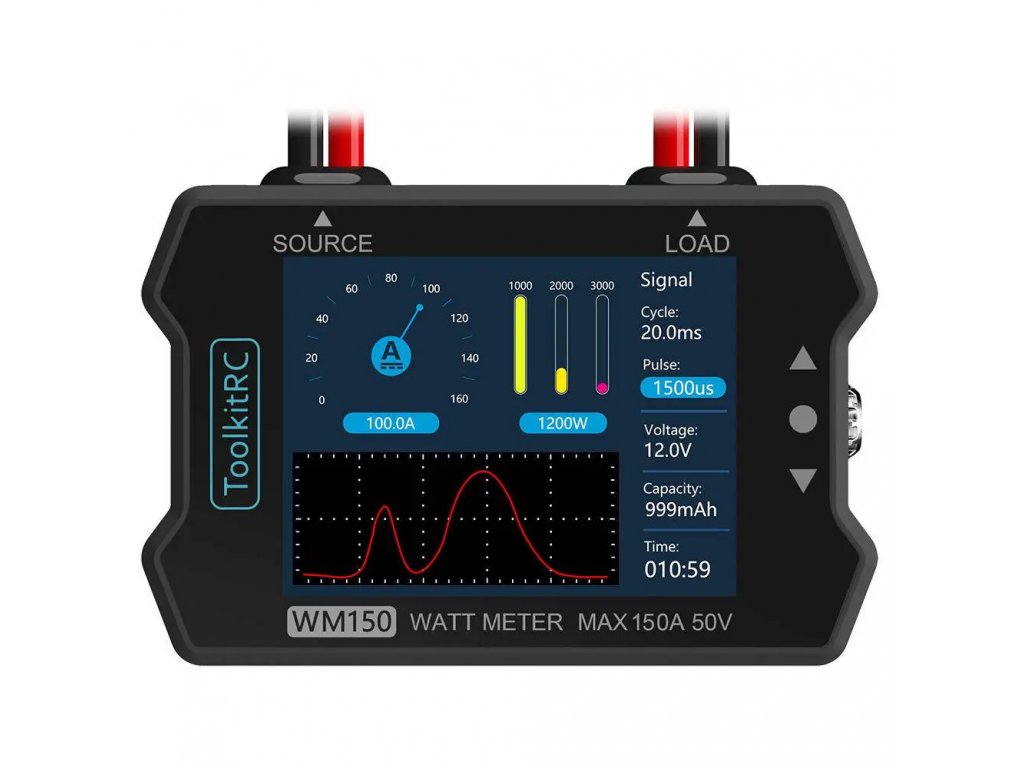

• Display: TFT 2.4" LCD screen (320*240 resolution)

• Product Size: Approximately 80*54*23mm.

• Approximately 87*87*28mm.

• Net weight (approximately): 120 g

• Gross weight (approximately): 140 g

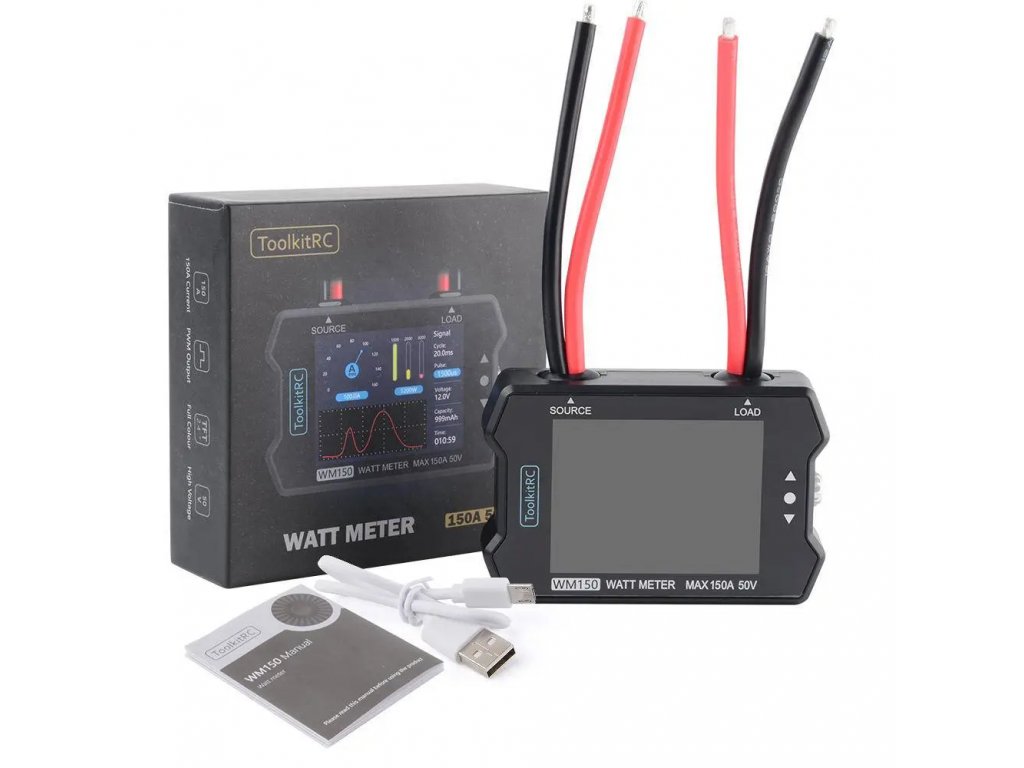

Package Contents:

• 1 x ToolkitRC WM150 Watt Meter

• 1 x USB cable

• 1 x Manual

Manual: WM150 Manual V1.0
