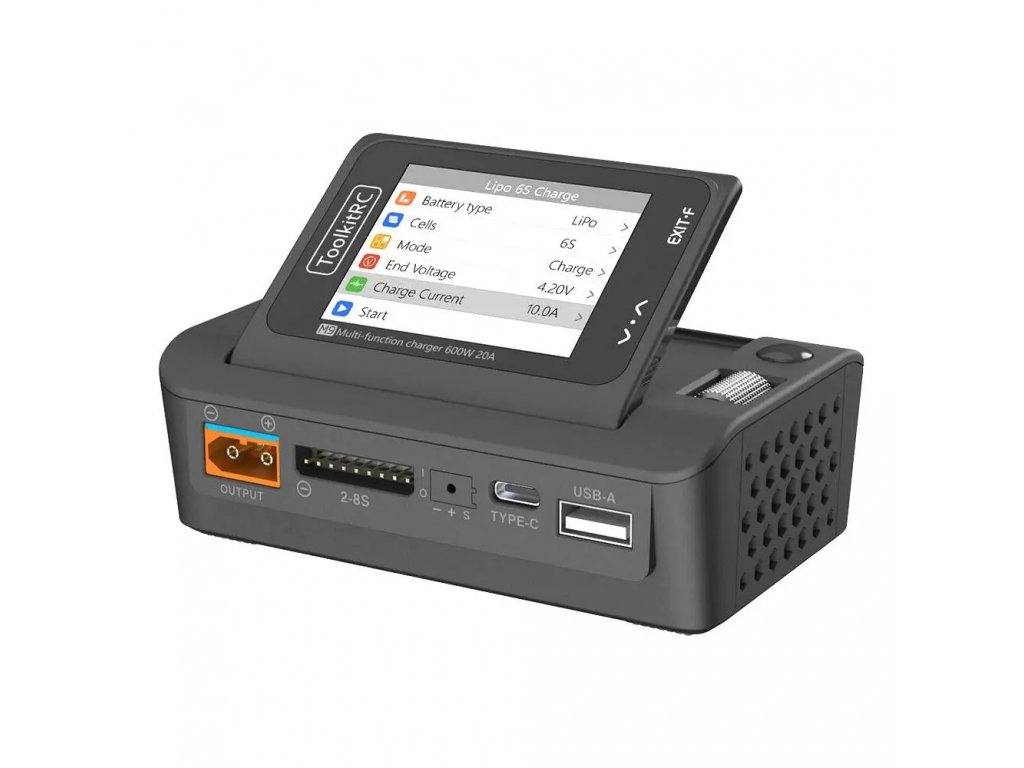

ToolkitRC M9 600W 20A 1-8S charger

Product detailed description

The acclaimed ToolkitRC M9 is a multifunctional charger with many features. This device features 600W of power, Dual USB fast charging with a maximum 65W USB-C/USB-A power and a widescreen IPS colour display. The charger has a signal tester, battery meter, and power meter for all your metering needs! The integrated voice system provides feedback.

Features

• Customizable voice alerts and welcome screen

• DC output - 600W 2-8S

• 2.4" multi-angle color display

• Dual USB fast charging

• Balance charger

• Signal Source

• Battery Meter

• Signal Tester

• Wattmeter

Manual: HERE

Specifications:

• USB A+C Output: 5-20V@65W PD QC PPS AFC SCP

• Power: 1.0-20A@1-35V Mode:CC+CV


Meter:

• SBUS: 880-2200us*16CH @20-100Hz

• PPM: 880-2200us*8CH @20-50Hz

• PWM: 880-2200us @ 20-400Hz

• Battery Type: LiPo LiHV LiFe Lion LTO@1-8S


Output:

• SBUS: 880-2200us*16CH @74Hz

• PWM: 500-2500us @ 20-1000Hz

• PPM: 880-2200us*8CH @50Hz


Discharging power:

• 0.1-20A@600W Recycle External

• 0.1-3A@20W Normal Mode

• Charging Power: 0.1-20A@600W

• LCD: 2.4*IPS RGB 320*240 pixels

• Balance current: 1000mA@4.2V

• ESC: 1-20A@1-35V MAX 600W

• NiMh@1-20S Pb@1-10S

• Voltage: 1.0V-5.0V@1-6S

• Input: 7-35V

Package Contents:

• 1x ToolkitRC M4 Pocket 80W 5A 1-4S Compact DC Charger
