Product detailed description
The TBS CROSSFIRE is a long range R/C system that with -130 dB sensitivity, full diversity on the RF side and small receivers for FPV drones (aircraft, etc.) incorporates state of the art technology to provide excellent connectivity and the latest RF technology for your remote control. With firmware from V1.20 onwards, bi-directional serial modem is available on CH7 and CH8 channels of the diversity receiver. This allows serial protocols such as order. MavLink, to operate without the need for a separate RF modem. The telemetry range is up to 30 km.
Features:
- Long range, adaptive and robust RC control system for your aircraft/copter.
- Two-way communication link with full telemetry
- self-healing & frequency hopping (DSSS, FHSS)
- Adaptive bandwidth control and optimization of range and transmit power
- Serial modem capable of transmitting MAVLink or other serial protocols
- very easy installation and configuration thanks to built-in display
- Low latency, 150 Hz update rate (3x faster than typical RC systems)
- two receiver models: 8ch Diversity Rx, 8ch PPM Mini-receiver incl. SBUS (4g)
- possibility to use many crossfire systems at the same time (10 or more)
- selectable RF power from 10mW to 1W (beware of local limitations!)
- external input for head-tracking
- Transmitter LED shows link status, OLED display makes configuration easier
- micro receiver for smaller drones
- software update via RF link
Specifications:
- Frequency bands: 868 MHz (EU, Russia) / 915 MHz (USA, Asia, Australia)
- Input voltage: 3.5 - 13V
- Power: 1.1W (@ 10mW) - 3.2W (@ 2000mW)
- dimensions: 55 x 89 x 15 mm
- weight: 76g
Package contents:
- TBS Crossfire Transmitter
- TBS Crossfire JR Adapter

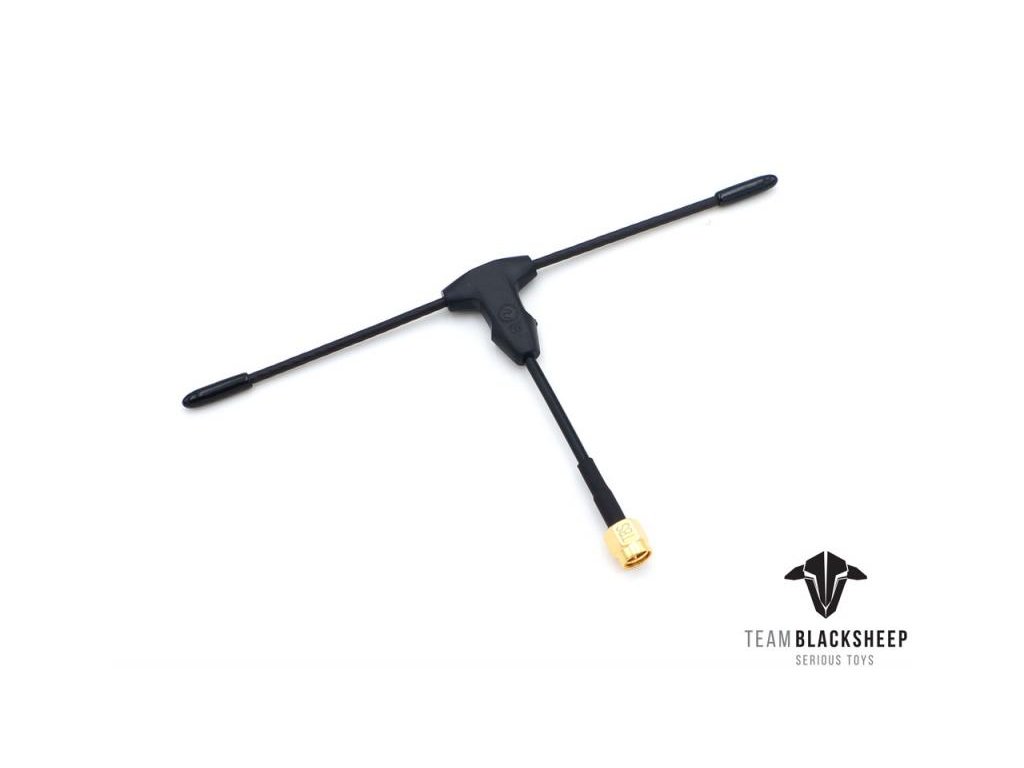

- TBS Crossfire Stock Tx Antenna V2
- Crossfire Futaba cable
- Crossfire Graupner cable
- Crossfire PWM Pigtail

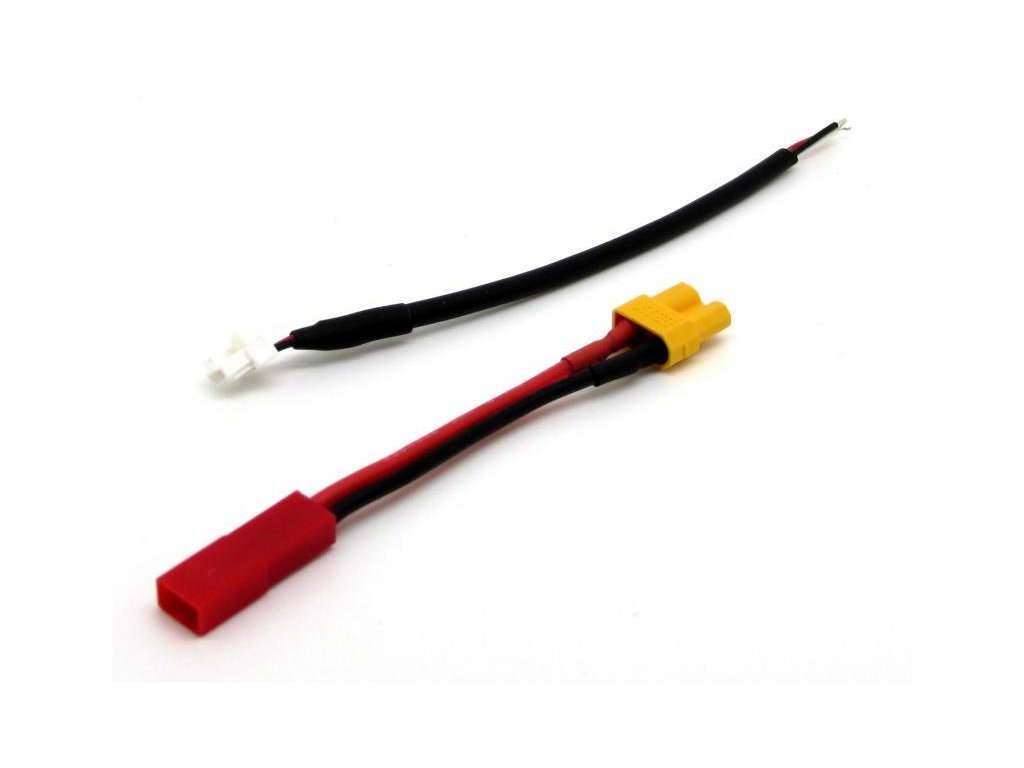

- Crossfire JST to XT30 cable
