TBS CROSSFIRE MICRO TX V2
Related products
Product detailed description
The TBS CROSSFIRE is a long range R/C system that with -130 dB sensitivity, full diversity on the RF side, and small receivers for FPV copters (aircraft, etc.) incorporates state-of-the-art technology to provide excellent connectivity and the latest RF technology for your remote control.
Features:
- Long range, adaptive and robust RC control system for your aircraft/copter.
- Two-way communication link with full telemetry
- self-healing & frequency hopping (DSSS, FHSS)
- Adaptive bandwidth control and optimization of range and transmit power
- Serial modem capable of transmitting MAVLink or other serial protocols
- Low latency, 150 Hz update rate (3x faster than typical RC systems)
- Two receiver models: 8ch Diversity Rx, 8ch PPM Mini-receiver incl. SBUS (4g)
- possibility to use many crossfire systems at the same time (10 or more)
- selectable RF power from 10mW to 250mW (beware of local limitations!)
- Transmitter LED displays link status, OLED display makes configuration easier
- micro receiver for smaller drones
- software update via RF link
Specs:
- Frequency bands: 868 MHz (EU, Russia) / 915 MHz (USA, Asia, Australia)
- Input voltage: 3.5 - 13V
- Power consumption: 1.1W (@ 10mW) - 2W (@ 100mW)
- Dimensions: 65 x 48 x 22 mm
- weight: 48g
Package contents:

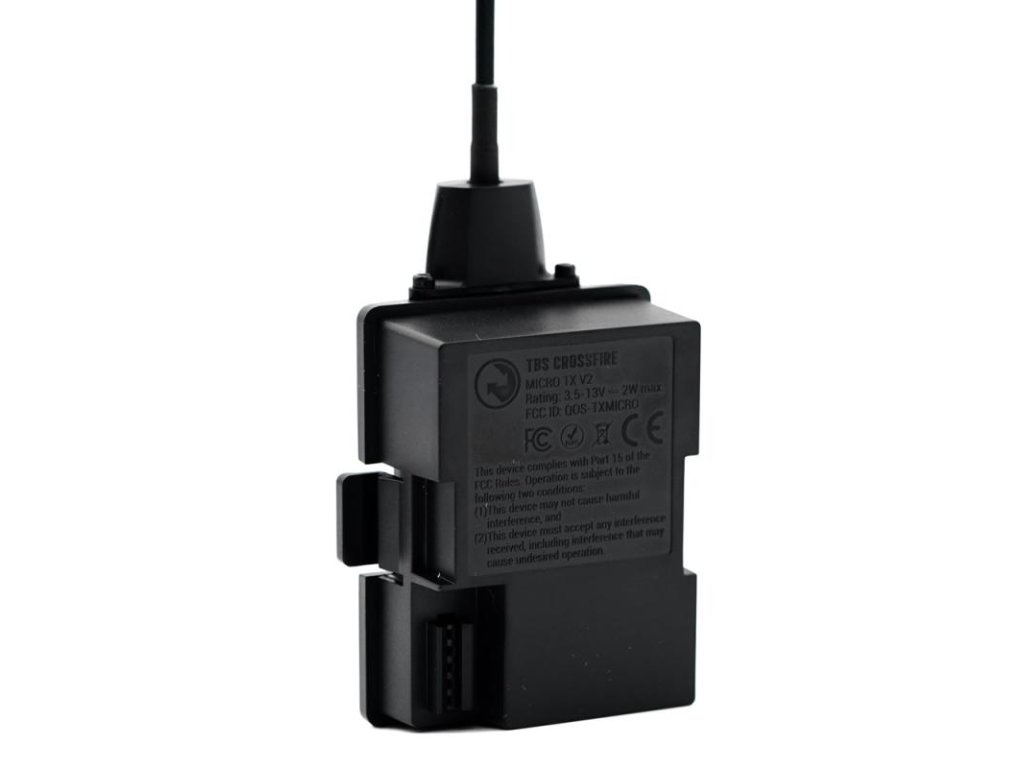

- TBS Crossfire Micro Transmitter (JR module)
- TBS Crossfire Stock Tx Antenna V2
