TBS CAIPIRINHA 2 (PNP) - FPV auto wing

Product detailed description

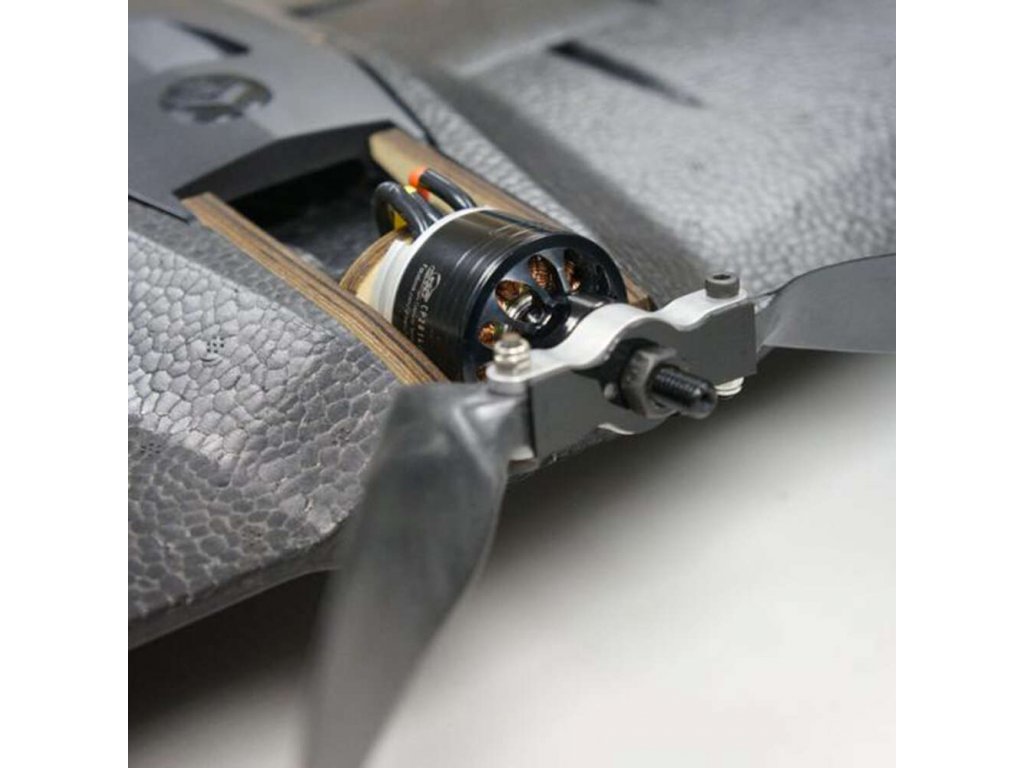

TBS CAIPIRINHA V2 - long range wing based on Wipeout by HappyFlyers from Switzerland! A polycarbonate battery bay, push-to-open equipment bay, PDB with up to 3 battery entries, cable ducts that run across the entire wing, a huge 6mm plywood lined center section are just some of the innovations that make this wing stand out from the rest. The ultra sleek and aerodynamic finish ensures that no energy is wasted and the very good glide makes thermals or long distance flying very enjoyable. The PNP kit from TBS features high quality, digital metal gear servos, CP2814-1050kV Cobra motor, 50A HobbyWing ESC and high quality Aeronaut CAM Carbon folding propellers.

Description:

• Superior flight stability and durability

• Virtually indestructible EPP/plywood construction

• Pre-cut slots for camera, servo, battery, R/C receiver and video transmitter

• 2x push-to-open device positions for R/C and FPV electronics

• Pre-cut, sanded and coated ultralight elevons and bars


Package includes:

• CAPIRINHA 2 with all hardware accessories

• 2x Digital MG Servo 6kgf/cm, 5-6V

• Cobra CP2814-1050kV motor

• 50A HobbyWing Skywalker Wing ESC

• Aeronaut 10x6 folding propeller (centre CNC aluminium)

• All ready within limits. Final assembly about 2 hours.


Specifications:

• 36.5 inches / 93 cm wingspan!

• 1400 g AUW (including GoPro Session5 and battery)

• Flight time up to 90 minutes

• Range up to 75km


Battery:

• Recommended batteries: 4500mAh 4S - 6600mAh 4S, 20C or more

• RECOMMENDED size: 48 x 36 x 150mm, 525g

• MAX Size: 60 x 44 x 165 mm, 550g


RECOMMENDED FPV AND RADIO EQUIPMENT:

FPV camera: mini size
Video transmission:
5.8 GHz: TBS Unify Pro32 HV (MMCX) or FOXEER 5.8G REAPER EXTREME 2.5W 40CH VTX
Crossfire Micro Rx or Diversity Rx/ExpressLRS

Manual: tbs-caipirinha_2-manual
