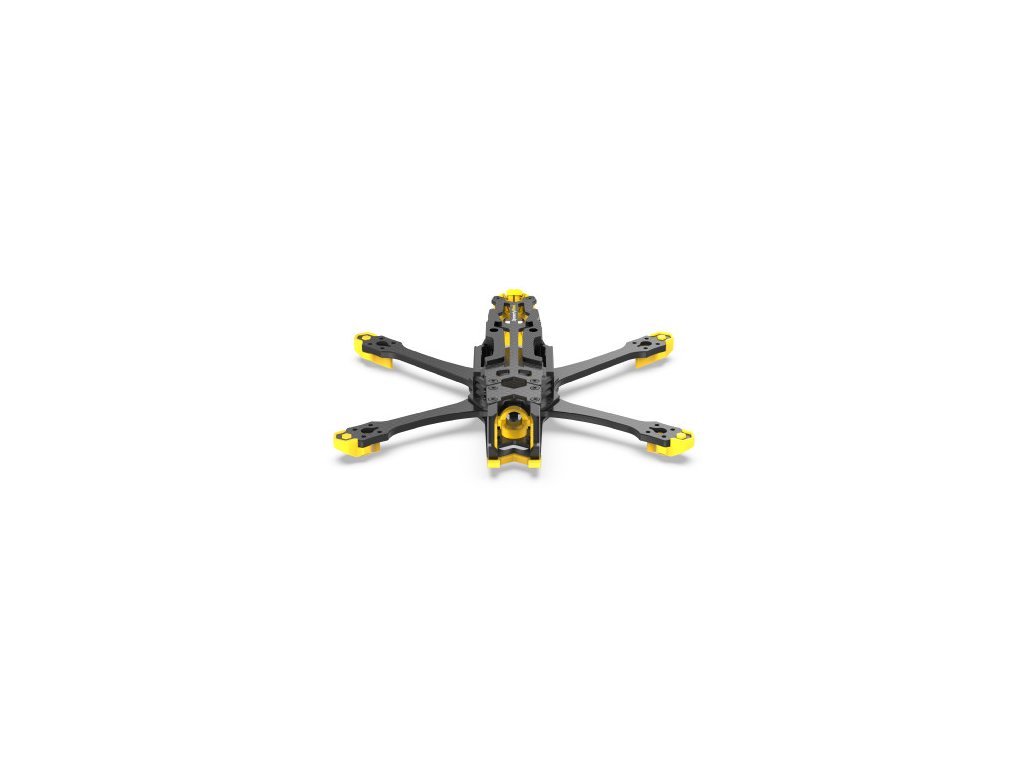

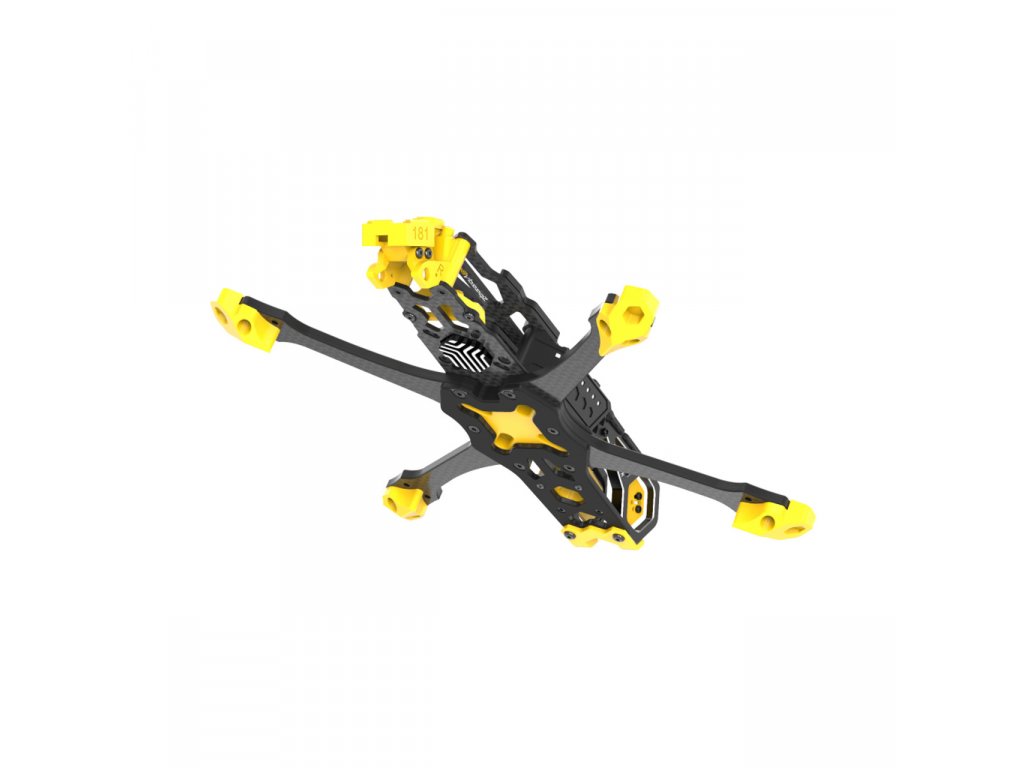

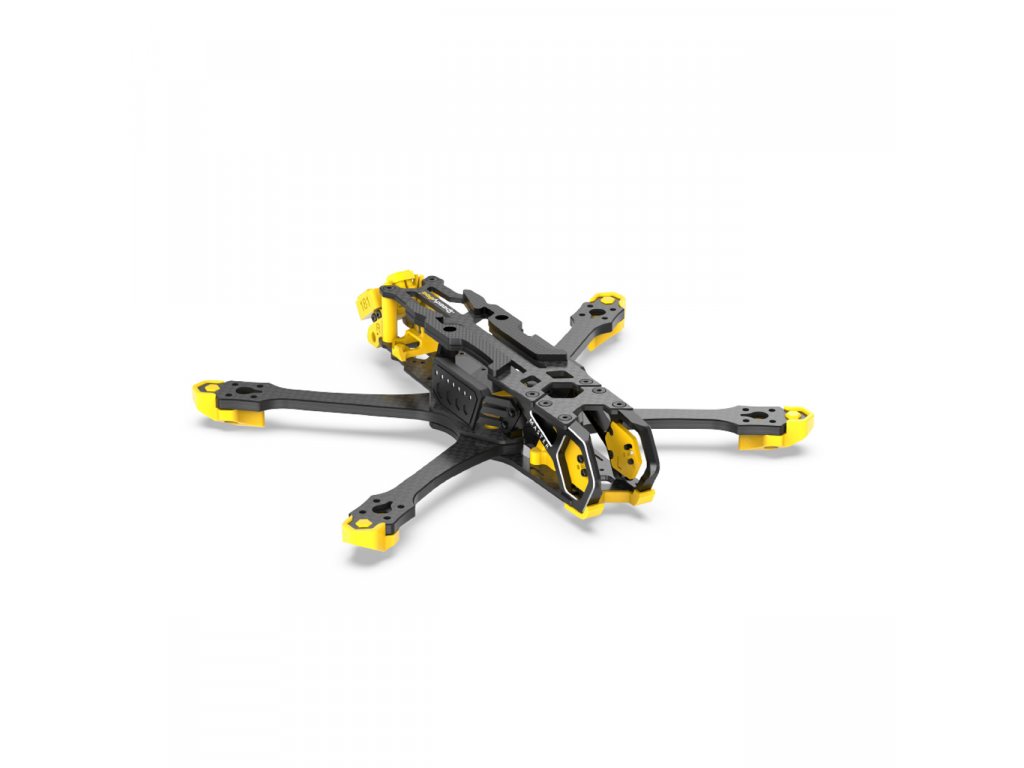

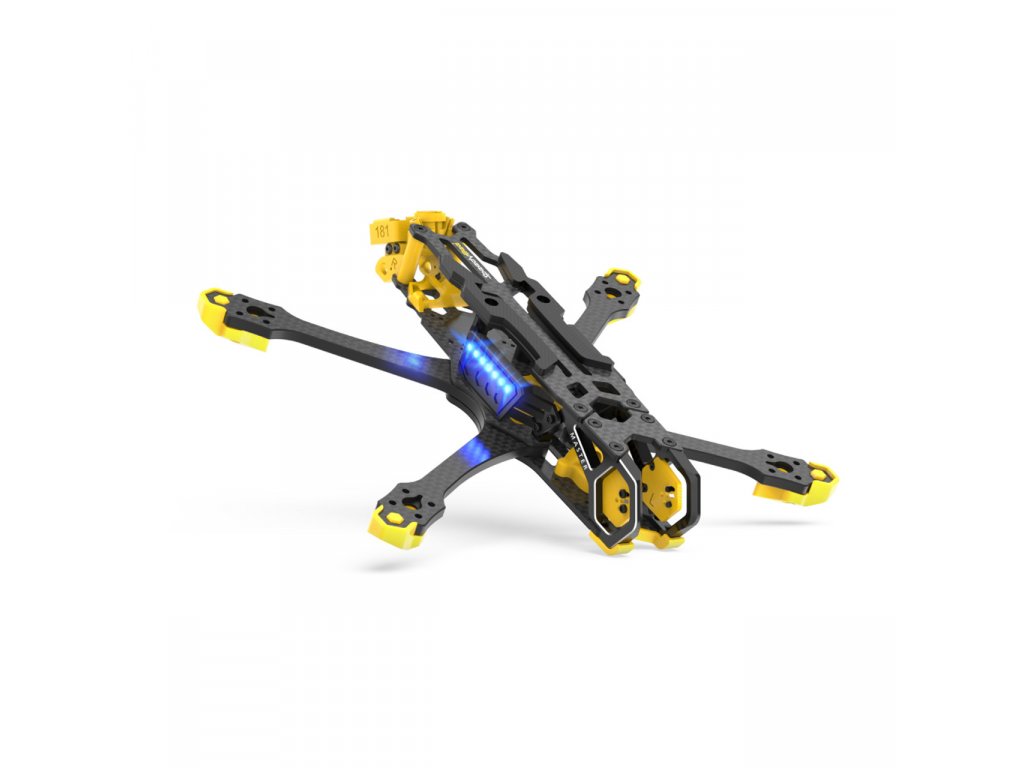

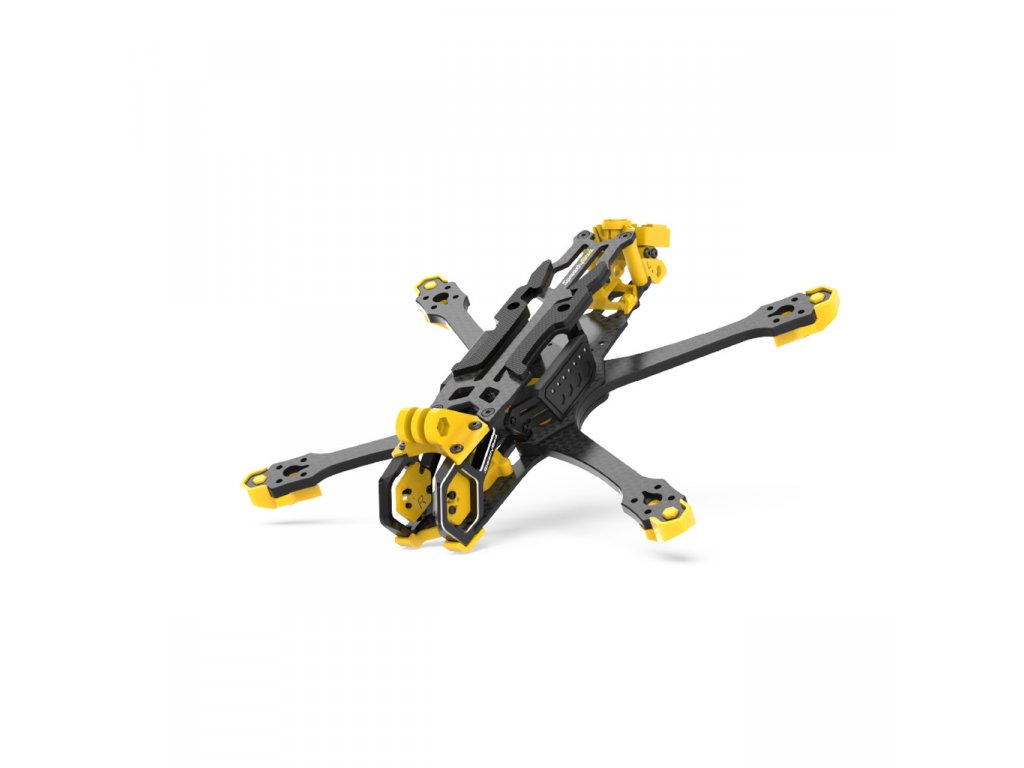

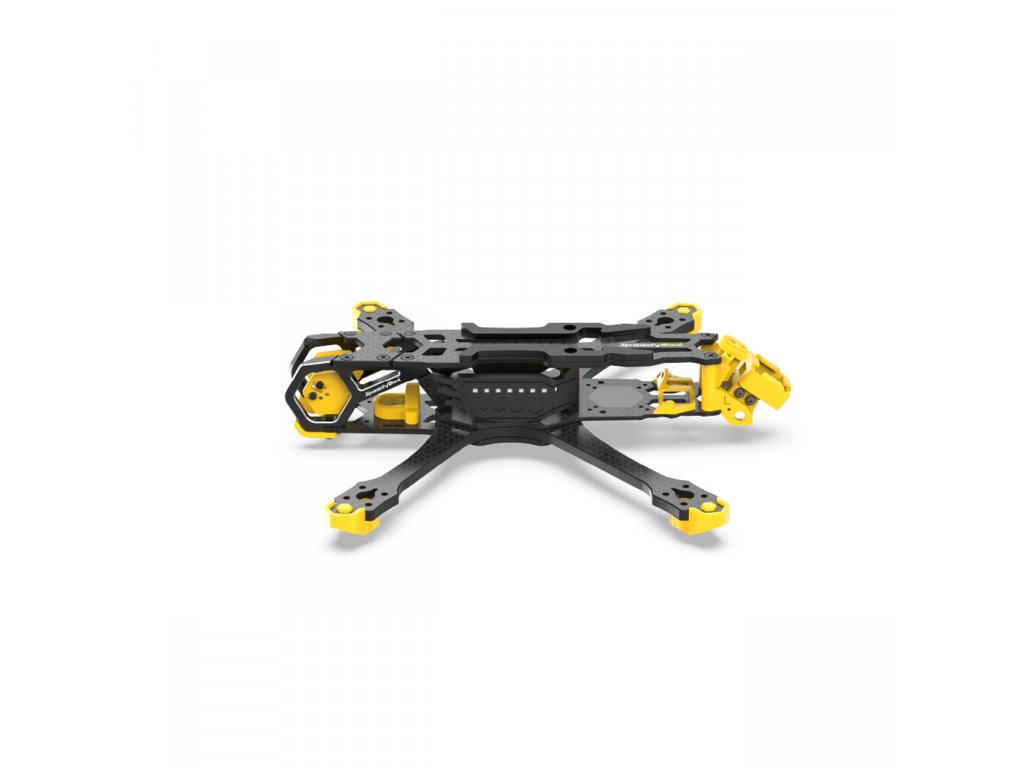

SpeedyBee Master 5 V2

Product detailed description

Designed to handle both film and free flying,the Master 5 V2's great Deadcat geometry places the flight controller closer to the center of gravity than other DC frames. An innovative anti-vibration structure dampens the effect of vibrations from the motors on the gyro, offering a stabilized operating environment. The quick-release design with 1.5 bolt diameter per arm makes assembly and disassembly easy. CNC honeycomb aluminum alloy FPV drone camera front cage provides better strength and appearance. In addition, the DJI O3' s integrated air unit also supports ND filters and replaceable side plates. The TPU side plate inside the CNC part helps dampen vibrations on the camera, and pilots can adjust it themselves to be compatible with multiple mounting holes. Underneath the VTX is a honeycomb-shaped aluminum alloy heatsink to improve FPV operational stability for both powerful analog VTX and DJI units.

Description:

• Weight about 140 g (including parts without 3D printing)

• Top plate thickness 2.5 mm (T300 3K)

• Thickness of middle plate 2 mm (T300 3K)

• Bottom plate thickness 2.5 mm (T300 3K)

• Shoulder thickness 5 mm (T300 3K)

• Camera side plate thickness 2 mm TUPC

• Anti-vibration layered structure hardness Yellow HB80, Translucent HB50

• 3D printed from yellow TPU

• Motor retaining ring spacing φ8mm

• Compatible propellers 5-5.1 inches

• Mounting holes for 16*16mm motors

• FC mounting hole 30.5×30.5(M3) & 20×20mm (M3)

• 7075 CNC aluminum alloy drone head

• Aluminum spacer 7075 M3*23mm*(6mm/4.7mm)、M3*23mm*(4.6mm)

• Inner installation height 23-30mm

• Standard antenna installation support SMA (single), O3 4mm, RunCam Link

• Standard GPS base size 18*18*8mm (other size requires additional purchase)

• Rear support mounting holes 20*20mm - 25.5*25.5mm - 30.5*30.5mm

• Including removable RGB LED protection plate

• Including motor wire protection

• Included 3D printed parts GOPRO base, condenser/buzzer, arm protector, 181GPS base, T-antenna base, TPU protection for CNC drone head, anti-vibration camera module
• TMB12A05 buzzer
