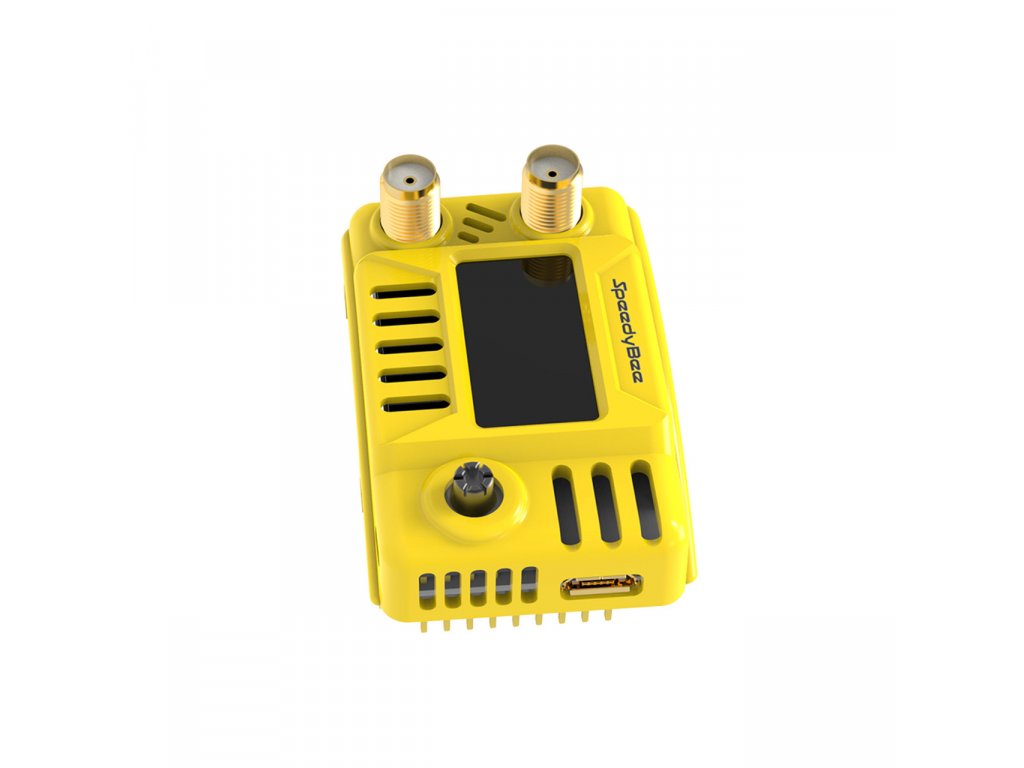

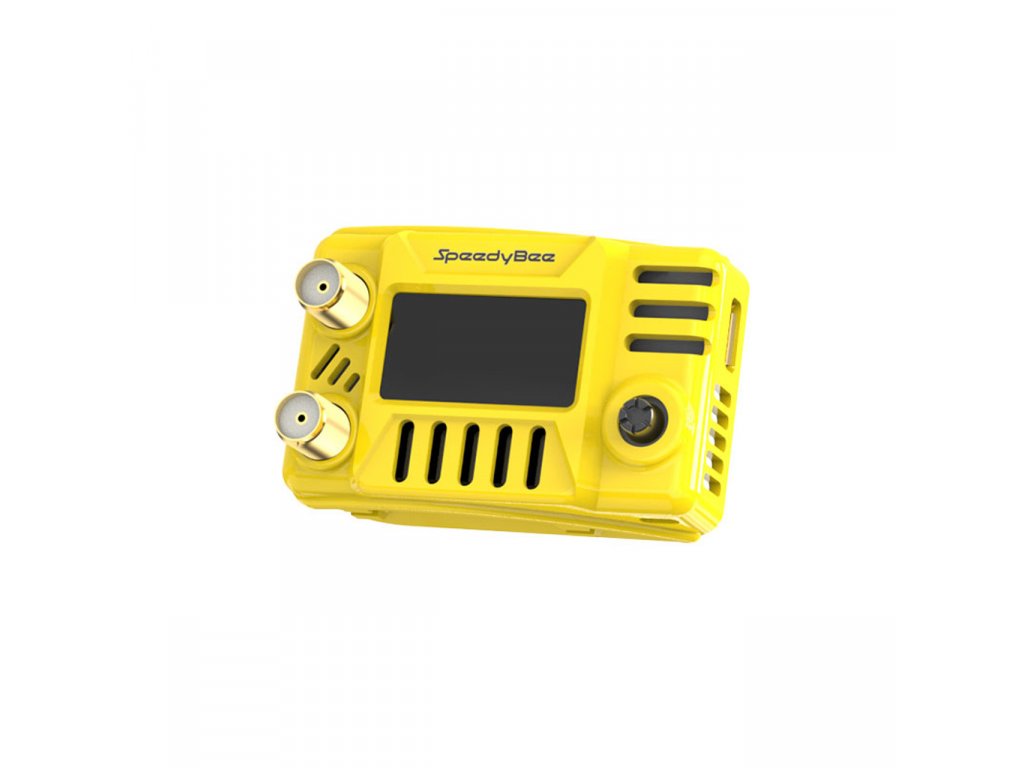

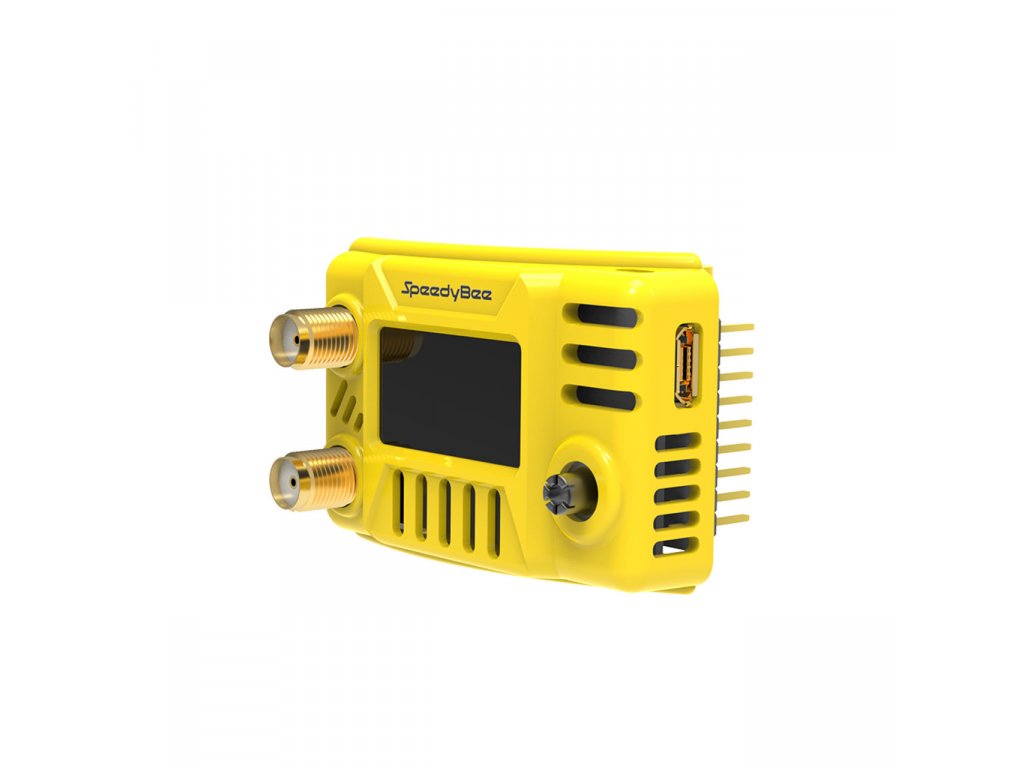

SpeedyBee 5.8GHz Goggles Receiver

Product detailed description

The SpeedyBee Goggles Receiver provides efficient power consumption at 5V and is compatible with a wide range of FPV goggles (Fatshark, Skyzone...) including support for multiple frequency bands. The receiver combines the signal from two receivers to achieve the best possible result for FPV drone video reception.

Description:

• 5V operating voltage with low power consumption (450mA@5V).

• Works with a variety of FPV goggles, including the Fat Shark Dominator series, HDZero and DJI Goggles (with adapter).

• Supports multiple frequency bands (A, B, E, F, R, L) with 48 channels.

• Compact size (51 x 34 x 17.8 mm) and light weight (32.8 g) for easy integration.


Specifications

• Operating voltage: 5V

• Operating current: 450mA @ 5V


Supported FPV Goggles:

• Fat Shark Dominator series including V1, V2, V3, SE, HD1, HD2, HD3, HDO, HDO2.

• HDZero: Supports HDZero FPV goggles analog conversion module.

• DJI: Supports DJI V1 and V2 Goggles (adapter board must be purchased when using DJI Goggles).

• Operating Frequency: Supports A, B, E, F, R and L bands with 48 channels from 5.3 GHz to 5.9 GHz.

• 51 x 34 x 17.8 mm

• Weight: 32.8g

Package includes:

• 1x receiver

EN Instructions
