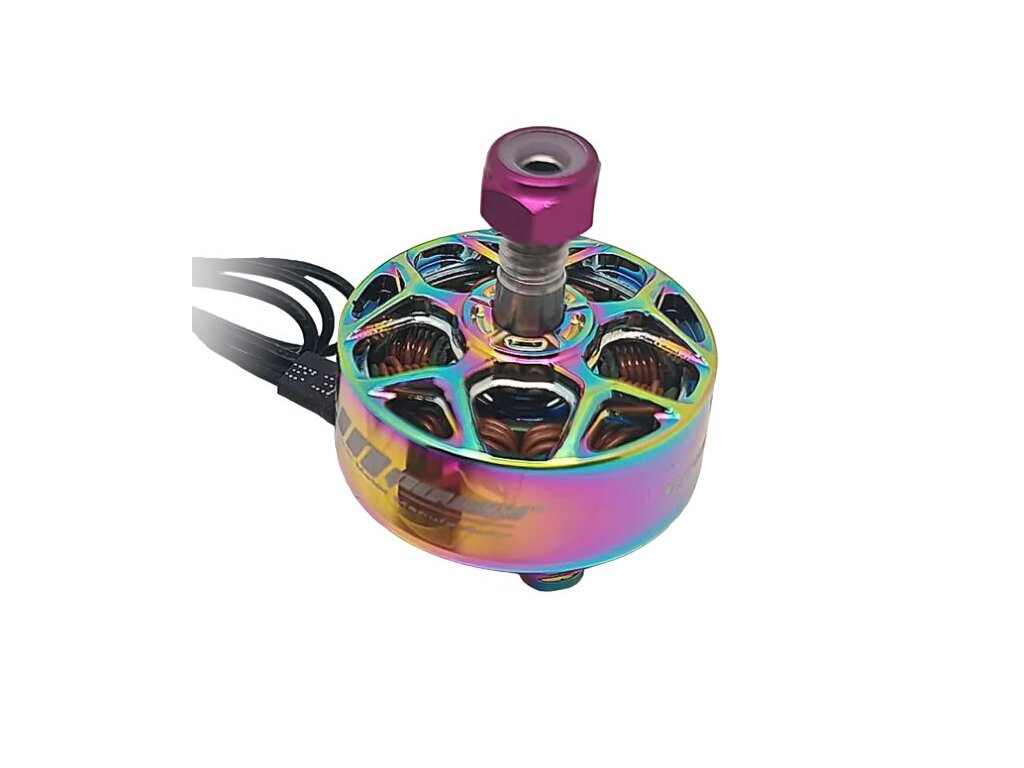

Rcinpower Wasp Major V2 22.6-6.6 2160KV Champion Edition Motor
Product detailed description
The Rcinpower Wasp Major V2 22.6-6.6 2160KV Champion Edition is a high-end motor designed for racing and freestyle FPV drones that delivers stunning performance, high durability and efficiency. This special Champion Edition version provides extremely fast response, high thrust and reliability, making it ideal for pilots who want to compete at the highest level.
This motor has been designed with a focus on maximum performance while maintaining light weight, making it the perfect complement for FPV racing and freestyle drones. With a KV rating of 2160 and the ability to use up to 6S LiPo batteries, the motor offers fast acceleration and peak performance to handle even the most demanding race courses and freestyle flying maneuvers.
Key Features:
- Champion Edition.
- Wide voltage range.
- High durability: High quality materials such as strong N52H magnets and NSK bearings make the motor highly resistant to high temperatures and wear.
- Lightweight design: reduced motor weight for better maneuverability and faster maneuvering.
- Powerful thrust: 2160KV provides a balanced mix between speed and thrust, making it ideal for fast racing and dynamic freestyle flying.
Technical Specifications:
- Rcinpower Wasp Major V2 22.6-6.6 2160KV Champion Edition.
- HP rating: 2160KV
- 4S- 6S LiPo (14.8V - 22.2V)
- Max RPM at 1V: 2160 RPM
- Motor Dimensions:
- Diameter: 27.5 mm
- Height: 18.8 mm
- Weight: approximately 29.5 g
- Color: Symphony color
- Magnets: Strong N52H magnets, high temperature resistant
- Stator: 0.15mm laminated stator for better electrical efficiency
- Bearings: High quality Japanese NSK bearings for smooth operation and long life
- Motor shaft: 5mm hollow hardened steel shaft
- Mounting holes: 16x16mm M3 (standard spacing for FPV motors)
- Recommended propellers: 5" - 6" propellers for best performance
- Maximum current: 35A (depends on battery voltage and propellers)
- Cooling and Durability: Designed for efficient cooling and durability at high temperatures, allowing operation during intense flying.
Example of use:
The Rcinpower Wasp Major V2 22.6-6.6 2160KV Champion Edition motor is the perfect choice for experienced FPV pilots looking for high performance for high level freestyle flying and racing. This engine offers a great compromise between speed, acceleration and efficiency, allowing for great maneuverability on challenging courses and fast aerobatic flying.
Typical use scenario:
-
FPV racing:
- With a rating of 2160KV, this motor provides excellent RPM for fast acceleration, allowing pilots to reach high speeds and maneuver between obstacles.
- The low weight of the motor results in greater efficiency and better handling, which is key to winning races.
-
Freestyle flying:
- The engine is designed to handle demanding manoeuvres. The lightweight design and high efficiency of the engine allow for dynamic and smooth aerobatic flying.
- When used with 5" or 6" propellers, the motor provides enough thrust for demanding maneuvers while maintaining a light weight for greater control of the drone.
Price per 1pc
