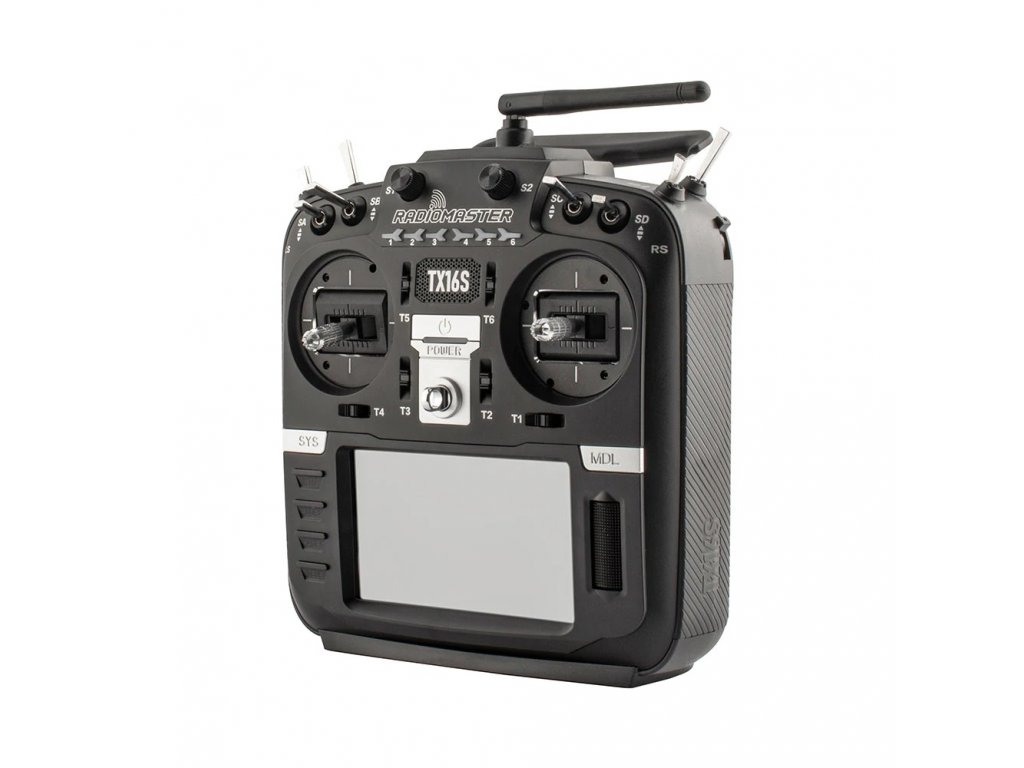

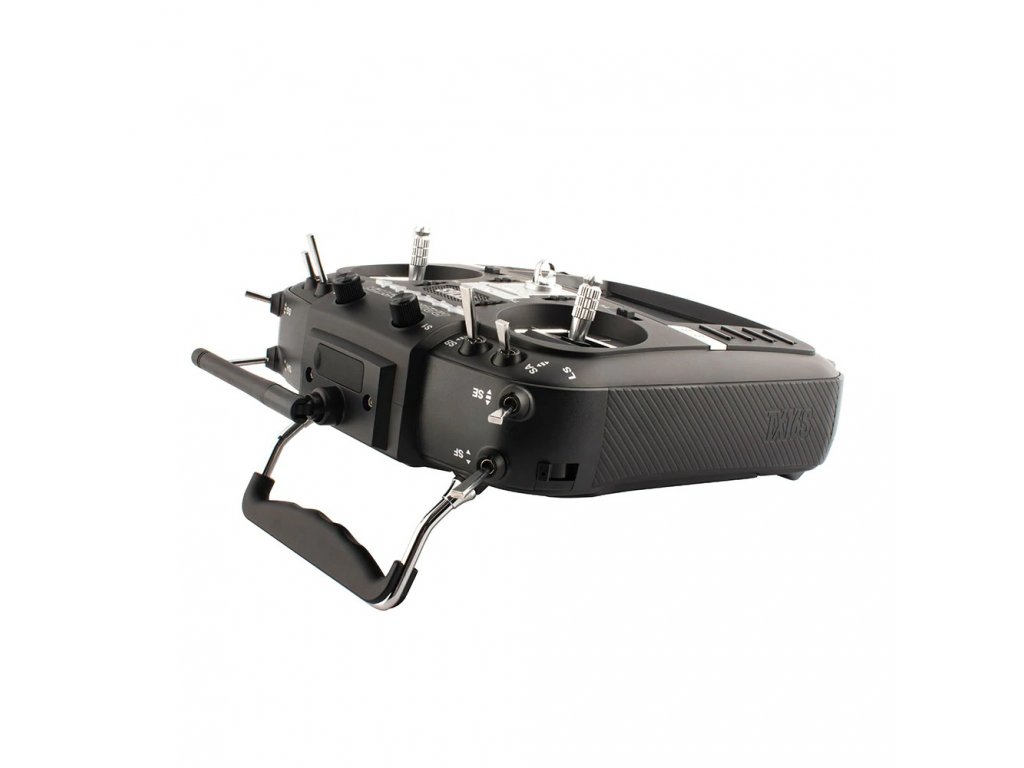

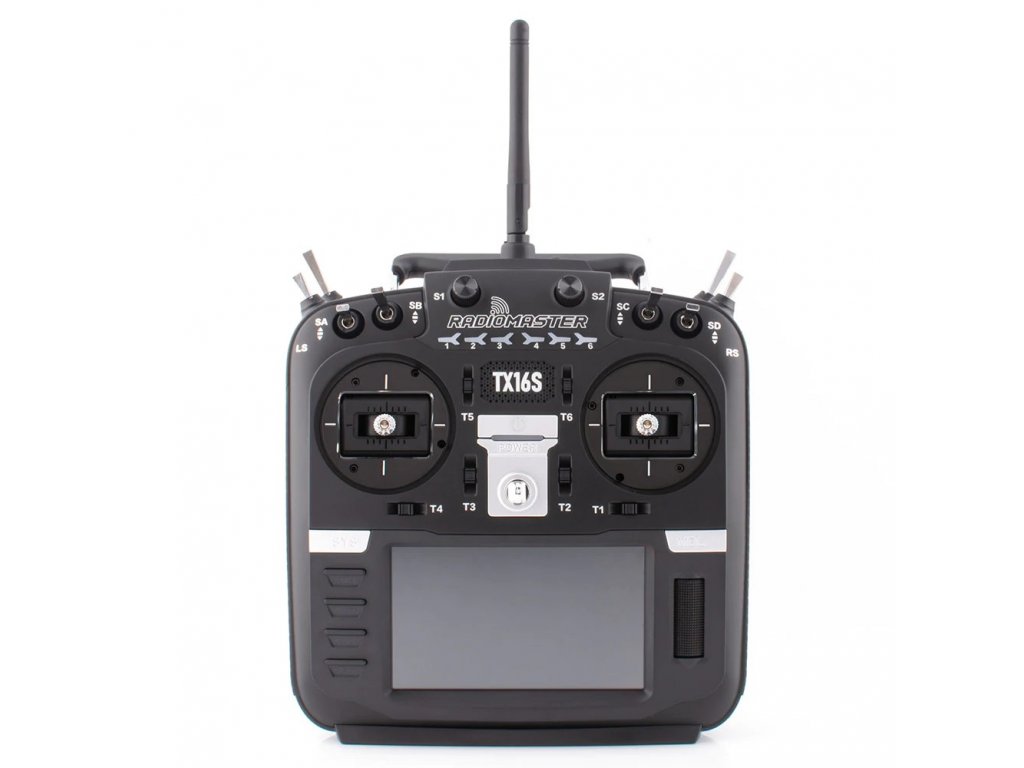

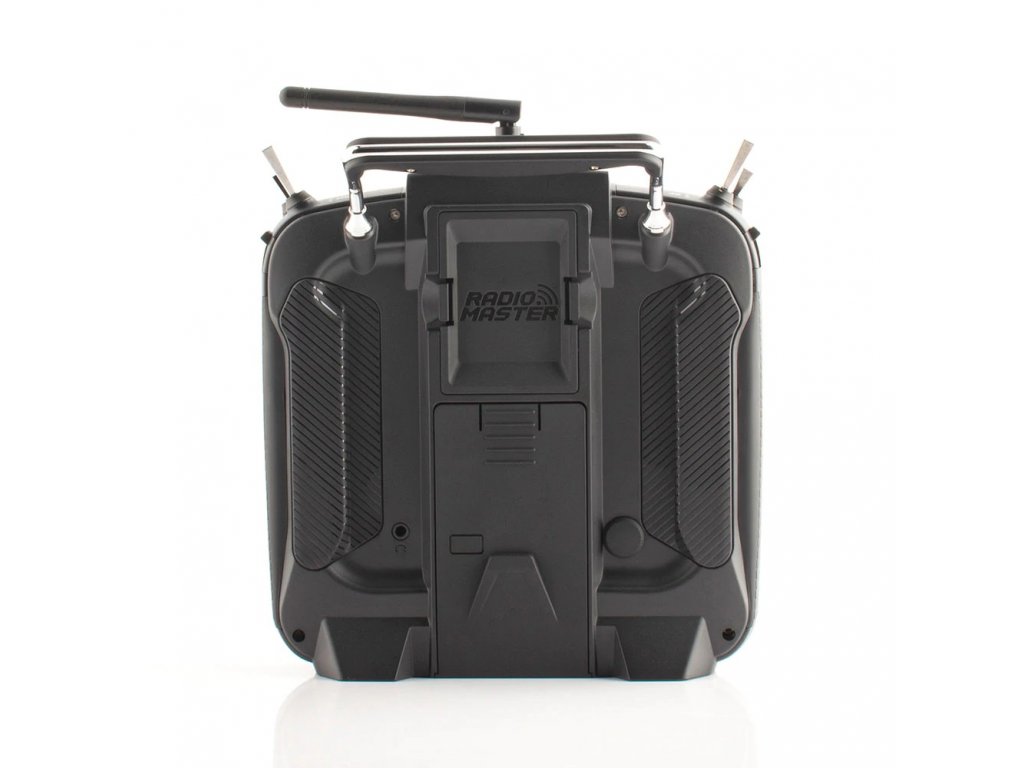

Radiomaster TX16S Mark II Radio Controller

Product detailed description

New model of popular RC radio with 4in1 multiprotocol in MARK II version. Improved internal circuitry and optimized power supply. New charging circuit with integrated reverse polarity protection. This optimized charging circuit now allows higher charging power up to 2.2A via USB-C connector. Rear audio jack provides headphone output. V4.0 Gimbal with improved centering and thermal stability (same circuitry as AG01). Optional high/low rear grips included for improved ergonomics. Redesigned battery cover for better battery access. Trainer socket changed to standard TRS 3.5mm socket. Improved internal plastics for longer life.

Specifications

• Dimensions: 287 x 129 x 184 mm

• Weight: 750 g (without battery)

• Transmission frequency: 2.400GHz-2.480GHz

• Transmitter module: 4-in-1 internal multiprotocol module (CC2500 CYRF6936 A7105 NRF2401)
• Transmit power: 4-in-1 internal multiprotocol module: Max 100 mw (protocol dependent)

• Antenna gain: 2db (transmit power adjustable)

• Operating current: 400mA

• Operating Voltage: 6.6-8.4v DC

• Remote control distance:> 2 km @ 22 dbm

• Radio Firmware: EdgeTX

• Module Firmware: Multiprotocol module (4IN1) -OR ExpressLRS (ELRS)

• Channels: Up to 16 channels (depending on receiver)

• Display: 4.3-inch TFT full-color touchscreen display with 480*272 resolution

• Gimbal: Hall effect sensor V4.0 with aluminum housing

• Module Bay: JR compatible module bay

• Upgrade Method: Supports USB-C online/offline upgrade to SD card

• EdgeTX and OpenTX support

• EdgeTX is installed by default (touch screen)

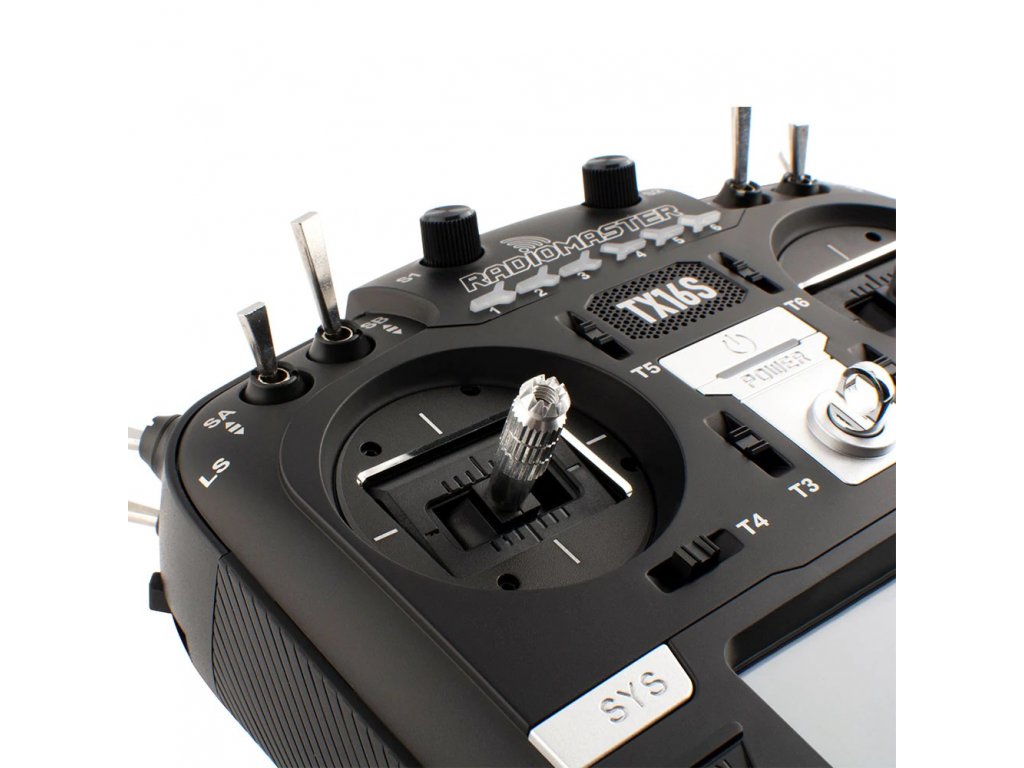

V4.0 HALL GIMBALS

• Standard version with V4.0 Hall Gimbals, same chipset as AG01, optimized Hall sensor circuitry, improves center placement and temperature stability. Fully adjustable

External module socket

• TX16s natively supports Team Black Sheep MicroTX or ELRS HappyModel modules as well as Namimno in CRSF mode with LUA scripts. Best of all, the TX16s Internal 4-in-1 Multi-protocol module allows you to leave the MicroTX installed and switch between internal RF and Crossfire using the software, no more swapping modules.

Upgraded design

• Redesigned faceplate with improved fit and finish

• Improved S1/S2 knobs with center stops

• 4.3" IPS Color Display - TX16s features a bright and clear 4.3" IPS color display for easy and convenient setup and operation of the model with adjustable brightness to suit all conditions.

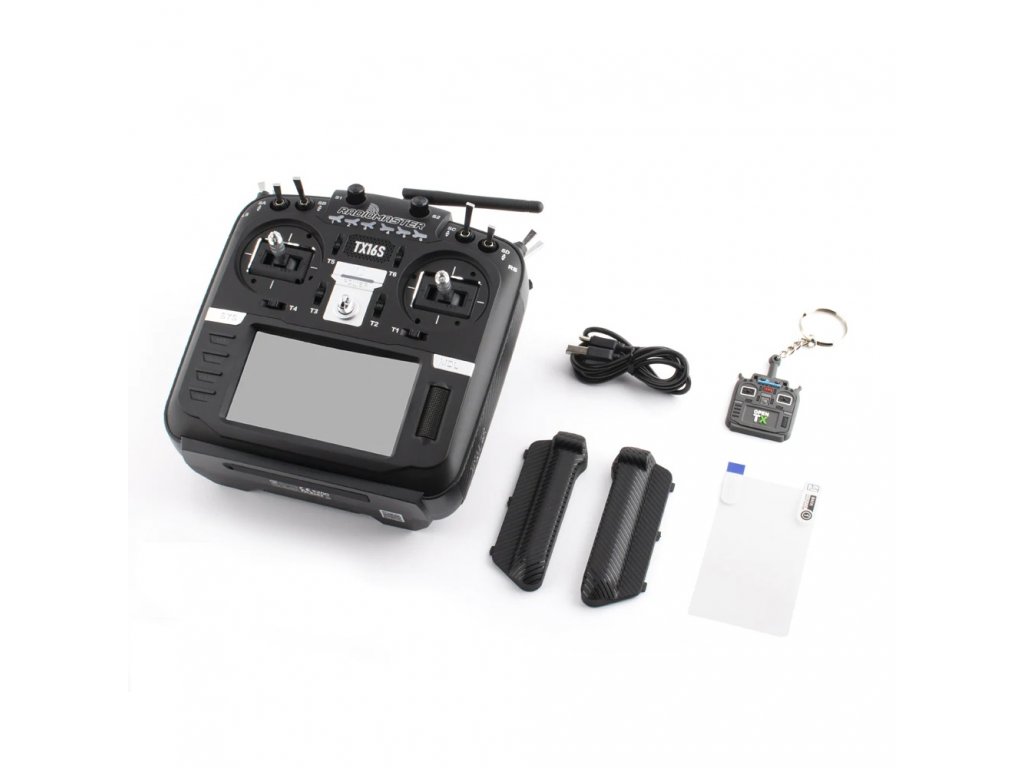

PACKAGE CONTENTS:

• 1 * TX16S Mark II radio controller

• 1 * 18650 battery holder

• 1 * USB-C cable

• 1 * Screen protector

• 1 Pair of flat handles

• 1 pair of raised handles

• 1 * TX16S keyring
