Radiomaster Pocket radio ExpressLRS

Product detailed description

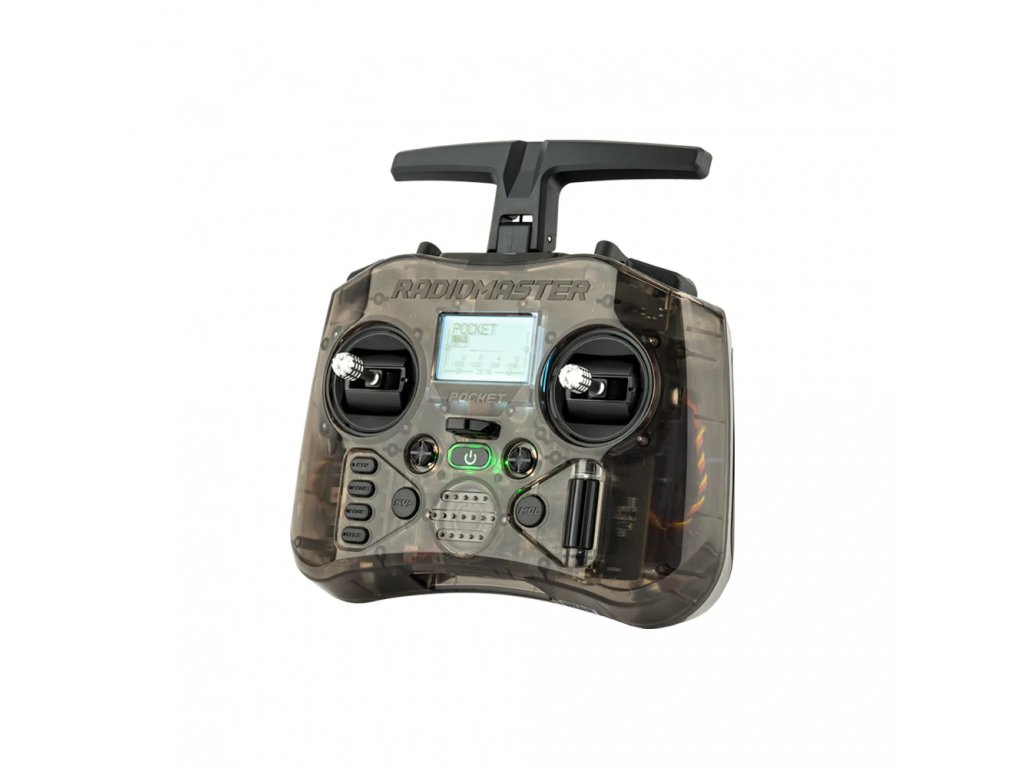

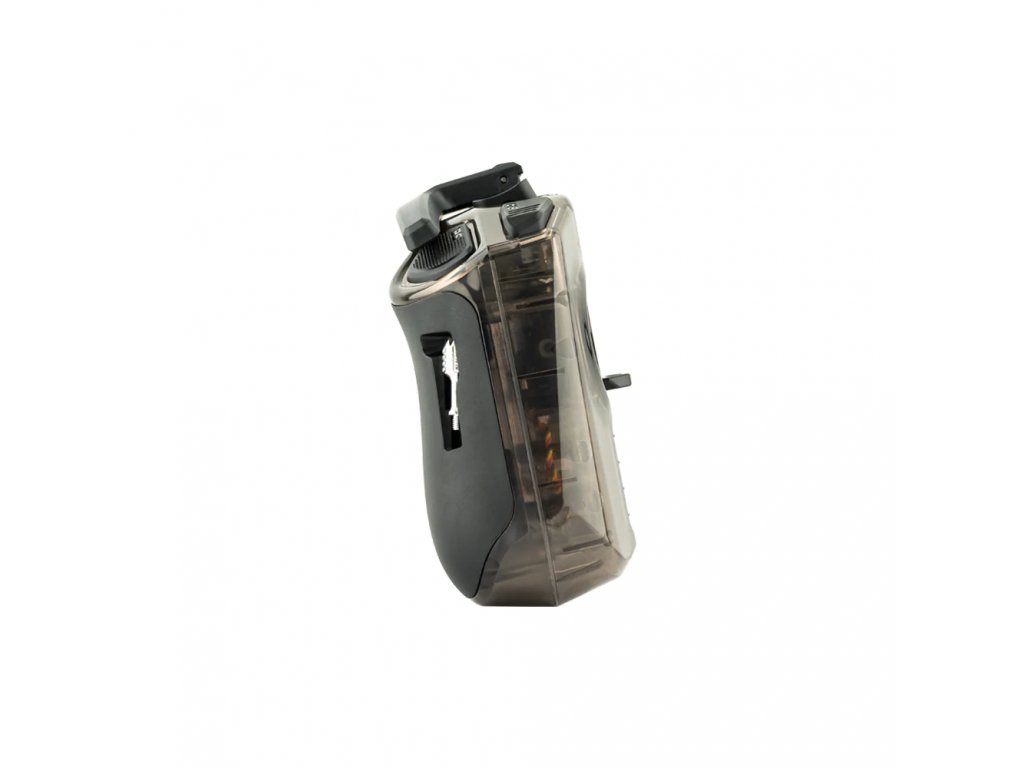

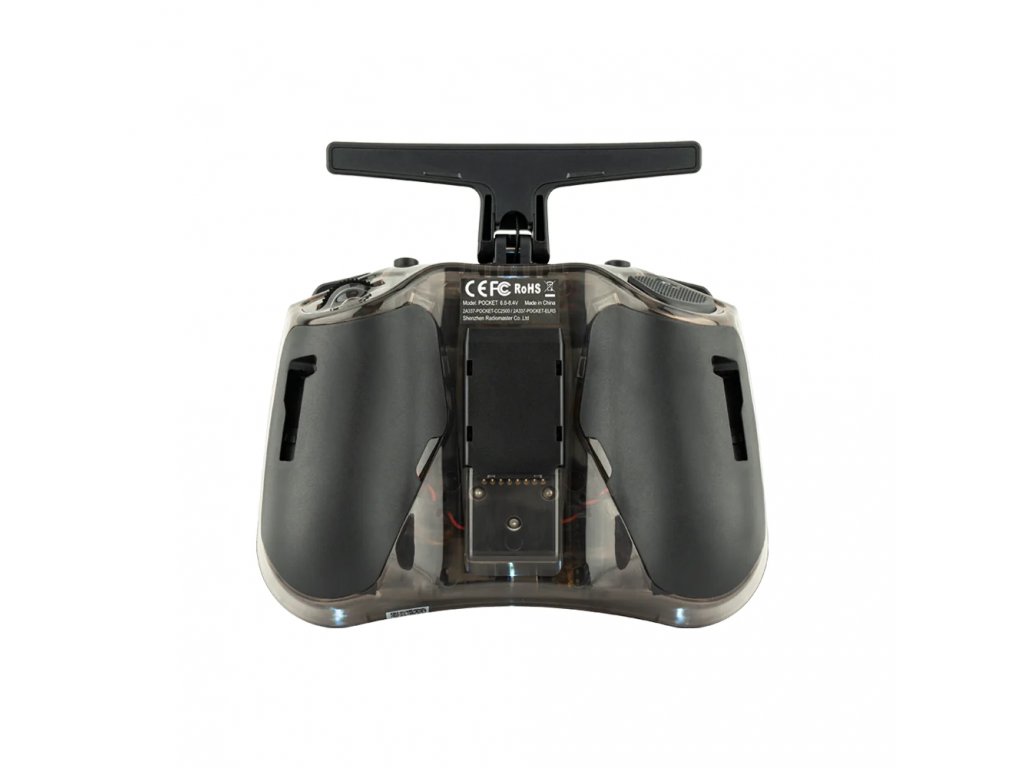

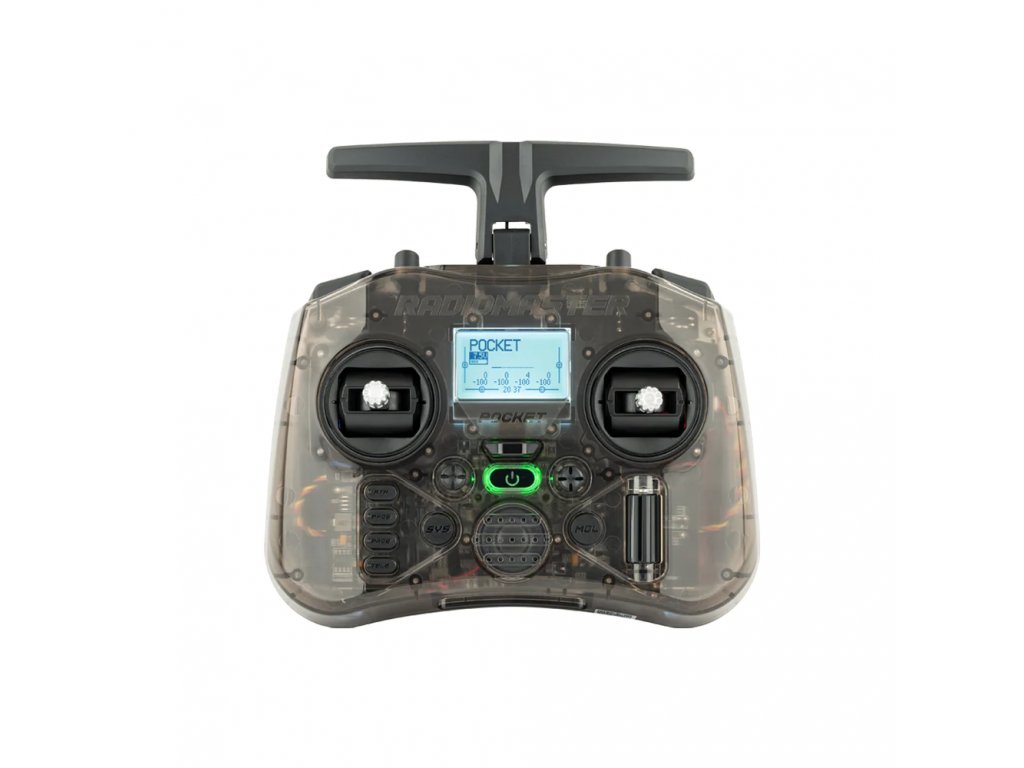

RadioMaster Pocket is a small, lightweight pocket radio with intergated TX module ExpressLRS and EdgeTX firmware. The gimbal levers are easily removable and the integrated holder makes it easy to store in any backpack or pack. It is compatible with 18650 batteries, providing long battery life for hours of fun.

Description:

• ExpressLRS version

• EdgeTX firmware pre-installed

• 18650 batteries (batteries not included)

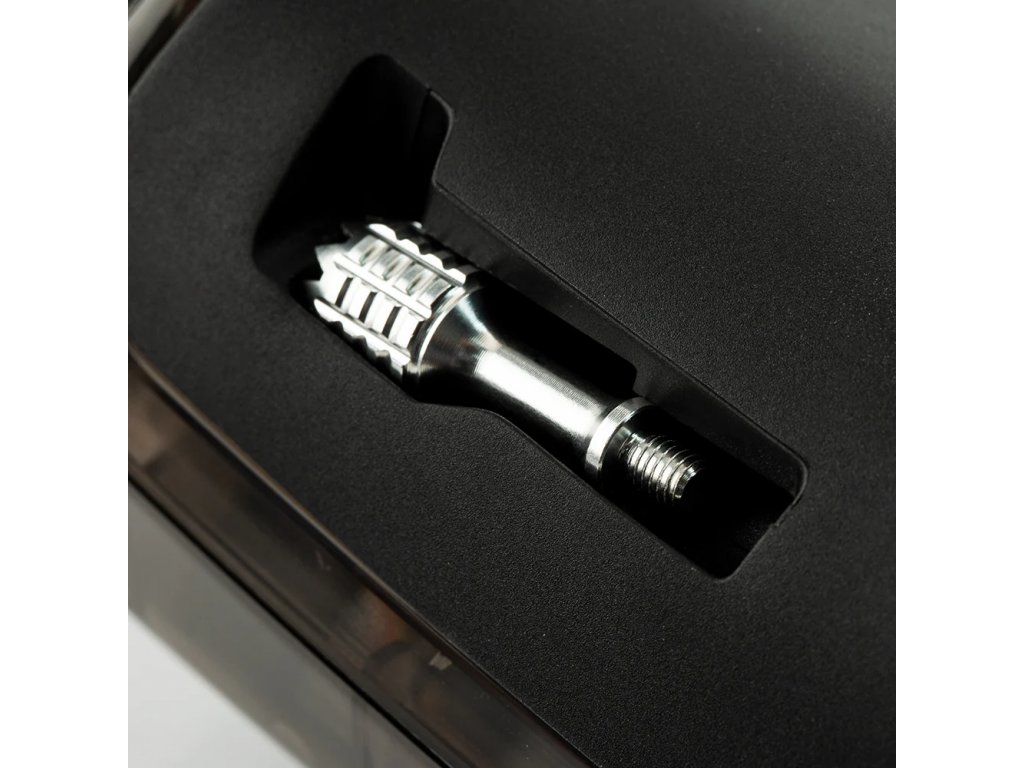

• Portable and lightweight design with detachable gimbal ends and foldable antenna

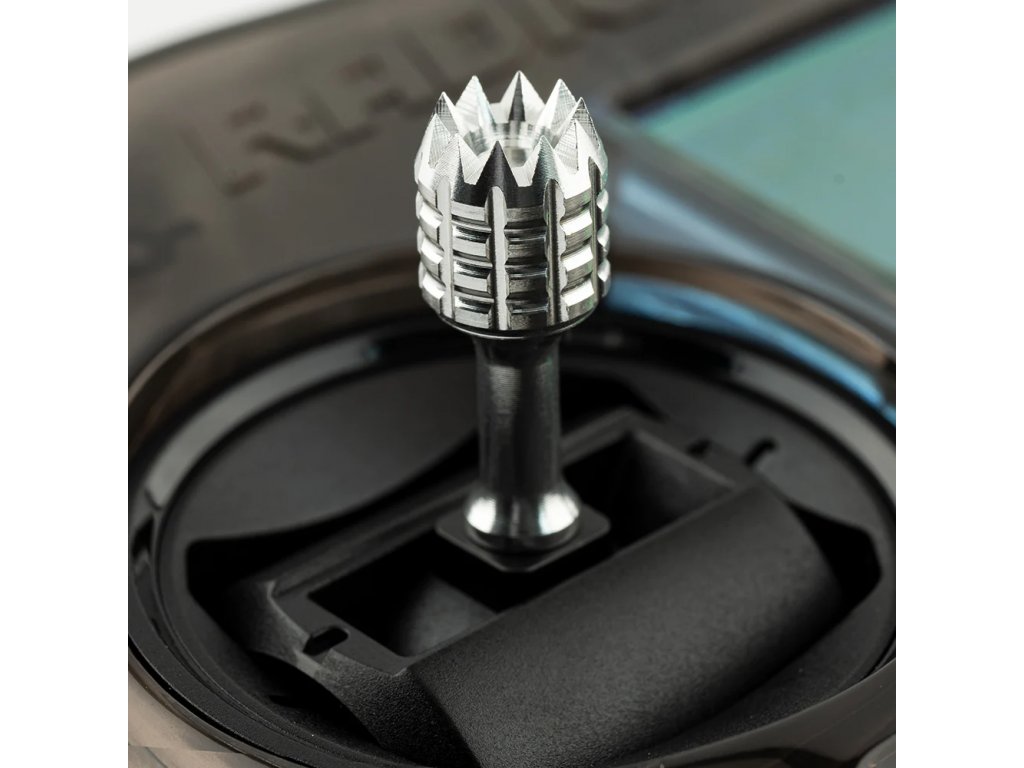

• Includes a gimbal with hall effect sensor as standard for smooth movement and precise response

• Built-in LED lights help visualize switch inputs

• Backlit LCD display

• Trim buttons

• External module shaft compatible with nano-sized RadioMaster and TBS Nano Crossfire/Nano Tracer modules

• Smoke color

Specifications

• Physical dimensions: 156.6*65.1*125.3mm (folded size)/156.6*73.1*154.8mm (unfolded size）

• Weight: 288 grams

• Operating frequency: 2.400 GHz-2.480 GHz

• Internal RF capabilities: ELRS 2.4 GHz

• Supported protocols: Depends on external nano module

• RF Power: ELRS FCC: 250mW Max (24dBm) / ELRS EU-LBT: 100mW Max (20dBm)

• Operating Voltage: 6.6-8.4V DC

• Operating System: EdgeTX

• Control channels: 16 max (depends on receiver)

• Display: 128*64 monochrome LCD

• Battery: 2pcs 18650 batteries (not included)

• Charging: Built-in USB-C QC3 charging

• Upgradeable firmware: Via USB or included SD card

• Gimbal: Hall effect sensor

• Module shaft: Nano-size (compatible with RadioMaster Nano-size, TBS Nano Crossfire / Nano Tracer modules)

Package Contents:

• 1*Portable radio mod2

• 1*Custom carrying case

• 1* USB-C cable

• 1 * Screen protector

• 1 * Sticker

• 4 * Low tension springs

• 1 * Manual
