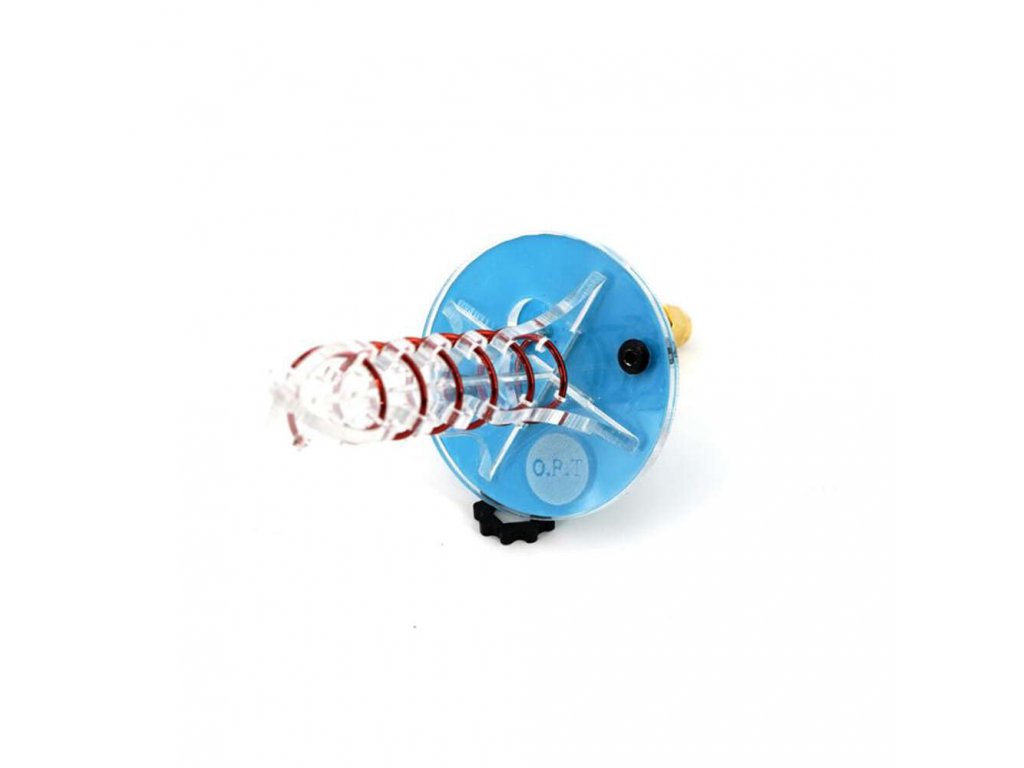

ORT New Helical 6 Turn Antenna Blue
Related products
Product detailed description
ORT designed the Helical 6 rotation to achieve the perfect balance between beamwidth performance (signal coverage) and range. Covering 100~120 degrees with an effective range of 10~20km using a 600mW video transmitter (depending on noise in the flying area, receiver sensitivity and FPV settings).
Manually tuned
Enameled wire (anti-corrosion)
Original RG402 low loss cable
High quality acrylic, providing a premium appearance
SPECIFICATIONS
ORT 6 Turn Helical Antenna "Long Range Master"
Freq Channel: 5300~6000 GHz
Gain (dBi): 10 dBic
SWR/S11: <1:1.3
Beamwidth: 100-120 degrees
Polarization: RHCP
Gain Pattern: Directional (must be aimed at general flying area)
Connector: SMA
