Moblite7 HDZERO 1S V3

Product detailed description

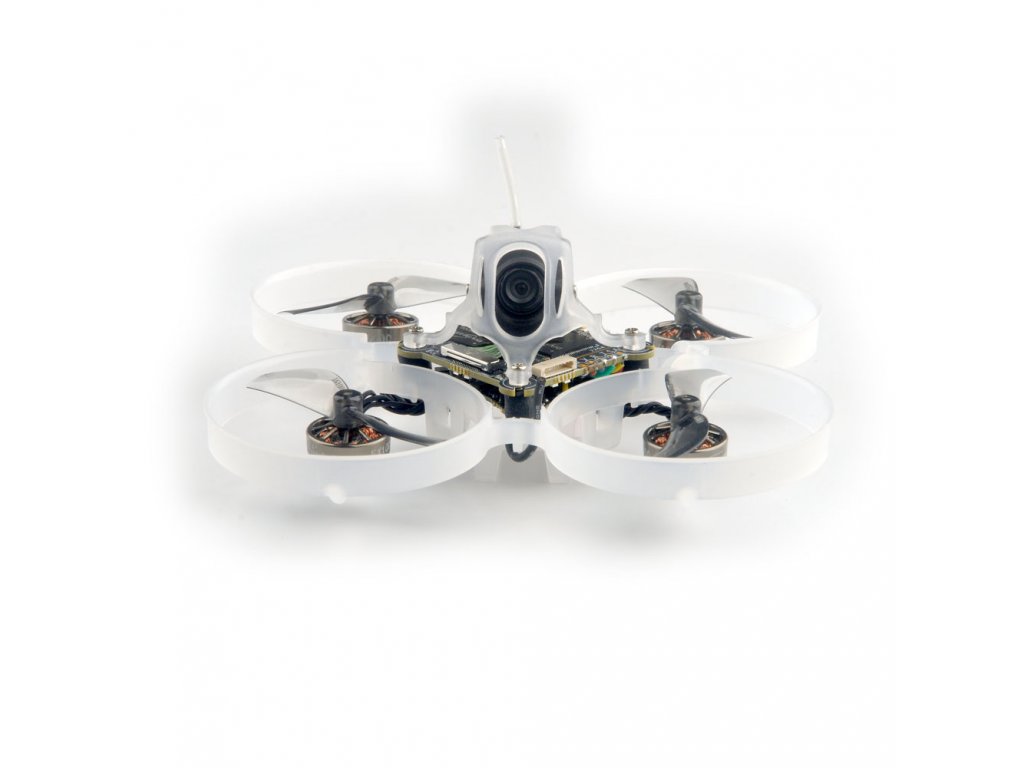

Happymodel Moblite7 HD Zero 75mm is a fully assembled whoop designed for indoor flying containing the HDZERO transmitter. The FPV drone has an integrated ExpressLRS receiver. Suitable battery capacity is 450-550mAh.

Individual components:

FC control board SuperX HD ELRS:

• Betaflight 4.4.2 firmware is ready
• Target firmware: CRAZYBEEF4DX
• MCU:STM32F411CEU6 (100 MHz, 512K FLASH)
• Sensor: BMI270
• Power: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only 1s input is supported for this drone
• Built-in 12A (each) Blheli_S 4in1 ESC Dshot300
• Built-in elrs UART receiver, ready for elrs v3.0, support WIFI and pass-through firmware update
• Bluejay ESC firmware ready
• Built-in 5V 1A BEC
• Built-in voltage detection

ESC controller:

• 1-2S LiPo/LiPo HV power supply.

• Current: 12A continuous / 15A peak (3 seconds)

• Support ESC-Configurator and BLHELI_S Suite configurator

• Factory firmware: Z-H-30 - Bluejay, 0.19, 48 kHz

• Default protocol: DSHOT300

Built-in ELRS receiver:

• RF frequency: 2.4 GHz

• Antenna: 31 mm enamelled copper wire

• Telemetry output Power: <12dBm

• Receiver protocol: CRSF

• Default firmware version: ExpressLRS V3.0.1

• Same hardware with Happymodel EP1 receiver

• Firmware can be updated using the ExpressLRS configurator or WIFI or Betaflight pass-through

Engines:

• Model: EX1002 20000KV

• Stator diameter: 10 mm

• Stator length: 2 mm

• Shaft diameter: Φ1.5 mm

• Weight (g): 2.5g

• Number of cells (Lipo): 1S only

Gemfan 1610-2 propeller:

• Weight: 0.24g

• Material: PC

• Pitch: 1 inch

• Support diameter: 40 mm

• Center hole diameter: 1.5mm

FPV camera HDZero Nano Lite:

• 14x16x11 mm

• 1.5 grams

• 0.5-inch, up to 10650 mV/Lux-s, ultra-high sensitivity CMos sensor

• Excellent low-light performance

• FOV 4:3: L:130° H:108° V:84°

• FOV 16:9:D:122°H:108°V:65°

HDZero Whoop Lite VTX:

• 1S input
• 25mW/200mW RF output-SmartAudio support

• 25.5×25.5 M2 Soft Mount - Antenna Mount

• Removable shielding box - 32.5 × 32.5 mm (29 × 29 mm internal)

• 4.5 grams/ 4 mm thick (without shielding)

Package Contents:

• Mobula7 v3

• Gemfan 1610-2 double blade propeller replacement kit

• Replacement shroud

• Propeller removal tool

• HDZero cable
