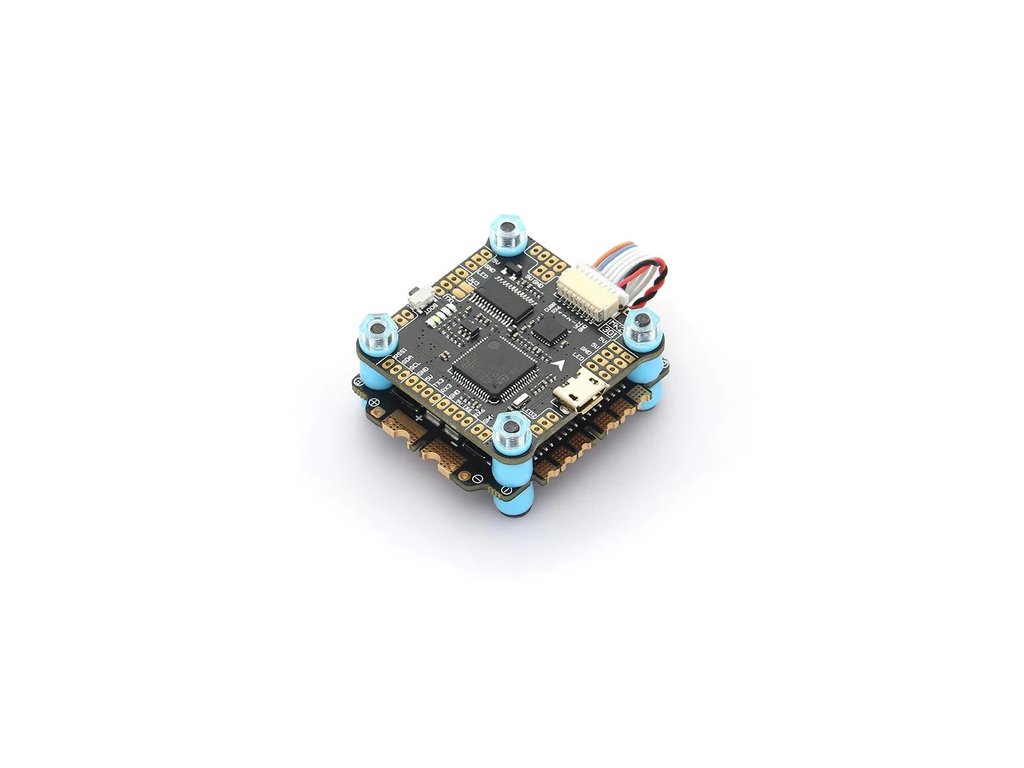

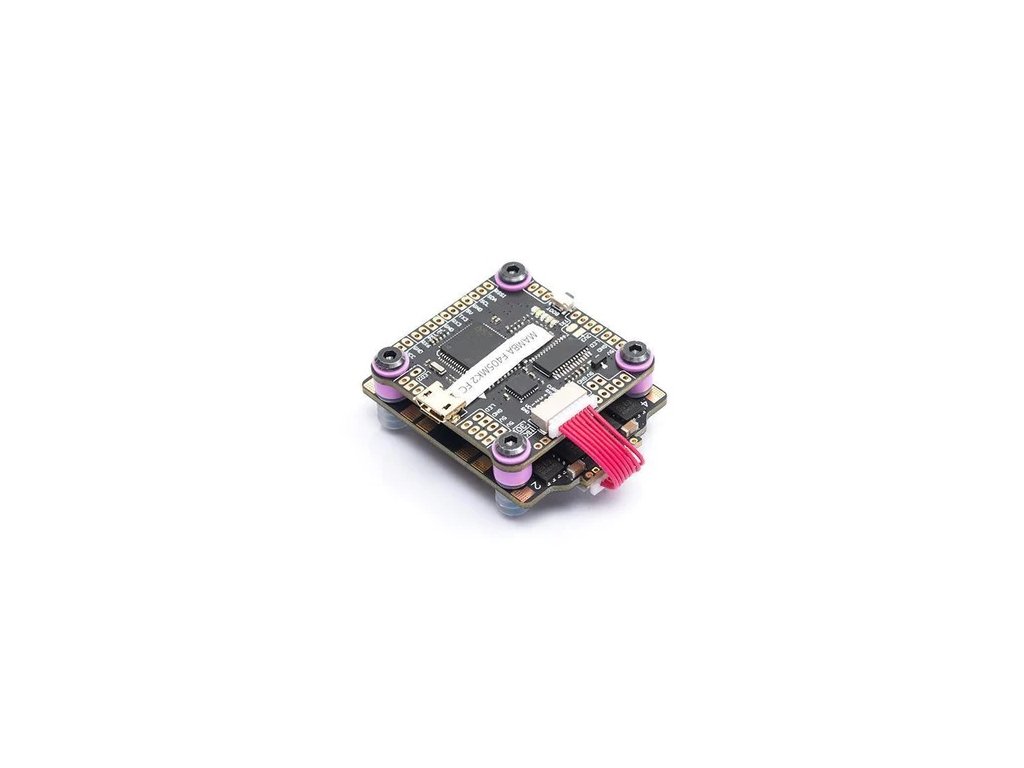

Mamba F405MK2 V2 50A BLheli_S stack
Related products
Product detailed description
Powerful stack FC and ESC Mamba F405 MK2 50A BLheli_S. Fits all FPV drones for freestyle, cinema and LR flights.

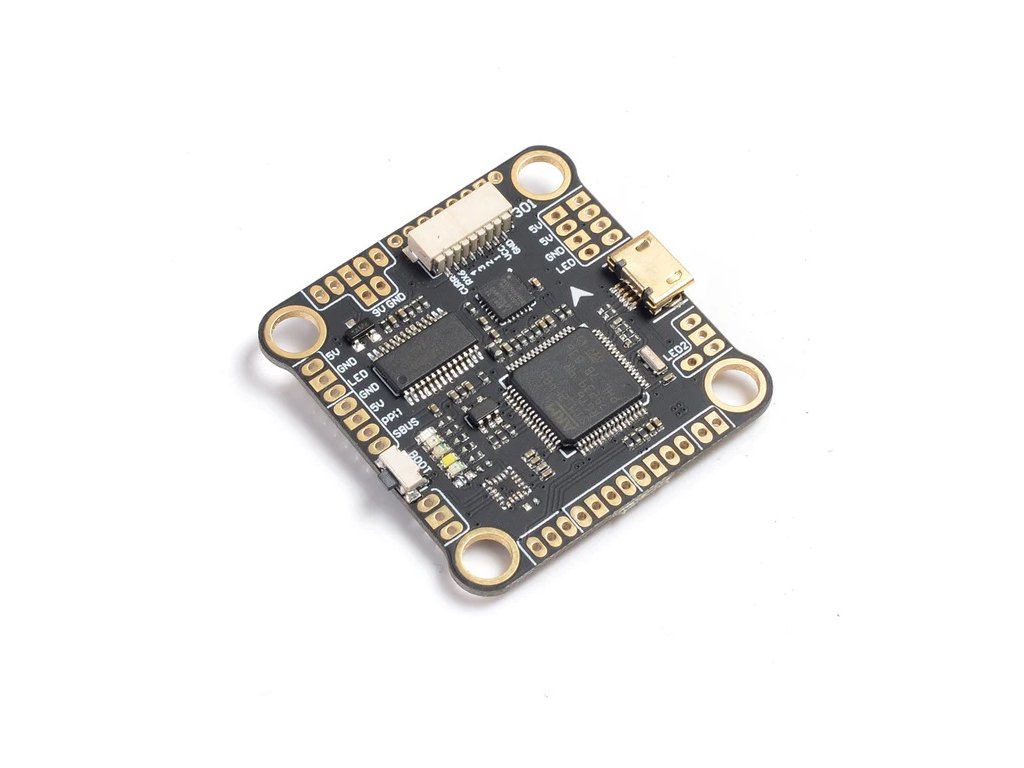

FC:
- Mamba F405 FC
- F405 Betaflight Flight Controller
- Input power: 12.6-25V (3-6S)
- 5V 2.5A & 9V 2A
- MCU: STM32F405
- Gyro: ICM42688P
- Flash: 16 MB
- OSD: AT7456
- Mounting hole: M3
- Weight: 6g

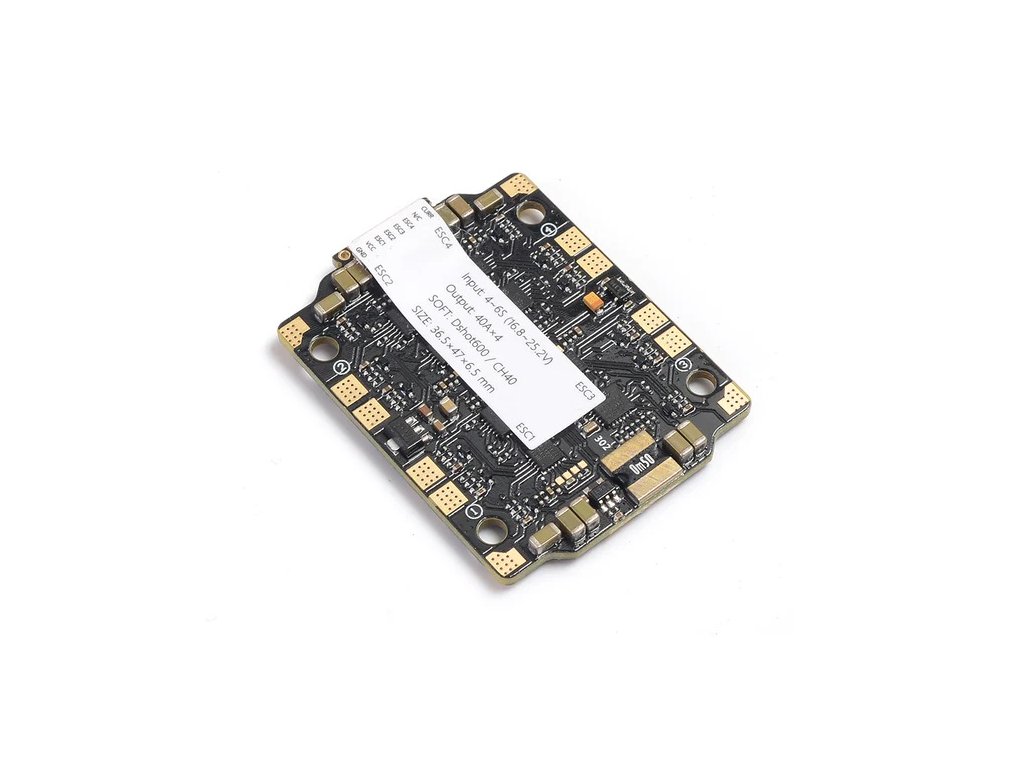

ESC:
- MAMBA F40MK2 ESC
- INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)
- Constant current output: 40A×4 BURST
- Maximum current load: 50A (10S)
- BEC: NO
- MOUNTING: 30.5 mm/M3
- CURR: 169A
- Motor: less than 1900kV recommended for 6S batteries
- Target: BLHeli_S CH40
- SOFT: Dshot300/600
- TVS Protection: Yes
- MOUNTING: 30.5 mm/M3
- Weight: 10g
