Lumenier AXII HD 2 Patch Visor 5.8GHz Antenna for DJI FPV Goggles

Product detailed description

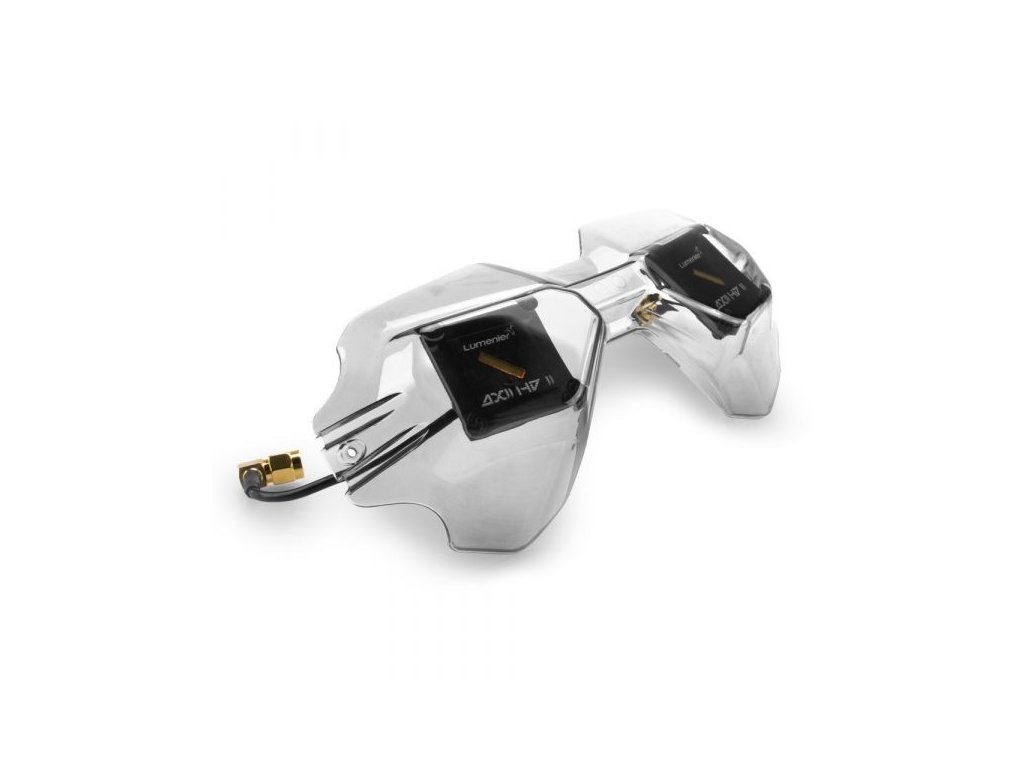

These are the Lumenier AXII HD 2 Patch Visor 5.8 GHz antennas for DJI digital HD FPV goggles. A set of LHCP circularly polarized directional antennas specially made for DJI FPV V1/V2 goggles. Designed for long range video from your FPV copter in a compact design. Building on the success of the original AXII HD antennas, the new AXII HD 2 improves both appearance and performance. A high quality antenna kit designed as a direct replacement and upgrade to your DJI goggle antennas. AXII HD 2 antennas have been designed from the ground up to fit perfectly with DJI goggles. The AXII HD 2 antennas feature a custom molded semi-transparent housing with built-in antennas inside. This provides a low-profile, sleek RP-SMA antenna solution with direct connection, all with improved performance.

Compared to standard omnidirectional FPV antennas, the Lumenier AXII HD Patch has a high gain of 8.4 dBiC for long distance flying and excellent penetration over objects. It also features an incredible 92% efficiency (most mini patch antennas have less than 75%), meaning you'll get amazing performance and the best picture in your video glasses. Designed in collaboration with renowned FPV antenna designer Hugo of TrueRC.

Improvements over V1:

• Higher gain for longer range and better signal penetration

• Wider FOV (Field of View) for better overall coverage

• Improved efficiency for better signal reception/transmission

• Antennas built into custom injection molded faceplate for better protection

• 15 degrees of tilt built into the antenna mount improves signal


Description:

• Designed for DJI HD FPV V1 and V2 digital goggles, form-fitted

• Compact low-profile design for your goggles, easy to store and transport

• High gain directional antennas

• LHCP circular polarization

• Color: Green

• Premium quality and performance

• Each antenna is QC inspected for guaranteed best performance


Specifications:

• Frequency: 5.8 GHz

• Bandwidth: 220 Mhz

• Gain: 8.4 dBiC

• PSF: 1:1.1

• Radiation Efficiency: 95%

• Beamwidth: 76°V. 76°V.

• Polarization: (LHCP) Left hand circularly polarized

• Connector: RP-SMA

• Weight: 33g


Package Contents:

• 1x Lumenier AXII HD 2 5.8 GHz Patch Visor Antenna (LHCP)
