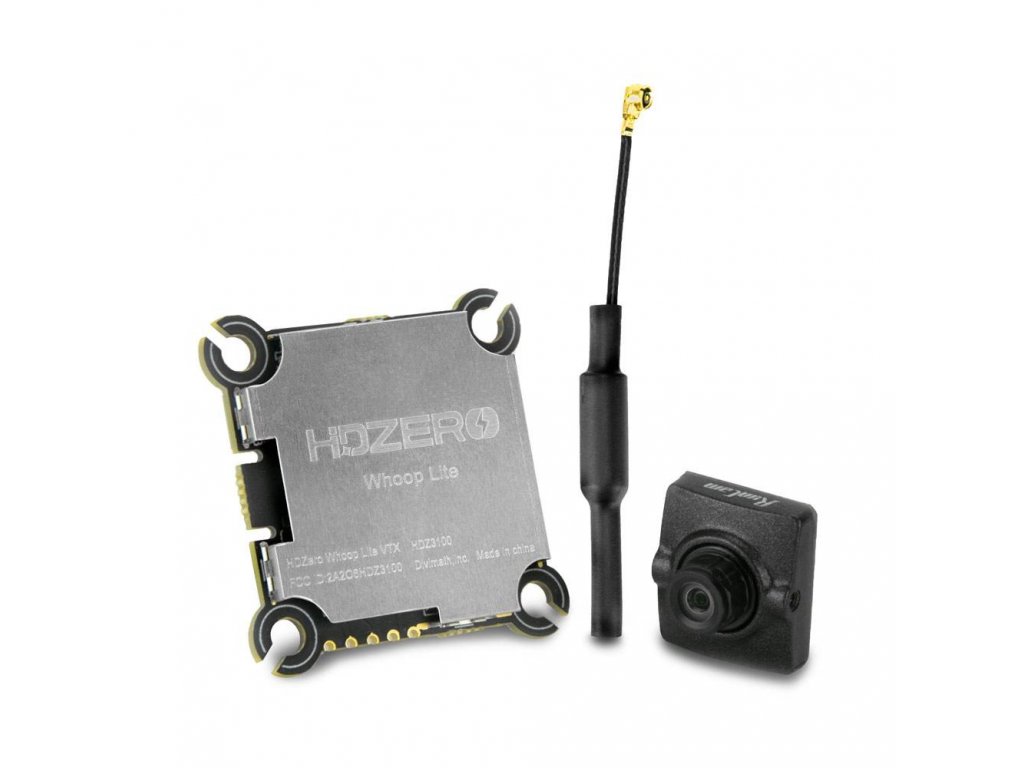

HDZero Whoop Lite kit

Product detailed description

This HDZero Whoop Lite kit is exactly what you need to transform your 1S Whoop for the digital FPV world! HDZero Nano Lite Camera V3 is designed for lightweight drones where every gram matters. At just 1.5g, combined with the new Whoop Lite VTX weighing 4.5g with a 0.4g dipole antenna, it enables the world's first production digital solution weighing approximately 7g for FPV copters. This kit can also be used in a larger FPV drone frame for racing or freestyle.

Features:

• Ultra-high sensitivity CMOS sensor.
• Excellent low-light performance
• HDZero Nano Lite camera
• HDZero Whoop Lite VTX
• Shield can be removed
• Supports Smart Audio
• Weight under 7 g
• Antenna mount
• 4mm Thickness
• Input Voltage 1S-3S

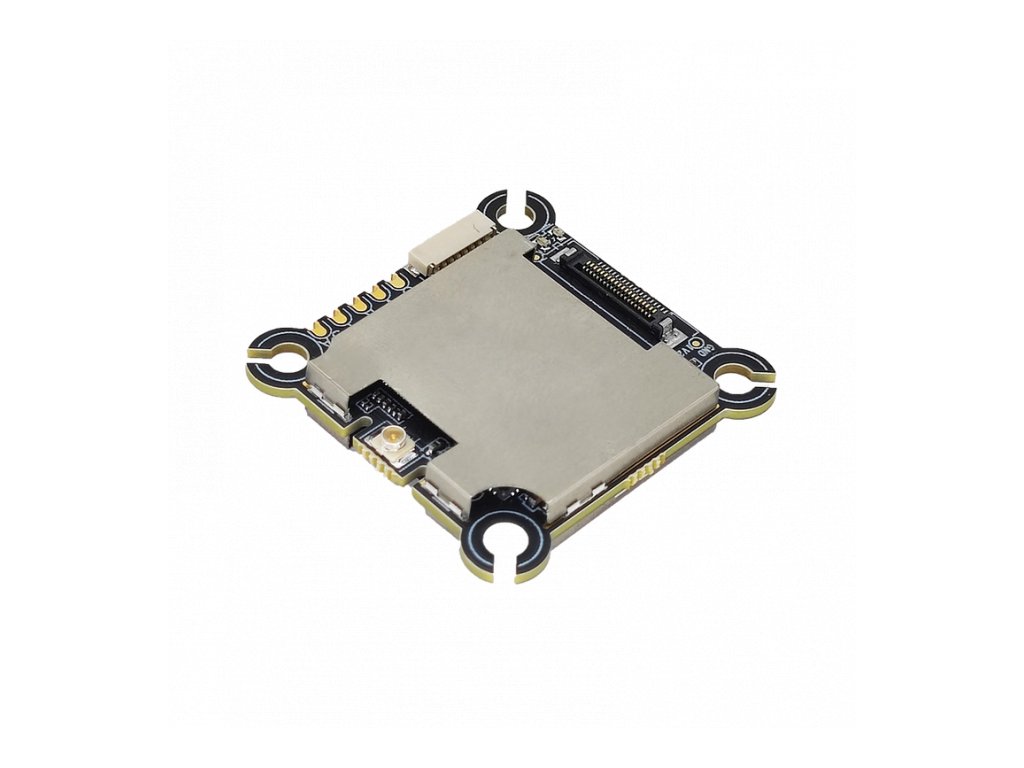

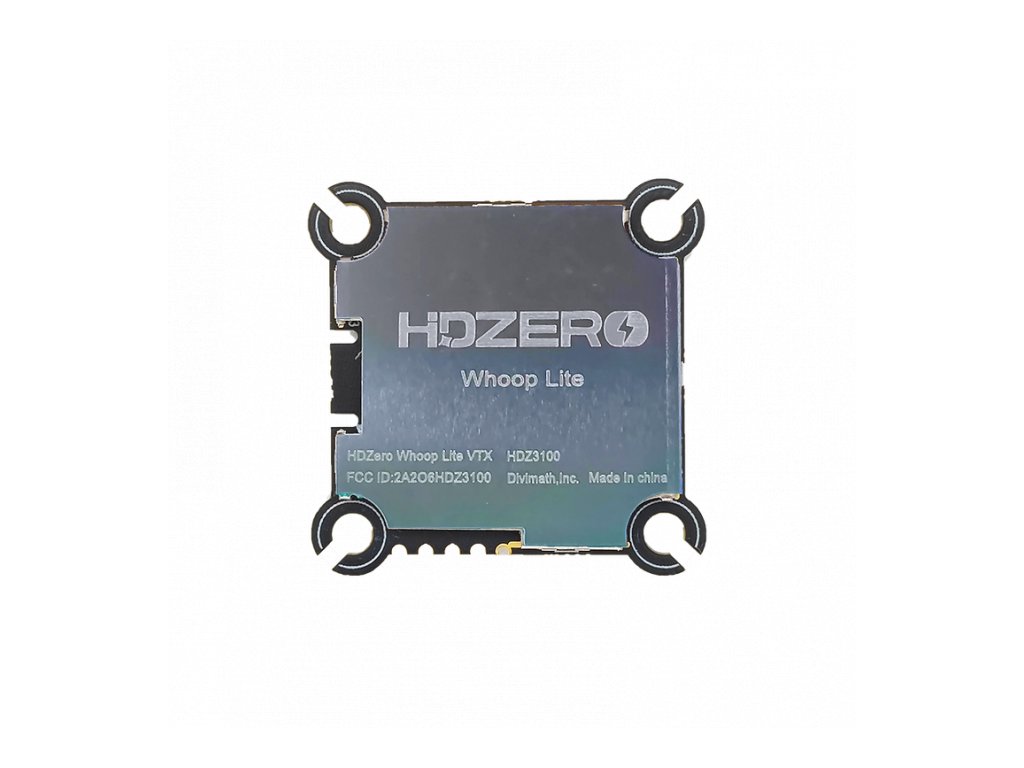

HDZERO WHOOP LITE VTX

• Mounting pattern: 25.5 x 25.2 M2 (softmount)
• Dimensions: 32.4 x 32.5 mm (internal 29 x 29 mm)
• Video connector: 20 positions, 0.30 mm pitch
• Default resolution: 1280*720@60fps
• Interface: 4-lane MIPI CSI YUV422
• RF power: 25mw/200mw
• Smart Audio: Supported
• Power: 1000mA@5V
• Power: 1S-3S
• RF connector: U.FL
• Frequency: 5.8G
• Thickness: 4mm
• Weight: 4.5g

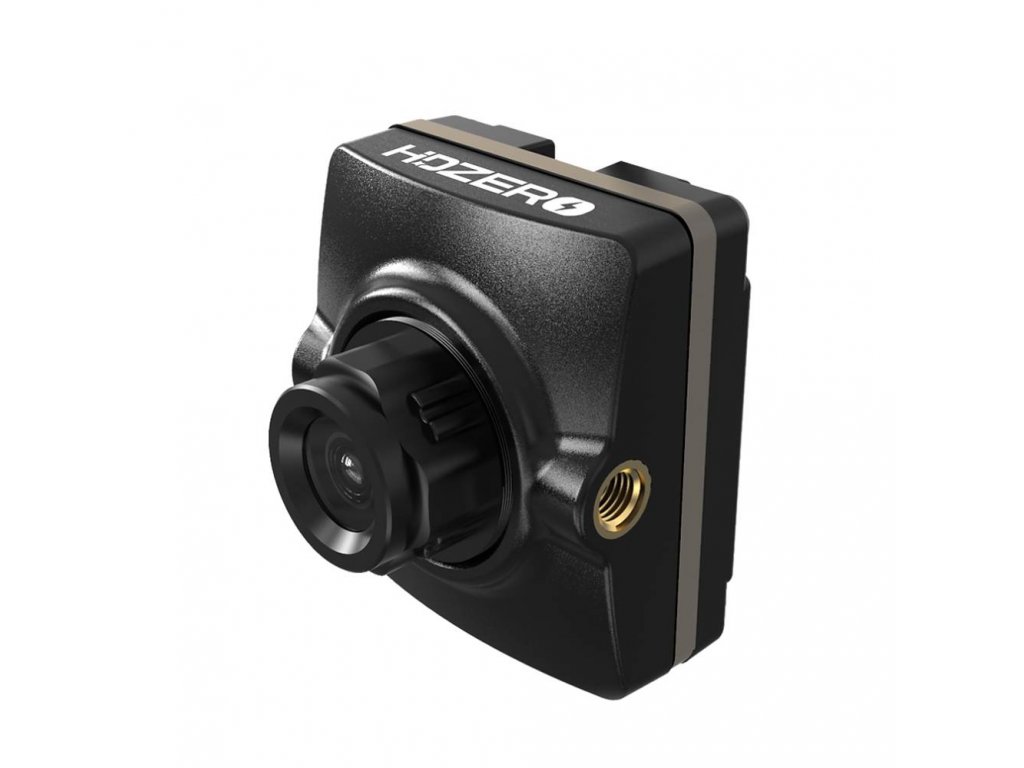

HDZERO NANO LITE CAMERA V3

• Sensor: 0.5 inch, up to 10,650 mV/Lux-s, ultra-high sensitivity CMOS sensor
• FOV: (16:9) D:122° V:108° V:65° / (4:3) D:130° V:108° V:84°
• Input power: 3.3 VS Power consumption: 0.5 W
• Sensitivity: 10650mV/Lux-sec
• Dimensions: 14 x 16 x 11 mm
• Shutter: Roller shutter
• Manufacturer: RunCam
• Sensor Size: 1/2 inch
• Resolution: 720p60
• Weight: 1.5 g

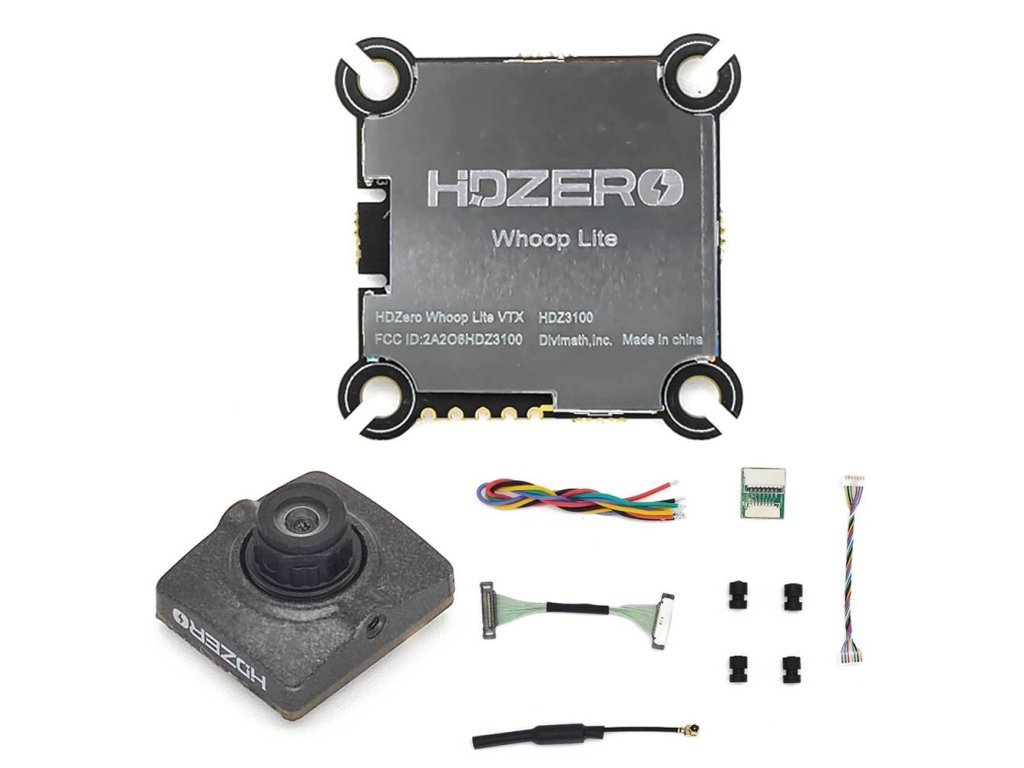

Package Contents:

• 1x HDZero Nano Lite camera
• 1x HDZero Whoop Lite VTX
• 1x set of connecting wires
• 1x Dipole antenna
• 1x Hardware kit
• 1x MIPI cable
• 4x Softmount
• 2x Tension Tape
