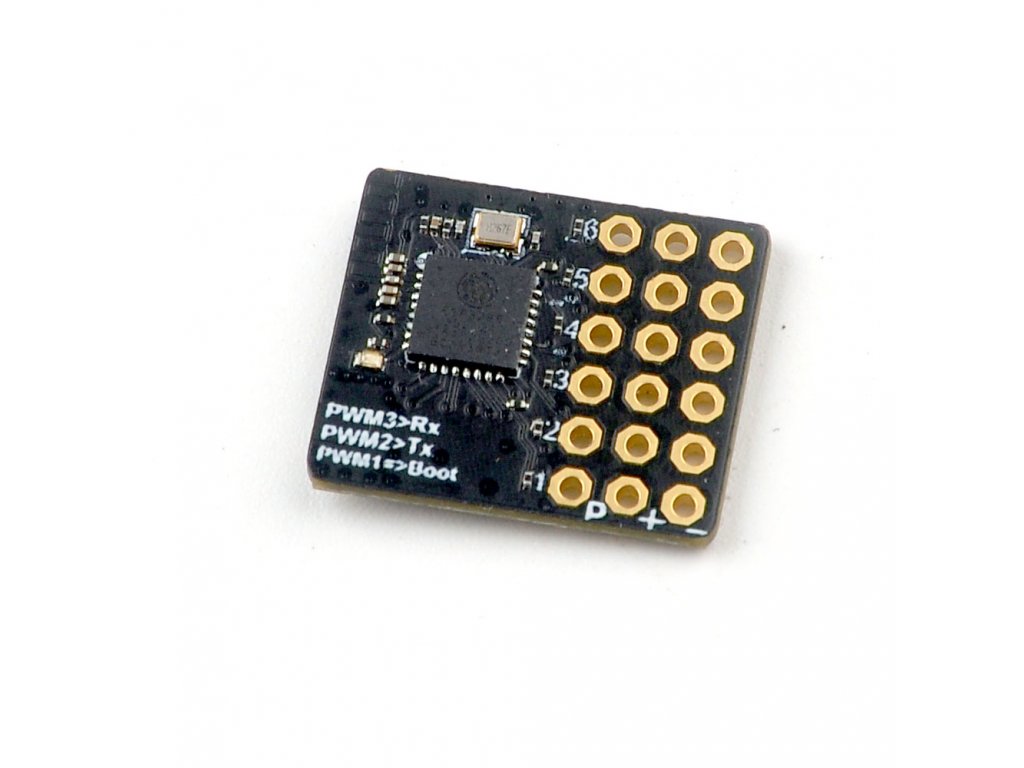

Happymodel ExpressLRS ELRS EPW6 900MHz 6CH PWM RC

Product detailed description

ExpressLRS now supports direct PWM output from receivers operating at 868MHz etc. This receiver is equipped with PWM output for use with fixed wing aircraft, helicopters, RC cars, boats.

Specifications:

• Antenna connector: IPEX MHF 1/U.FL

• 6x PWM output

• RF frequency: 868 MHz (EU), 915 MHz (FCC)

• Telemetry power: <17dbm

• Receiver protocol: PWM or CRSF

• Input voltage: +5V DC @ "+" pad

• PCB size: 18.5 mm x 16 mm

• Weight: 1 g without antenna

• Default firmware version: ExpressLRS v2.0

Firmware:

• DIY_900_RX_PWMP (factory default firmware), PWM receiver via 1~6 PWM outputs

• HappyModel_RX_ES900_RX, CRSF serial receiver via TX and RX

• Firmware update via UART or WIFI

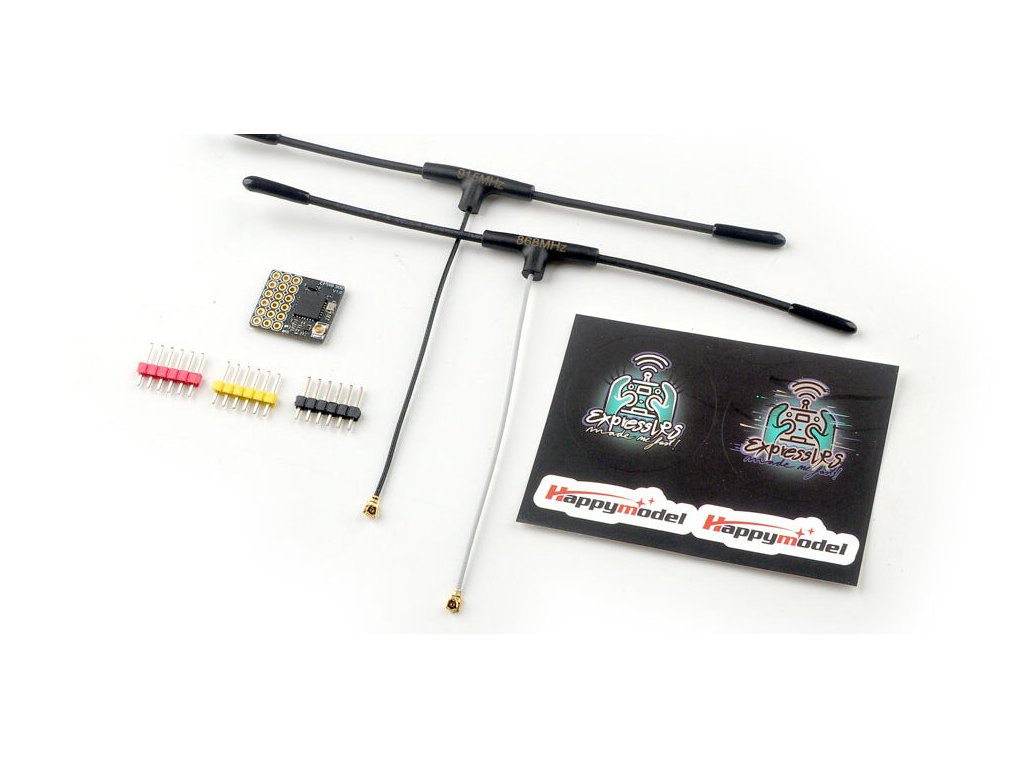

Package includes:

• 1 x Happymodel EPW6 900MHz pwm receiver

• 1x 915MHz antenna

• 1x 868MHz antenna

• 3 x 6 pins 2.54 mm
