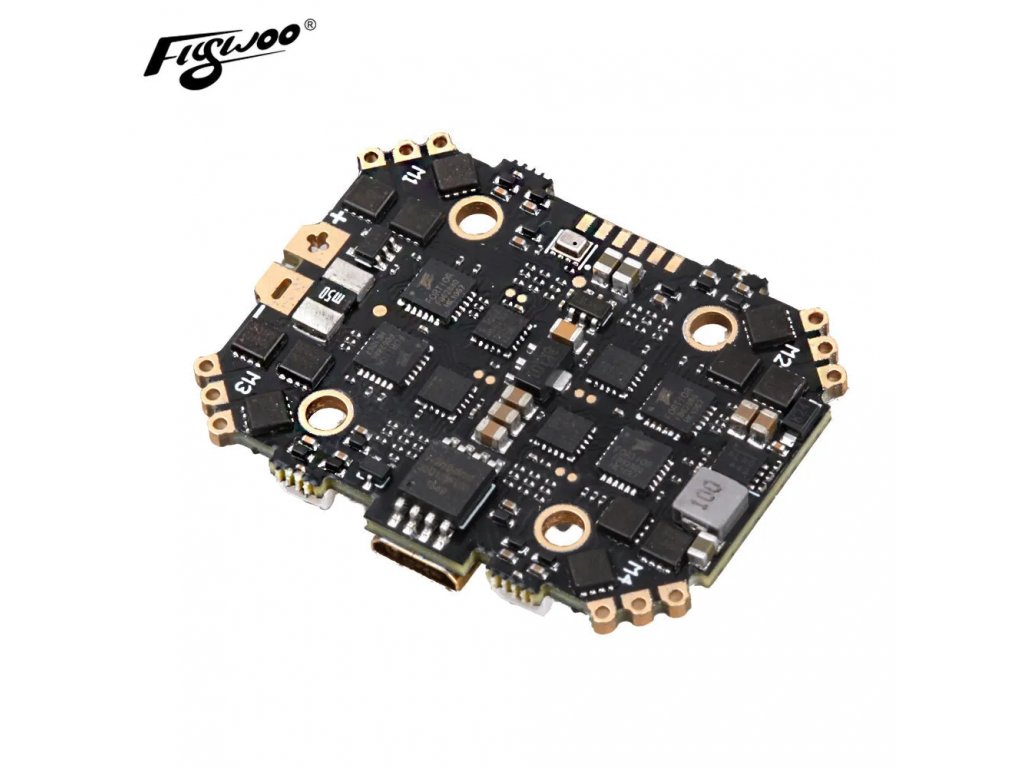

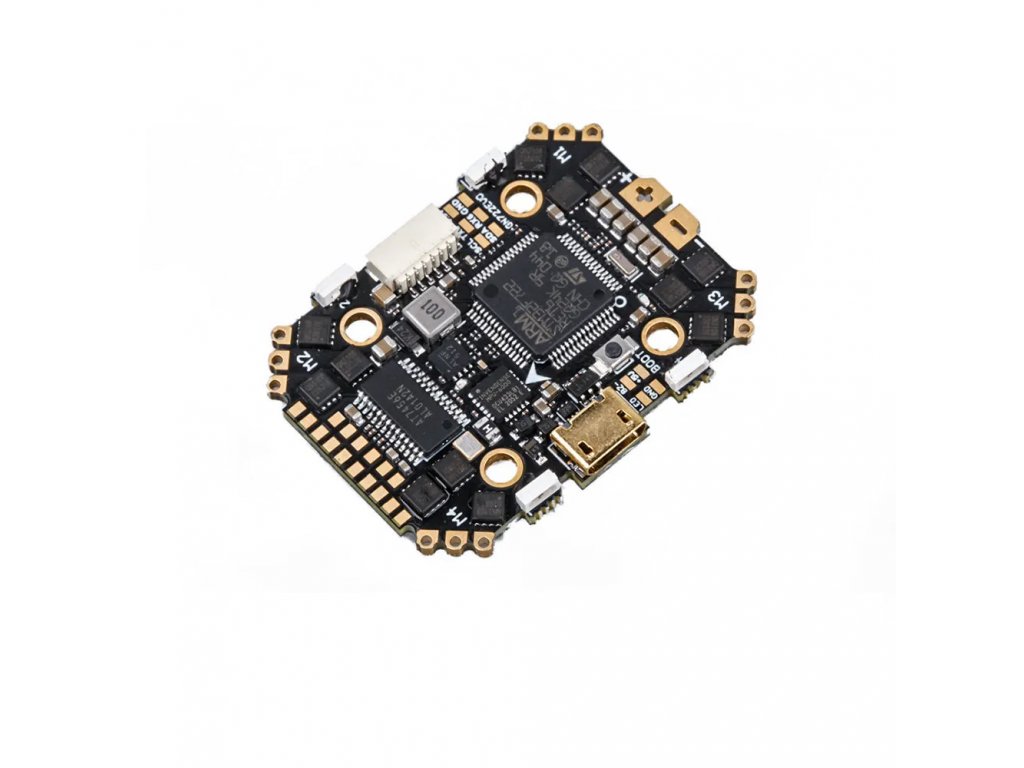

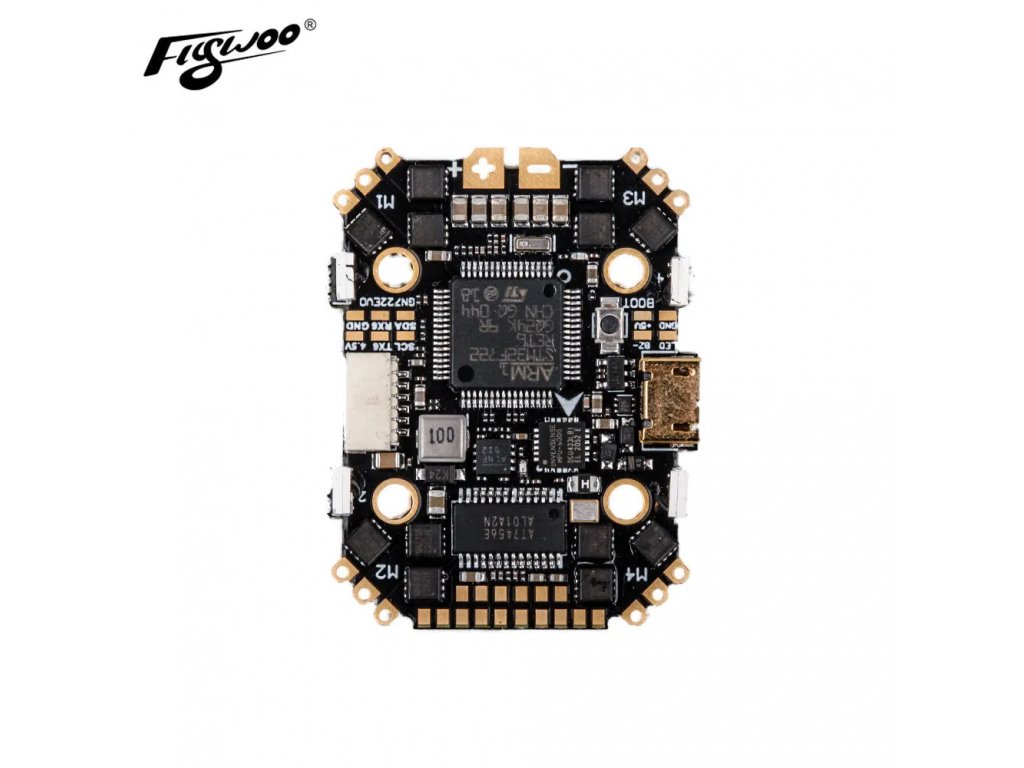

GOKU HD EVO 40A AIO 20x20mm

Product detailed description

This AIO board includes the powerful F722 chip and BLHELI_S ESC firmware, integrate 5V/9V dual BEC, barometer, blackbox, WS2812LED, support 7 complete hardware serial ports, I2C and more. Ideal for building lightweight FPV copters

Specifications

• MCU: STM32F722 32-bit processor, 216 MHz, 512 Kbytes Flash

• IMU: ICM42688

• Barometer: BMP280

• Integrated LED: WS2812*4

• USB VCP Driver (all UARTs usable at the same time; USB does not occupy a UART)

• 6 hardware UARTS (UART1,2,3,4,5,6)

• Supports only serial receivers (SBUS, iBus, Spektrum, Crossfire).

• PPM and PWM receivers are not supported.

• Onboard 16 MB for Blackbox logging

• 9V output current: 1.5A max

• 5V output current: 2.0A max

• 3.3V output current: 0.5A max

• Dimensions: 41 x 32 mm

• Mounting holes: 20x20 mm

• Weight: 8.5g
• Built-in 40A BL_S 4in1 ESC

• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,Dshot600

• Input Voltage: 2-6S Lipo

• Continuous current: 40A

• Firmware: BLHELI_8 - possibility to upload BlueJay FW
