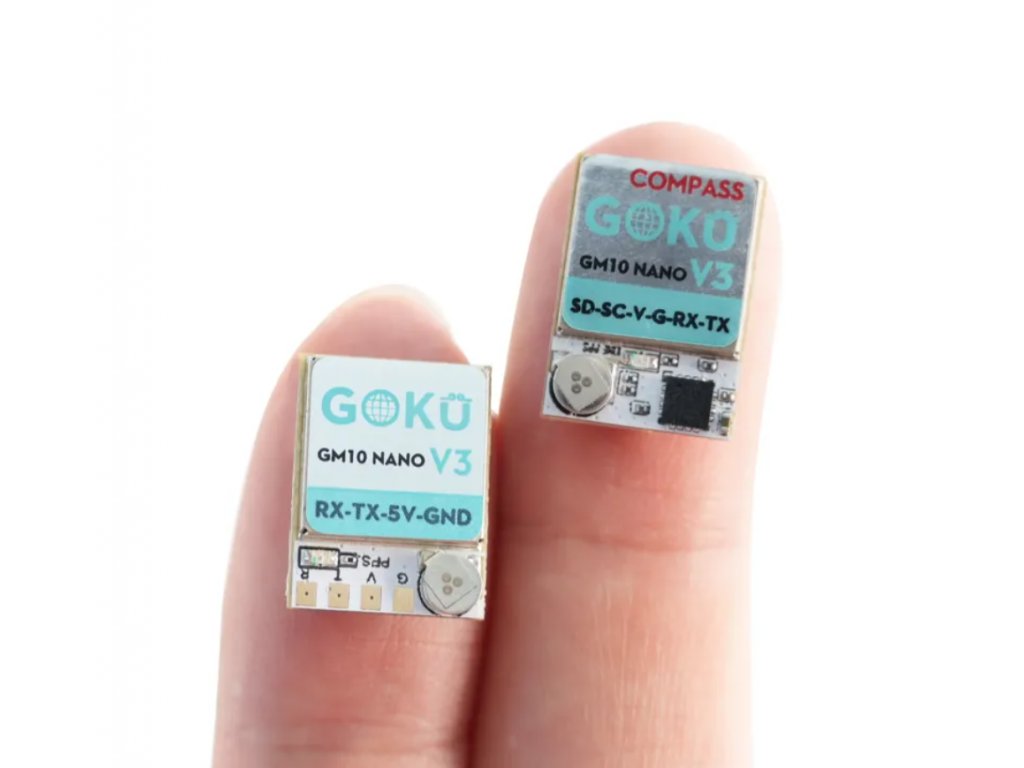

GOKU GM10 Nano V3 GPS w/compass

Product detailed description

The GOKU GM10 V3 GPS series w/compass uses the latest M10050 GNSS chip. Compared to the previous generation GM8 V2, positioning is more accurate and satellite search speed is faster.

Description:

• Brand: FLYWOO

• Model: GM10 NANO V3 GPS w/compass

• w/compass: M1005
• Dimensions: 12mm*16mm*4.5mm

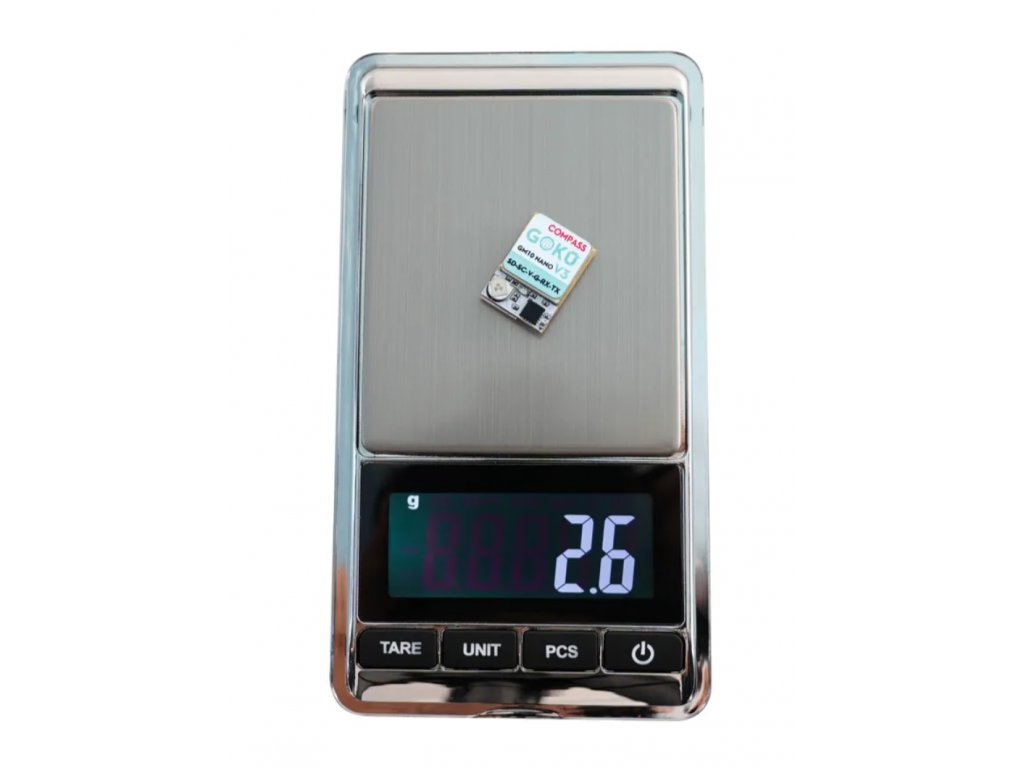

• Weight: 2.2g

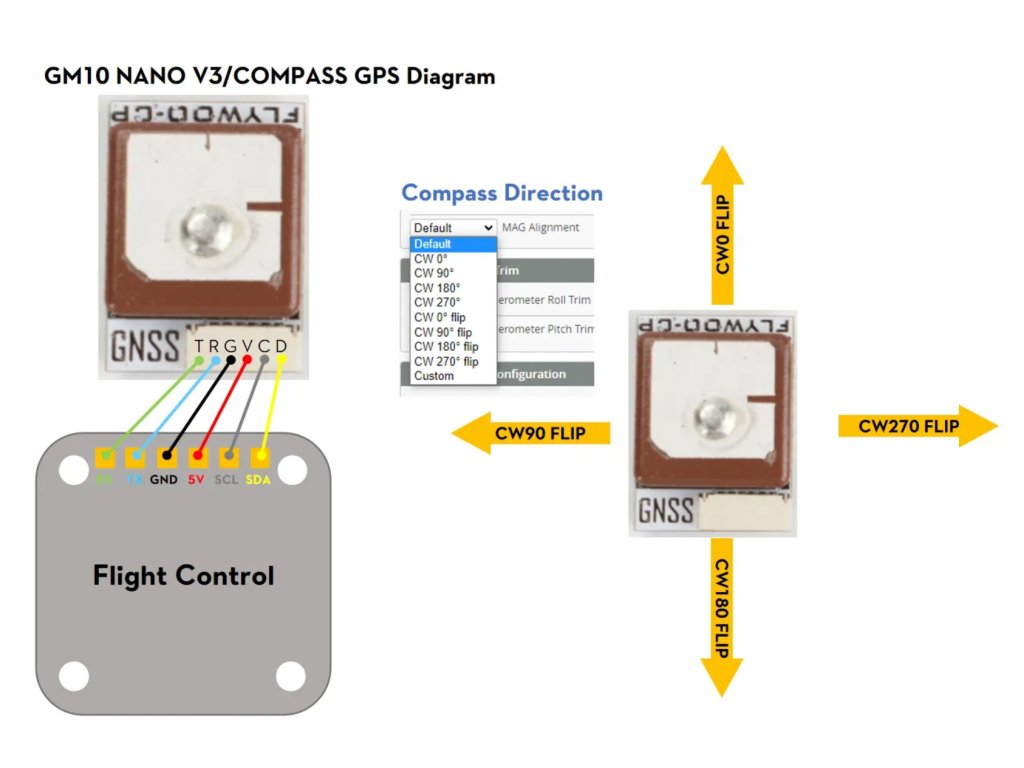

• Connector: 4pin solder pads
• Chipset: M10050 (10th generation chip)

• Reception format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS

• Default protocol: GPS, Galileo, BeiDou

• Frequency: GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

• Channels: 72 Channel Search
• Sensitivity: -162dBm

Package Includes:

• 1x GPS GM10 NANO V3 w/compass

• 1x 100mm cable

• 1x copper foil
