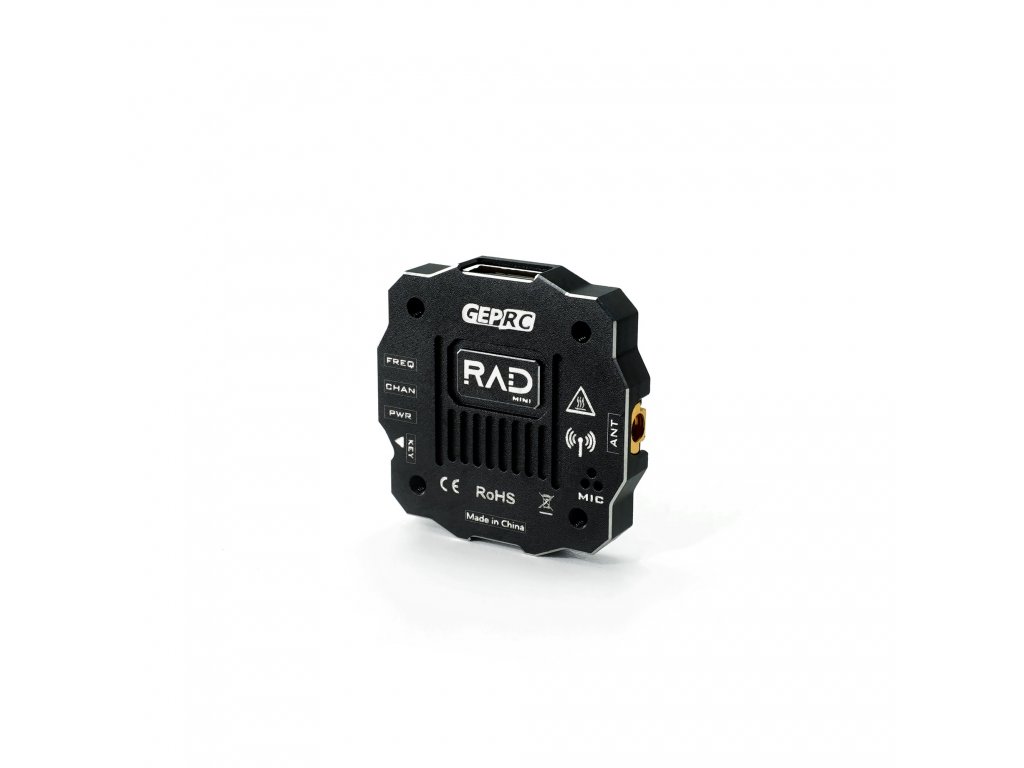

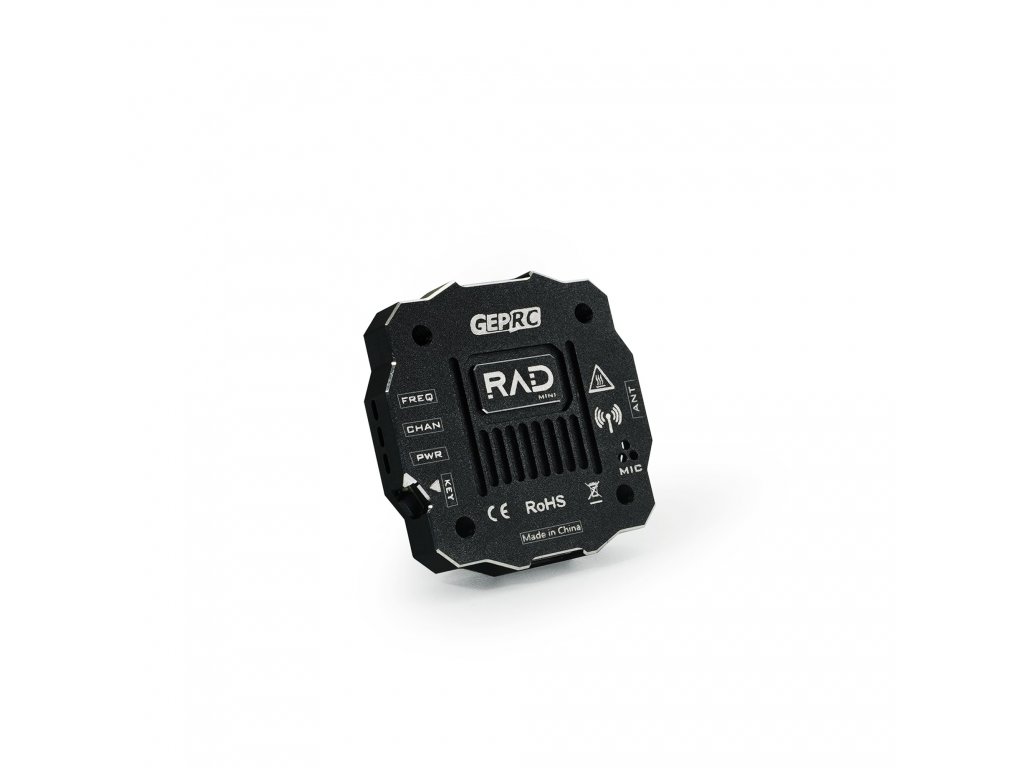

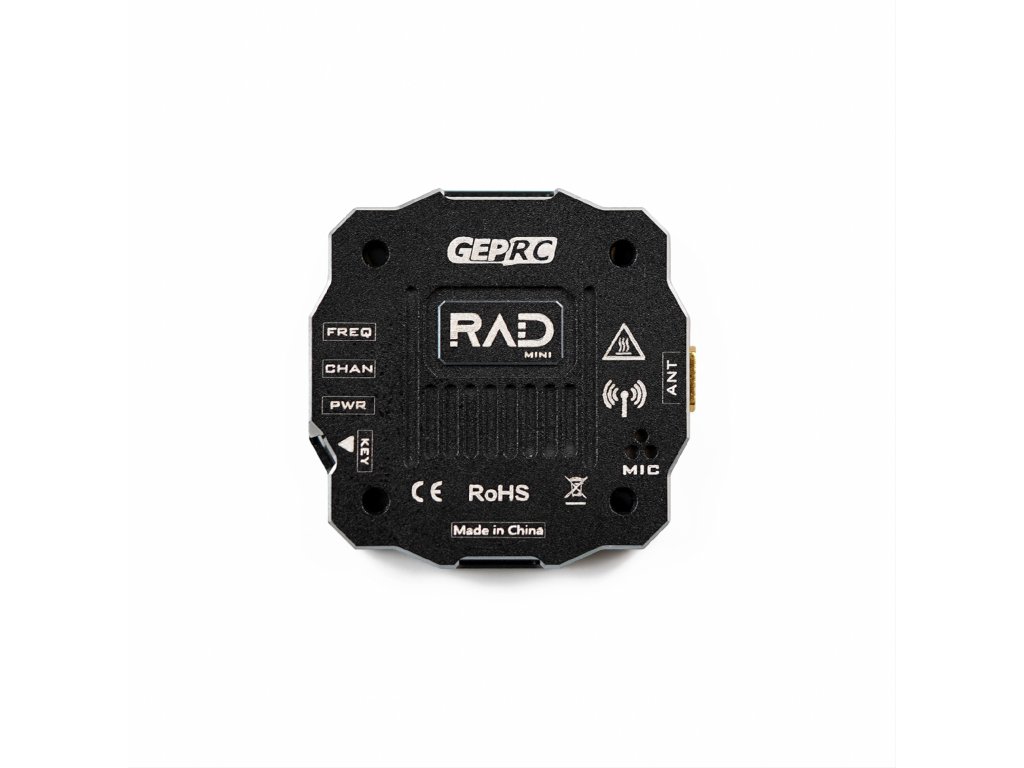

GEPRC RAD MINI 5.8G 25-1000mW

Product detailed description

RAD MINI VTX is the latest 1W high performance VTX video transmitter for FPV drones developed by GEPRC. It has 4 adjustable power levels and a maximum power of 1000mW, with stable transmission signal, suitable for short and medium distance flight. RAD MINI uses a high-strength 6061 aluminum alloy housing, which helps heat dissipation, which has stronger impact resistance and better heat dissipation. IRC Tramp protocol, OSD settings adjustment, built-in microphone can provide real-time audio transmission. 7-28V wide voltage input, with temperature control protection function to prevent overheating and burnout. With 20x20mm PCB mounting hole, the diameter of one hole is 3.05mm. The aluminum alloy cover can be removed and installed on the stack. Cover the cover with the 20X20 mounting hole and one M2 threaded hole. It is recommended to install on the back of the frame where the 20X20 holes are located. When installing, pay attention to the insulation, PCB side down, and pad with four nylon spacers for installation (included).

Manualdownload.

Specifications

• Input Voltage: DC7-28V (2-6S batteries)
• Output Voltage: 5V@600mA (5V power supply to camera)
• Input impedance: 75Ω
• Protocol: IRC Tramp
• Antenna Connector: MMCX
• Cable connector: SH1.0 5pin + SH1.0 3pin
• Output Power: 25mW/200mW/500mW/1000mW/PIT MODE
• Frequency band: Universal frequency band (40CH), US FCC frequency band (37CH), EU frequency band (26CH)
• Video Format: PAL/NTSC
• Microphone: Built-in microphone

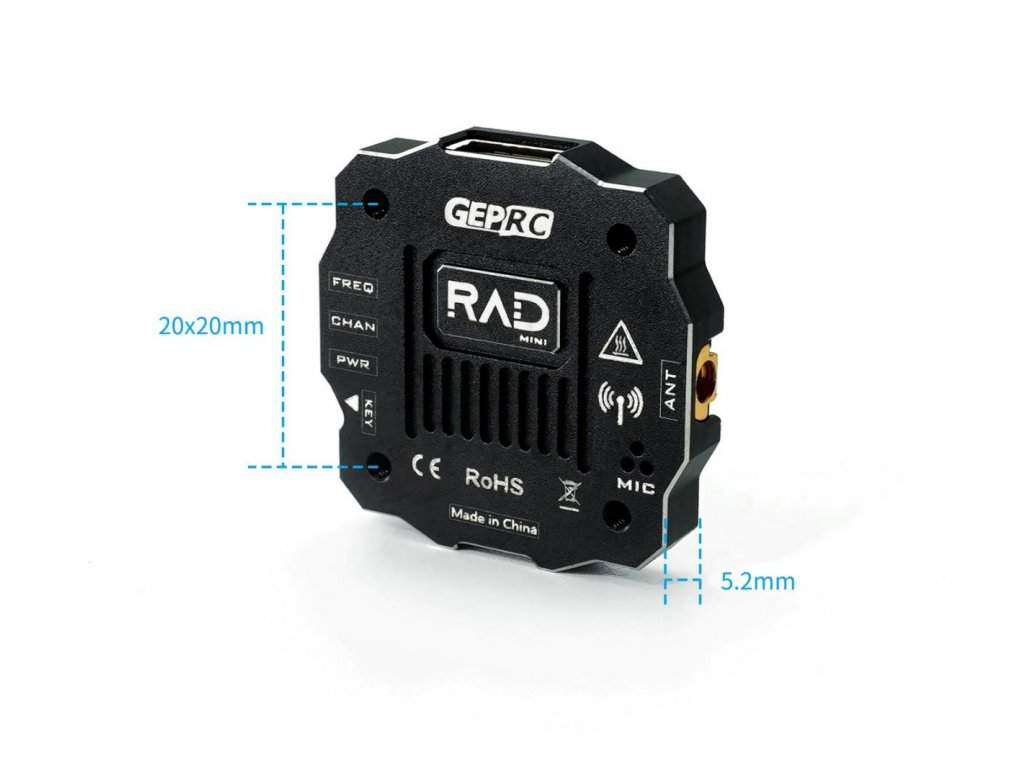

• Mounting Hole: 20 x 20 mm
• Size: 30.83×30.83 mm
• Net weight: 4.7g
• With metal housing: 8.4g

Features

• Lightweight, high power, with a maximum power of 1000 mW, suitable for short and medium distance flights to ensure the quality of image transmission.

• 4 power levels: PitMode/25mW/200mW/500mW/1000mW.

• High-strength 6061 aluminum alloy housing, which helps in heat dissipation, having stronger impact resistance and better heat dissipation.

• With temperature control protection function to prevent burnout at high temperature.

• Wide voltage input, supports 7V-28V voltage input.

• IRC Tramp protocol, OSD settings adjustment.

• Built-in microphone can provide real-time audio transmission.

• One adjustment button, three indicator lights, easy operation.

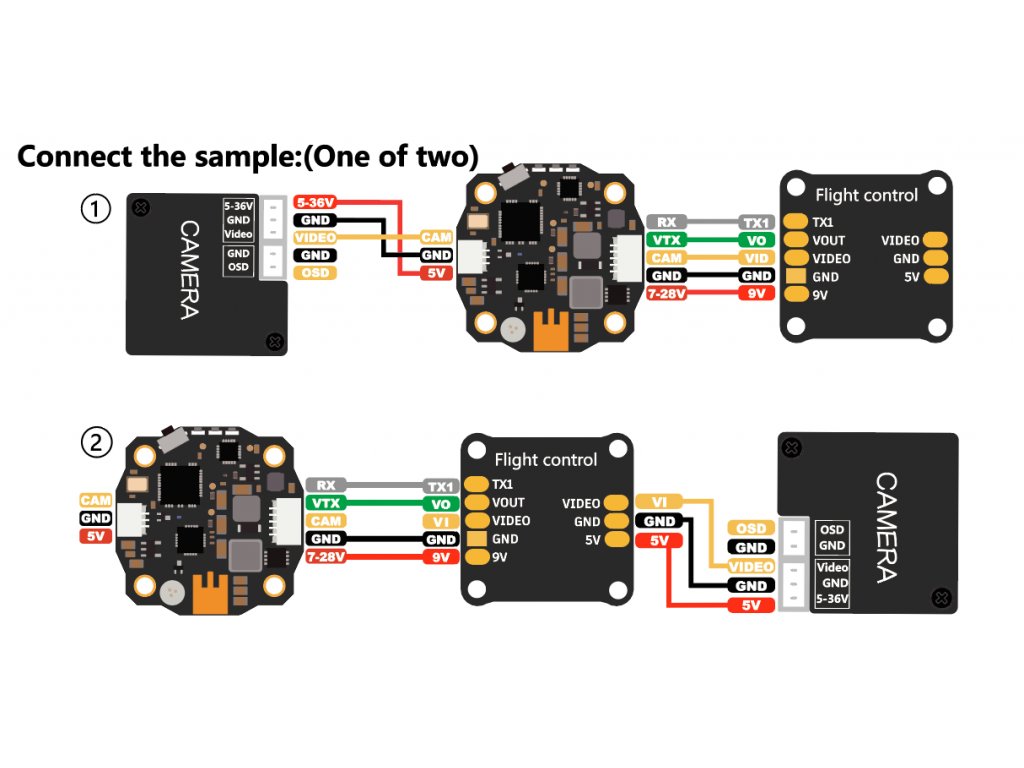

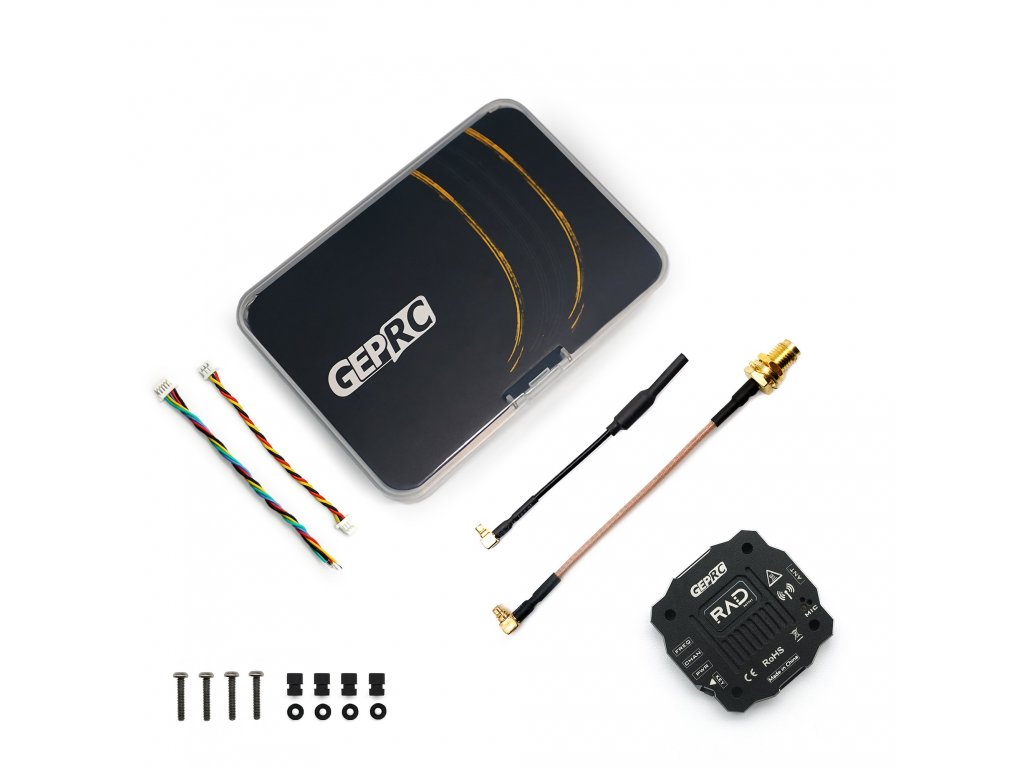

Package contents:

• 1 x GEPRC RAD MINI 5.8G 1W VTX
• 1 x 80mm MMCX antenna
• 1 x MMCX to SMA (Internal Foramen) connector.
• 1 x SH.0 5pin VTX cable (100MM)
• 1 x SH1.0 to SH1.25 camera cable (65MM)
• 1 x set of screws
