GEPRC Hobby Triple Feed Patch 1 (SMA Male)

Brand: GEPRC
€17,98 €14,86 excl. VAT
In stock (2 pcs)
Delivery to:
04.04.2025
Delivery offer

Detailed information

Product detailed description

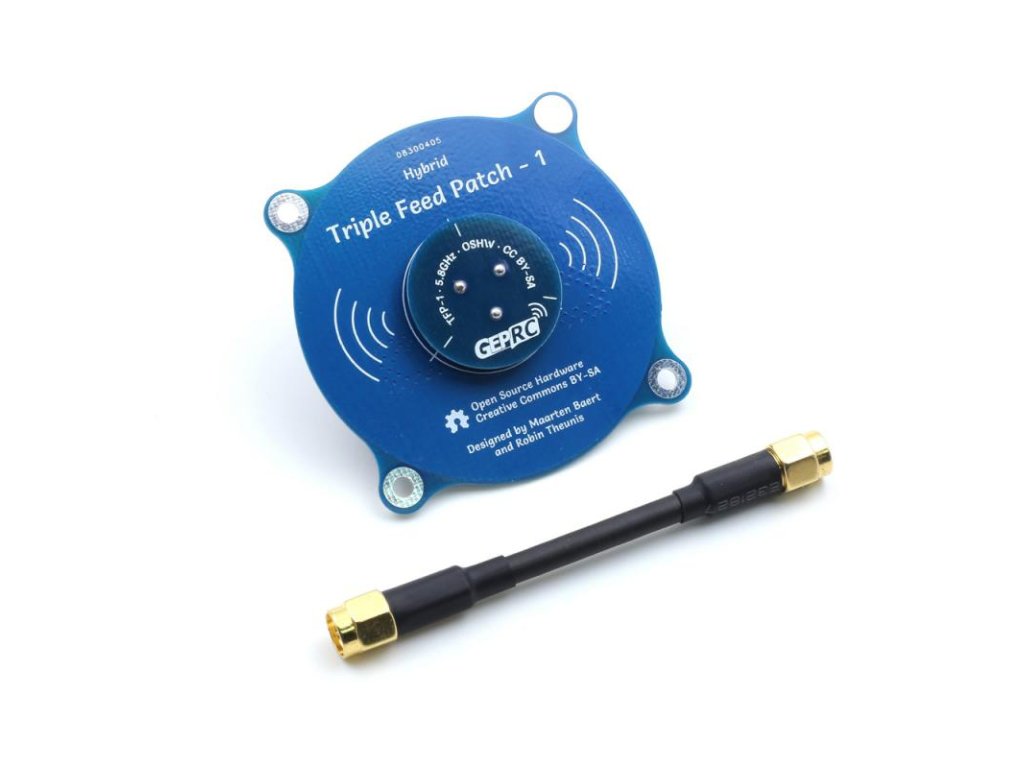

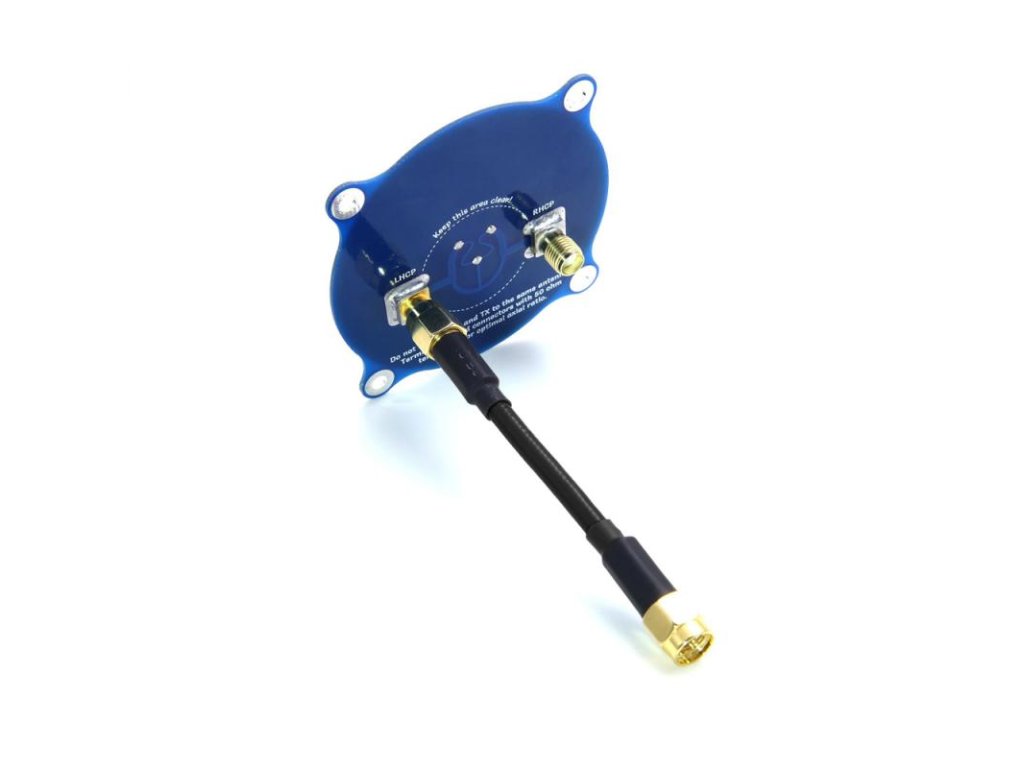

The GEPRC Hobby Triple Feed Patch 1 antenna (SMA Male) is a directional, circularly polarized antenna designed for the 5.8 GHz frequency, making it ideal for FPV applications. Thanks to its directionality, it provides a clear and strong signal reception, which is beneficial when flying over longer distances.

Technical specifications:

  • Center frequency: 5.8 GHz
  • Bandwidth: 660 MHz (5.47–6.13 GHz)
  • Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
  • Axial ratio: < 1.3
  • Antenna gain: 9.4 dBi
  • Beamwidth: 55° (horizontal and vertical)

Examples of RHCP and LHCP signal transmission usage:

Circular signal polarization can be either right-hand (RHCP) or left-hand (LHCP). It is important that both the transmitting and receiving antennas have the same polarization for optimal signal transmission.

  • RHCP (Right-Hand Circular Polarization): This type of polarization is commonly used for transmitting analog video signals (e.g., HDZERO, etc.).
  • LHCP (Left-Hand Circular Polarization): LHCP antennas are often used in conjunction with digital video transmission systems – such as Walksnail or DJI.

Package contents:

  • 1x Antenna
  • 1x SMA extension cable

Price per piece
