GEP-MK5D O3 DeadCat FPV frame

Product detailed description

New frame from GEPRC in the shape of the so-called Deatcat, which ensures a view without propellers in the image of FPV cameras DJI O3, Caddx/Walksnail, Foxeer, etc. Solid and durable construction will ensure flight without unwanted vibrations.

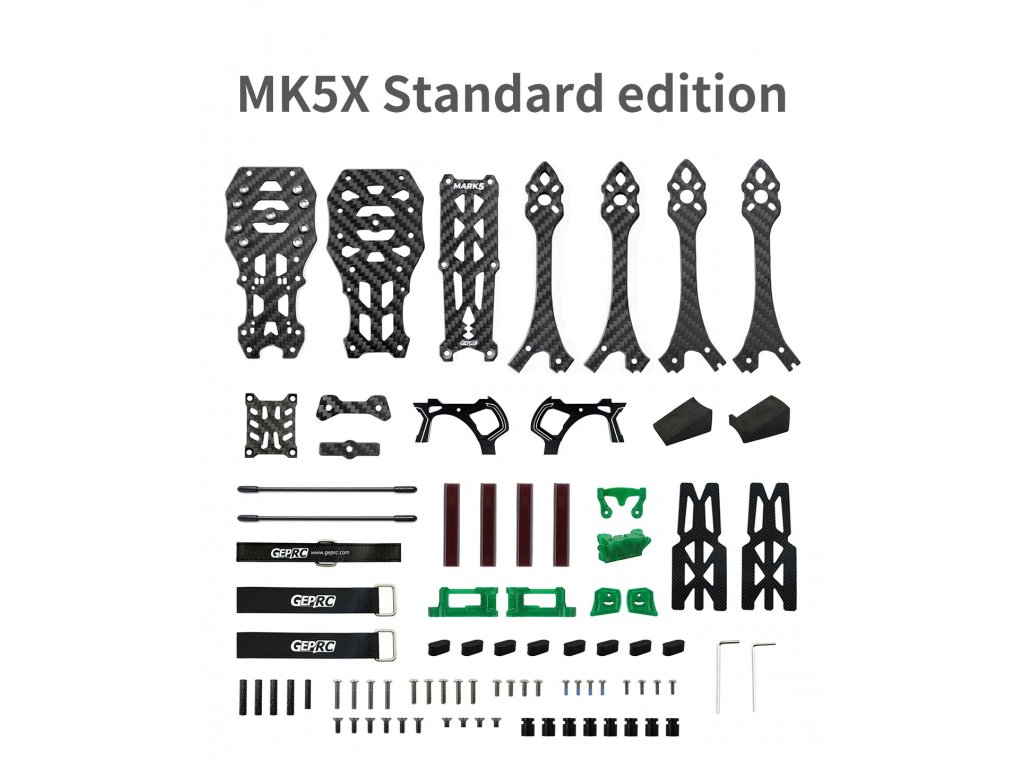

The frame is standard edition and includes:

• 1 x 2.0 mm small top plate

• 1 x 2.5 mm large top plate

• 1 x 2.5 mm front bottom plate

• 1 x 2.5 mm rear bottom plate

• 2 x 5.0 mm front arms

• 2 x 5.0 mm rear arms

• 1 x 5.0 mm arm end plate

• 1 x 2.0 mm front protection plate

• 1 x aluminium camera part

• 1 x set of screws

3D printed parts in green:

• 1 x camera vibration reduction bracket

• 1 x O3 VTX bracket

• 1 x VTX antenna bracket

• 1 x TBS antenna bracket

Accessories:

• 1 x M15x250 battery straps

• 2 x M20x250 battery straps

• 2 x Battery anti-slip pad

• 8 x EVA FC shock absorbing pads

• 1 x 3M double-sided tape

• 1 x 1.5mm L type screwdriver

• 1 x 2.0 mm L screwdriver

• 1 x antenna fixed tube
