Product detailed description

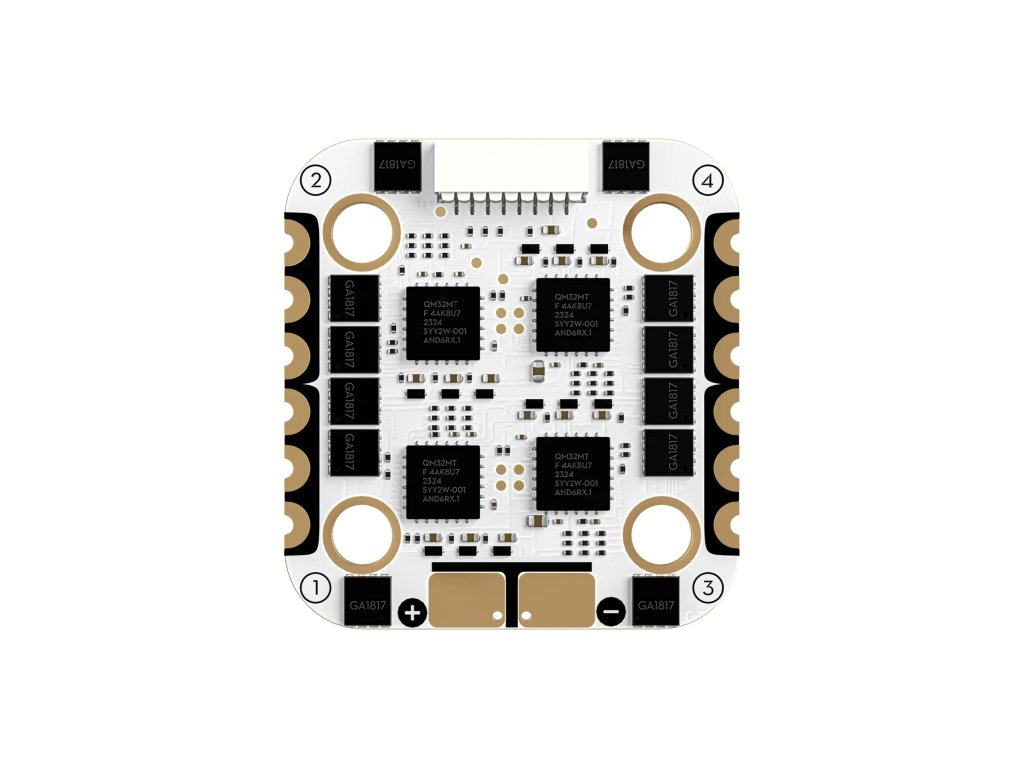

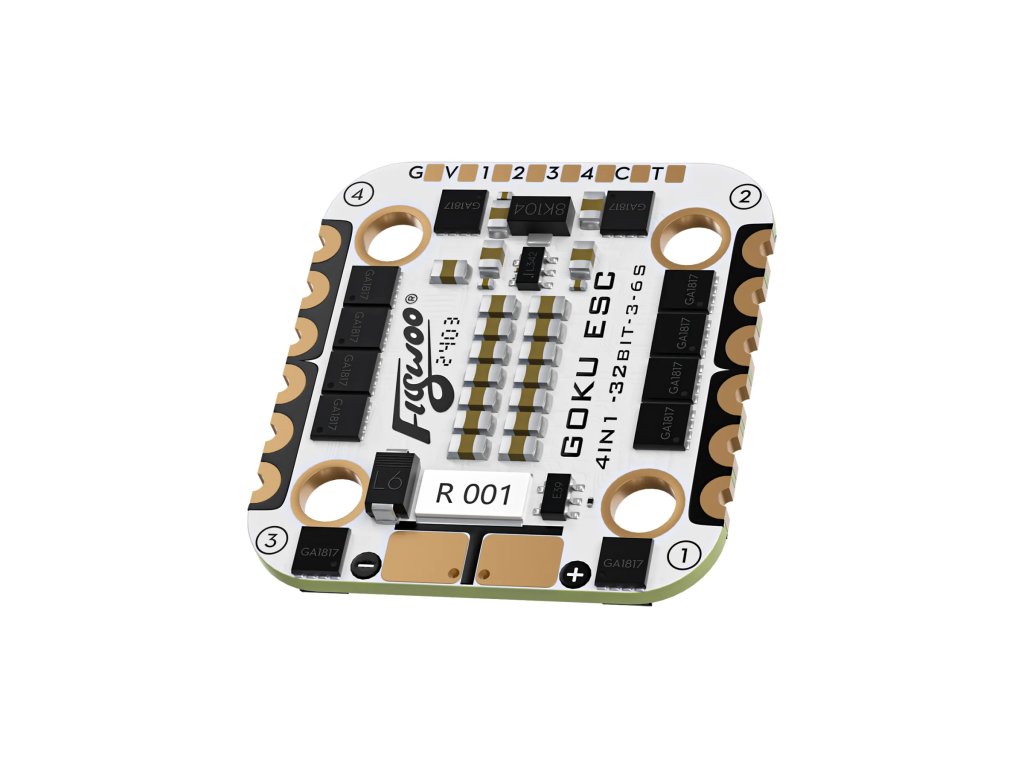

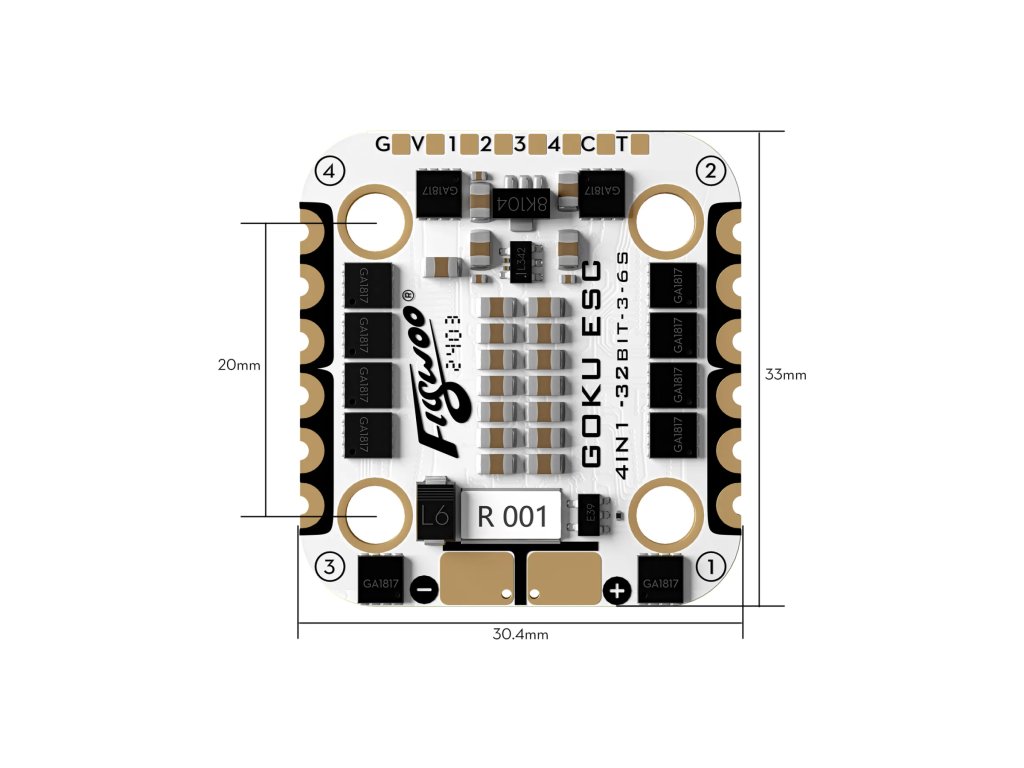

The GOKU G45M is a high-performance ESC with a continuous current load of 45A and 32-bit processing speed. It features AM32 firmware that supports bidirectional DSHOT and telemetry with a maximum refresh rate of 128K. Key features include the AT32 dual-in-one chip, imported MOSFETs, high quality ceramic capacitors and a 6-layer PCB design that reduces heat and increases efficiency. Compatible with DShot1200, PWM and Oneshot signals.


Key Features:
-
High Performance Chip: Utilizes a new generation of dual-in-one AT32 main control chip. Imported MOSFETs and high quality ceramic capacitors for better efficiency and performance. Powerful features. Compatibility.
Specifications:
- Name: GOKU G45M AM32 4in1 ESC
- Support AM32
- Support Dshot300, Dshot600, Dshot1200
- PWM frequency: 24k-128k
- Input Voltage: 2-6S Lipo
- Continuous current: 45A
- Firmware: GOKU_F4A32_PRO
- Weight: 6.4g
Package Contents:
- 1x FC to ESC interconnect cable
- 1x Capacitor
- 4x M2 damping pads
- 1x XT30 cable
