Flysky FS-i6X with X6B receiver
Related products
Product detailed description

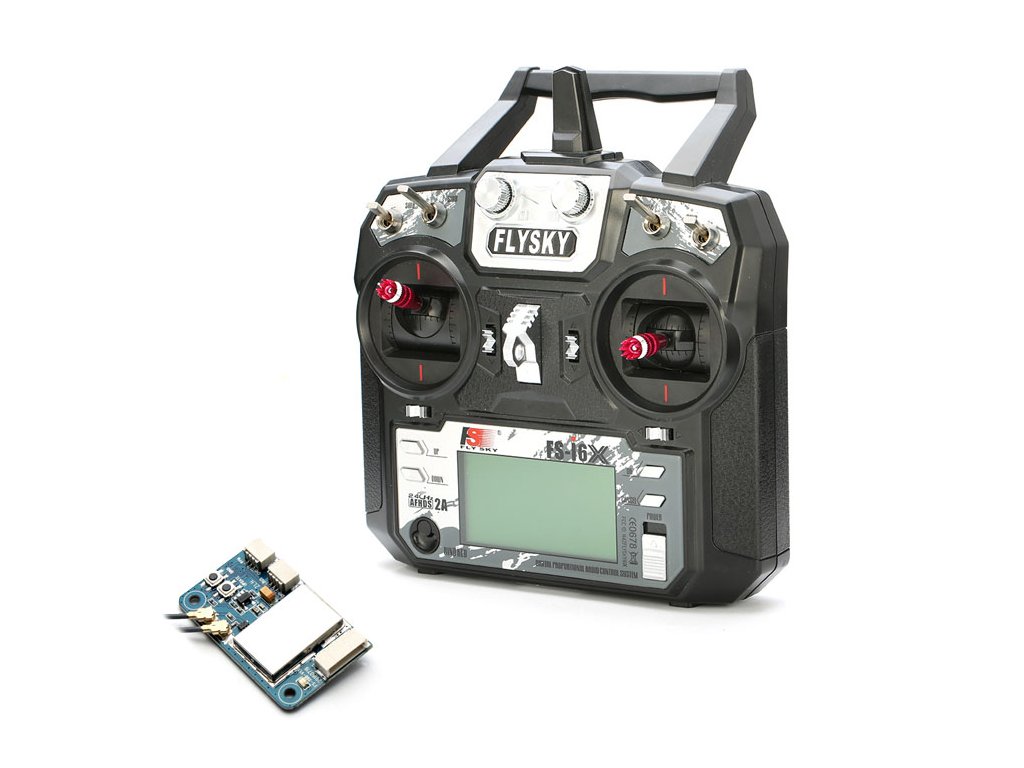

TheFS-i6X transmitter and FS-X6B receiver form the 2.4 GHz AFHDS2A RC system. This system offers excellent interference protection while maintaining lower power consumption and high reliable receiver sensitivity. It is specially developed for all radio control models. Suitable set for beginner FPV drone pilots.
Comes with both transmitter and receiver for easy pairing!
Features:
AFHDS2A (Automatic Frequency Hopping Digital System Second Generation) Technology. Offers superior interference protection while maintaining lower power consumption and high reliable receiver sensitivity. Receives data from temperature, altitude and many other types of sensors, servo calibration and i-BUS support. Unique ID recognition system, each transmitter and receiver has its own unique ID to prevent interference. Low power consumption, consuming only one tenth of the power of a standard FM system, greatly extending battery life. FS-iA6B receiver compatible with FS-i6X, FS-i4, FS-i6, FS-X6B, FS-i10, FS-GT2E, FS-GT2G transmitter.

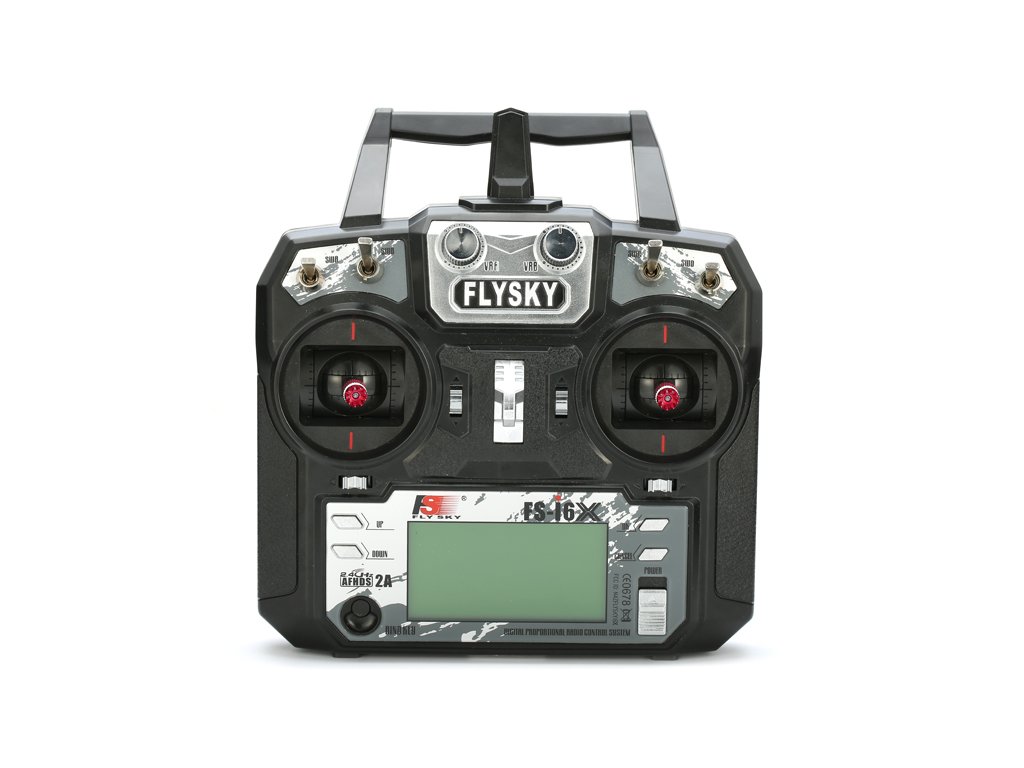

FS-i6X transmitter specifications:
Mode 2 - left throttle lever
RF range: 2.408-2.475 GHz
RF power: <20dBm
RF channel: 135
Bandwidth: 500 kHz
2.4 GHz System: AFHDS 2A / AFHDS
Modulation Type: GFSK
Resolution: 4096
Low Voltage Warning: <4.2V
DSC port: PS/2 port
Rechargeable: No
Antenna Length: 26 mm (dual antenna)
Weight: About 400 g

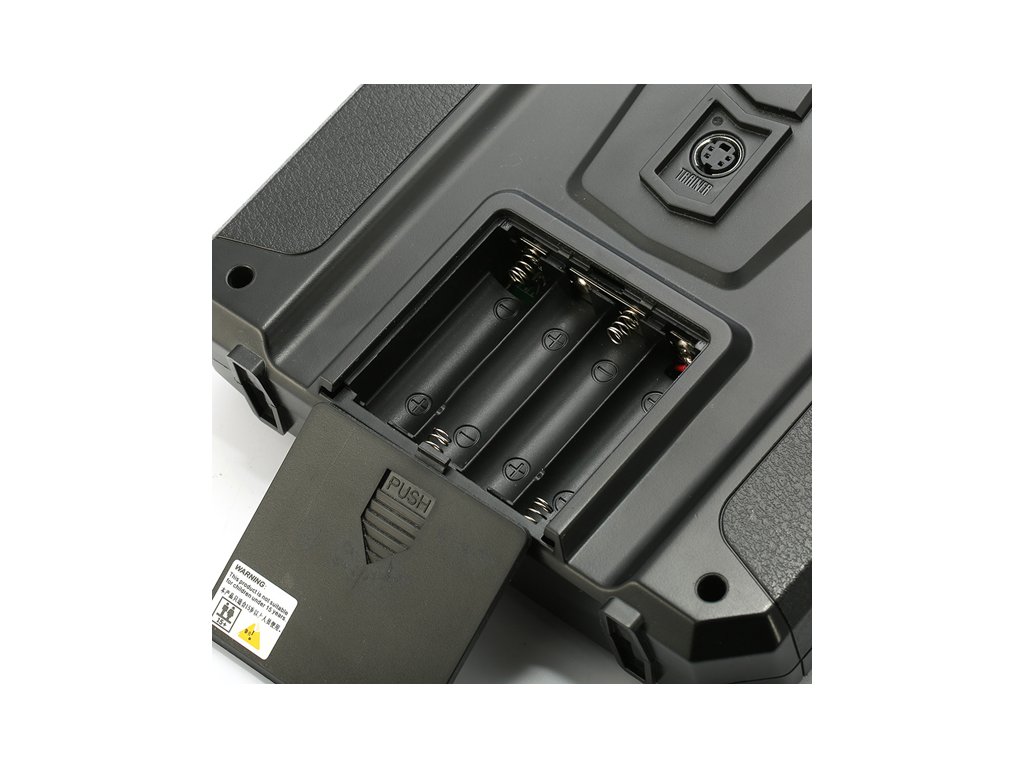

Power: 4 * AA batteries (not included)
Display: LCD with white backlight
Size: 190*174*89mm
Black color
Certificate: CE0678
FS-X6B Receiver Specifications:
Ports:
- PWM signal port: GND, VCC. Output channels 1-6 PWM.
- PPM signal port: Standard PPM signal output.
- i-BUS signal port: i-BUS signal output, up to 18 channels.
- External power sensor port (connector 1S-4S) +0 to +18V
