FATSHARK HDO V2 - FPV GLASSES

Product detailed description

The Dominator HDO2 headset is being launched as the successor to the very popular Dominator HDO. The HDO2 uses a large 1280 x 960 OLED display to provide an enhanced image with a 46 degree FOV. Customization of the display is now possible with a new OSD with enhanced controls. The HDO2 can be further customized with adjustable focus, adjustable IPD, adjustable faceplate curvature, selectable aspect ratio and a configurable power button. The HDO2 is the perfect headset for any pilot looking for the best flight experience.

SPECIFICATIONS:

OPTICS:

• FOV (field of view): 46 degrees diagonal

• IPD (interpupillary distance): 59 to 69 mm (adjustable)

• Focus: +2 to -6 diopters (adjustable)

DISPLAY:

• Two 0.5" Sony OLED displays

• Resolution 1280 X 960

• Automatic NTCS/PAL selection

• AV mode 4:3

• AV mode 16:9

• HDMI 16:9 mode

SOUND:

• Stereo

USER CONTROL:

• Channel selection

• Volume control

• Mode selection

• Display control (brightness and contrast)

• DVR control

• Power button / fan control

• Power: 7 - 13V input voltage (2S - 3S power supply)

• Power consumption: 320 mA at 7.5V input (no RX module)

• 770 mA input power at 7.5 V (Rapid

• Analog DVR: Support microSD up to 32 GB

• Recording Speed: 6 Mbps (MJPG compression, 30 fps, AVI)

• File playback (native recording, no codec support)

• Upgradable via SD card

• Dimensions: 169.2 x 80 x 45.5 mm
• Weight: 206.8 g

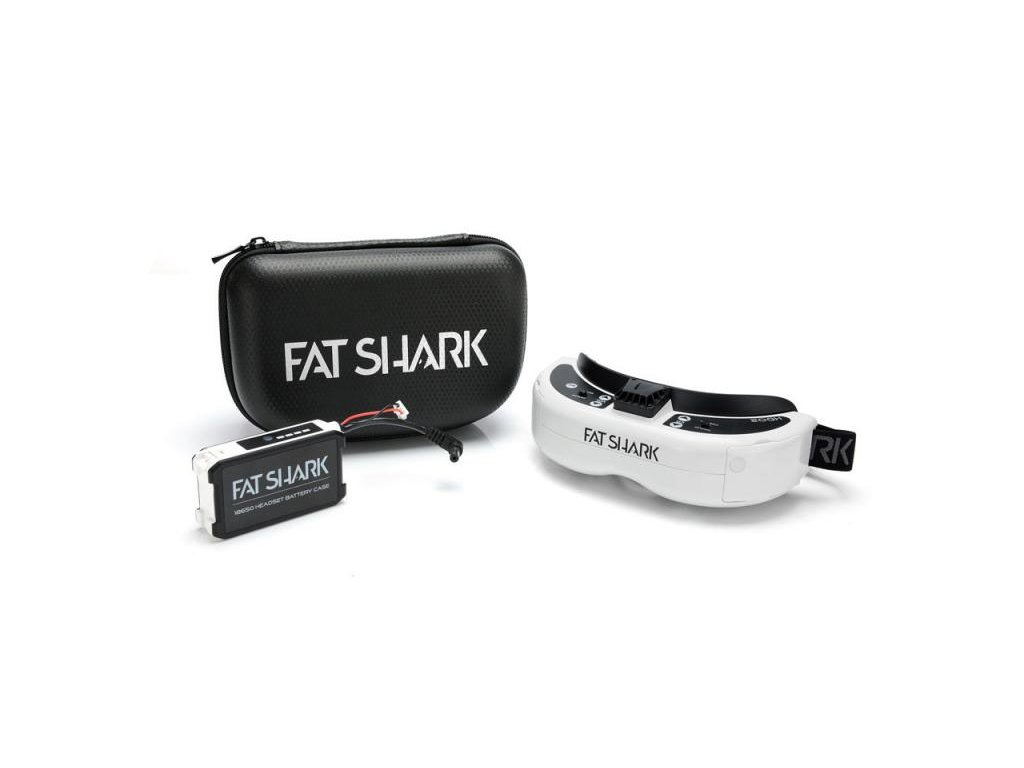

PACKAGE CONTENTS:

• 1 x Fat Shark Dominator HDO 2 FPV goggles

• Packaging

• 7.4 V 18650 battery case (batteries not included)

• Display cleaning cloth
