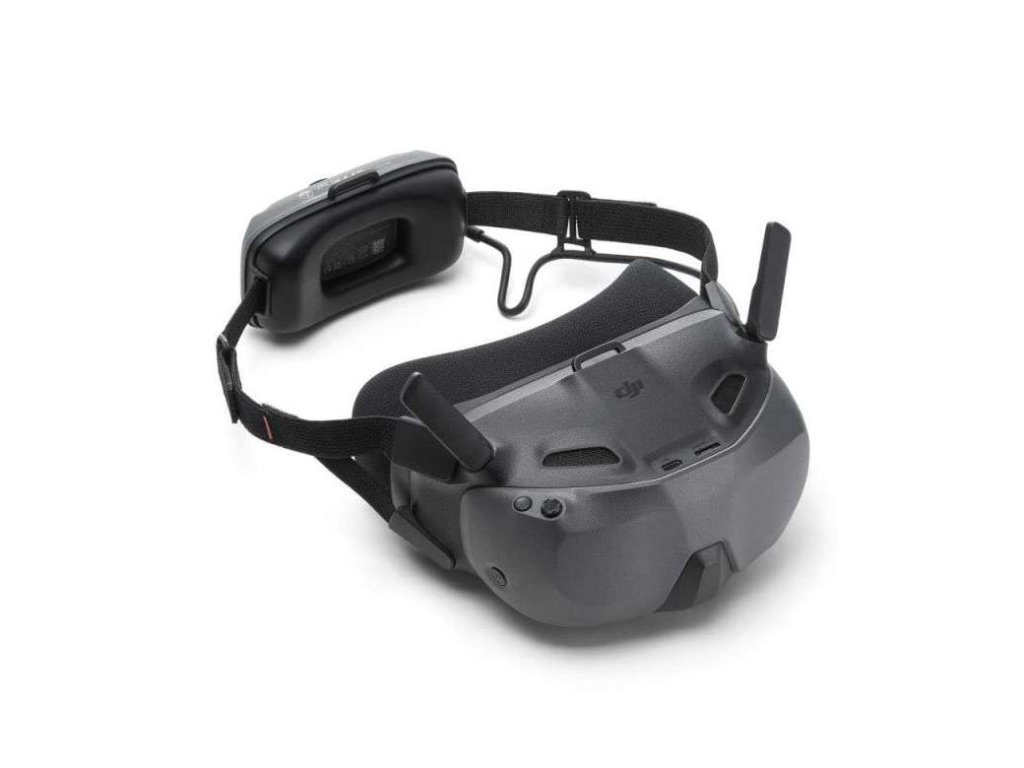

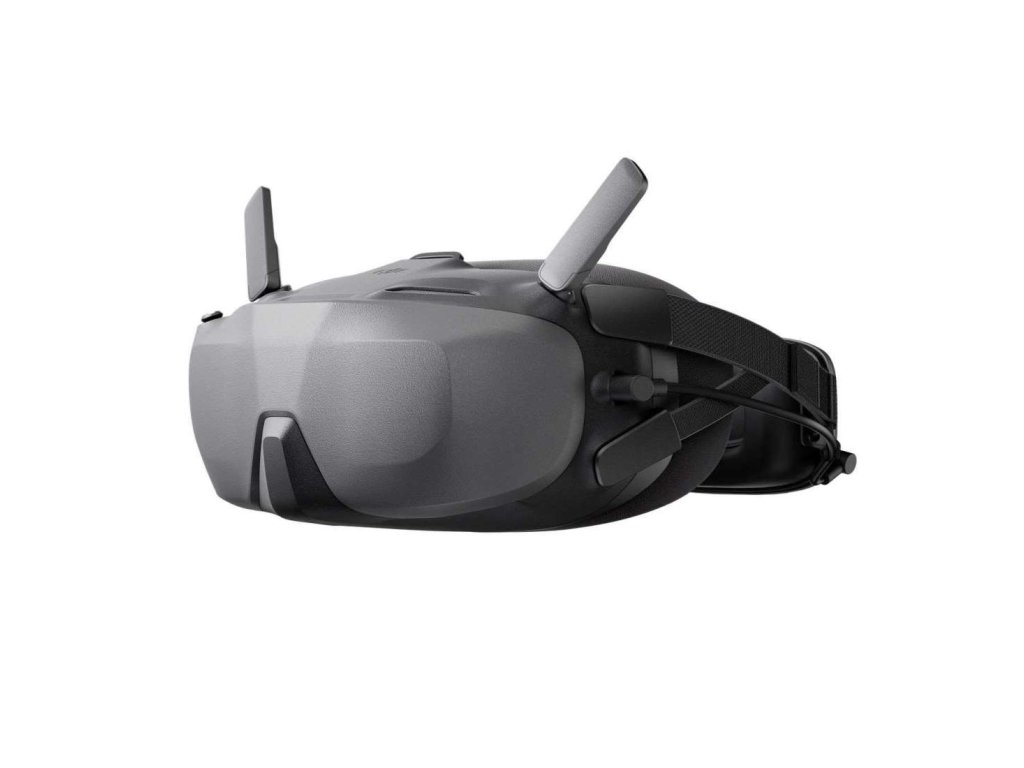

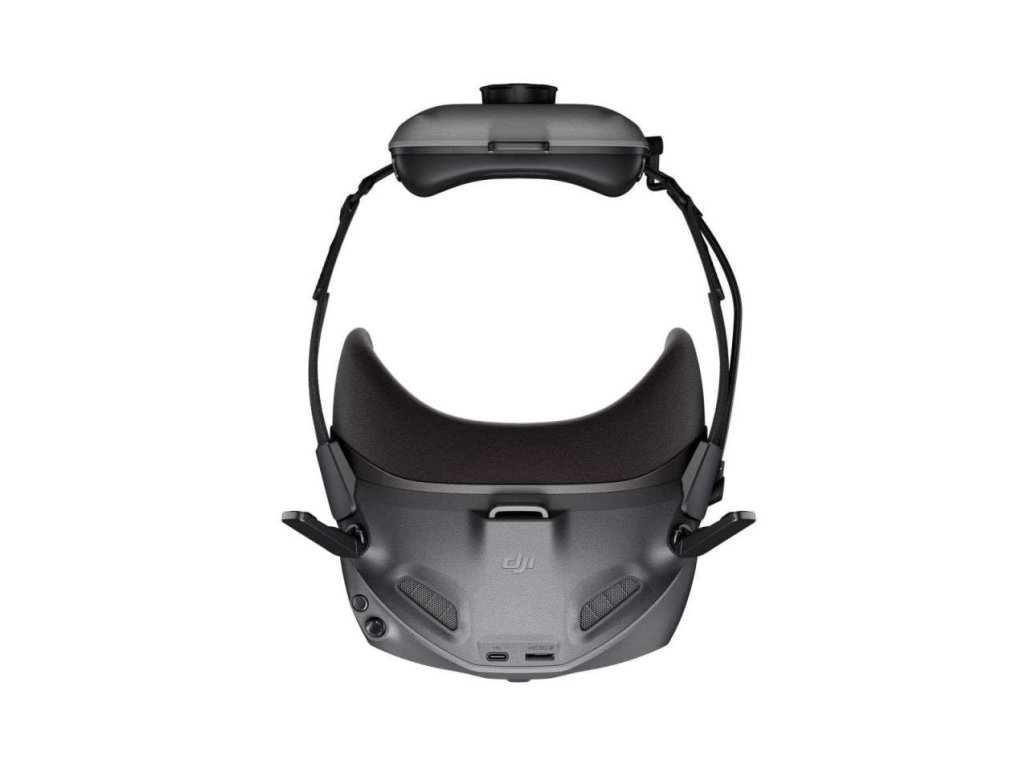

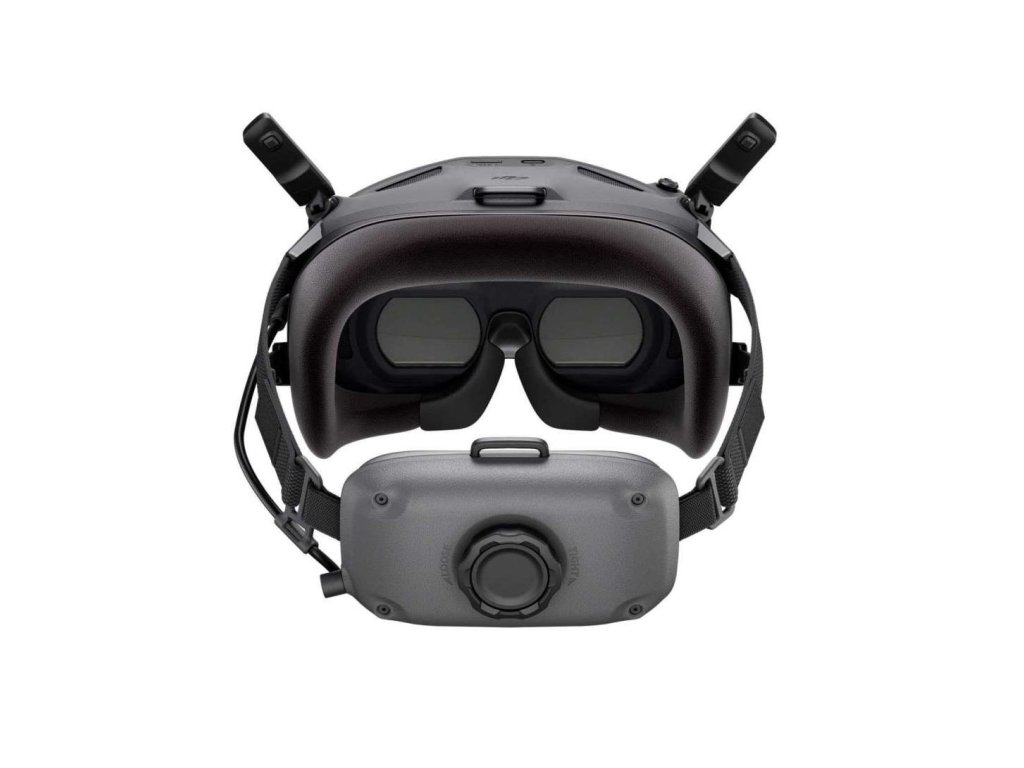

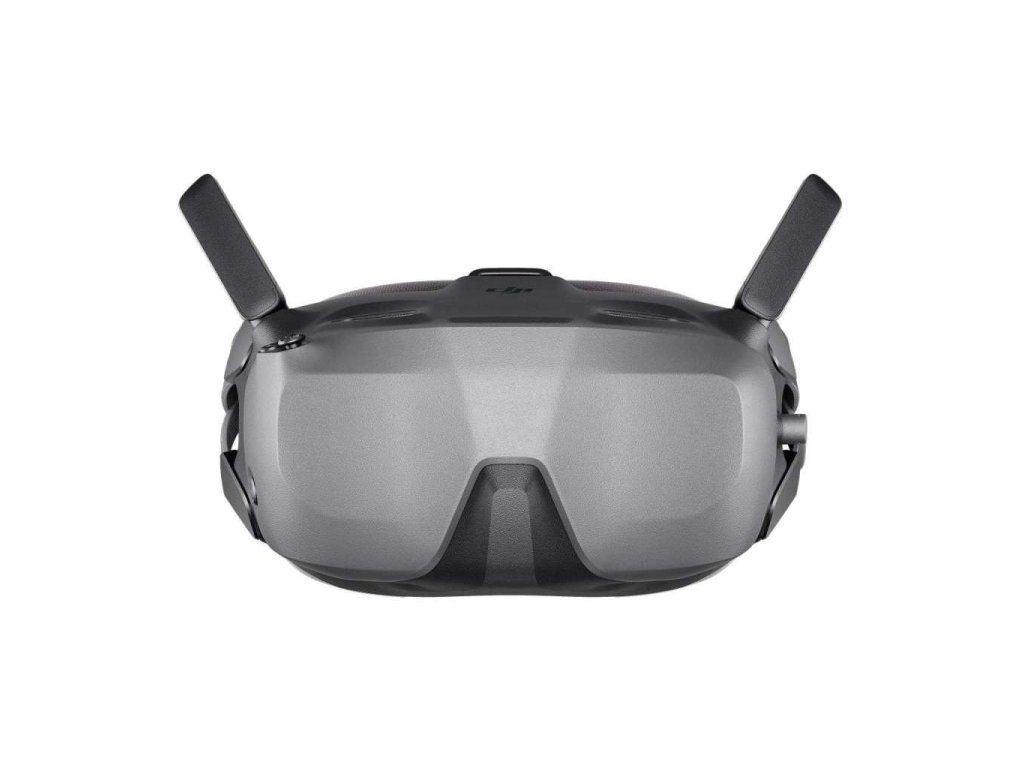

DJI Goggles N3
Product detailed description
The N3 FPV goggles are an affordable option in the box-style FPV goggles category with digital video transmission. Designed for the O4 system, they offer a wide 54° field of view (FOV) and feature a 3.5" LCD display with Full HD resolution (1080p) and a 60Hz refresh rate. Thanks to their ergonomic design, they can also be used with prescription glasses.
The built-in 2450mAh battery provides up to 2.7 hours of operation, allowing for longer flights without frequent recharging. The goggles can be connected to a smartphone via a USB-C cable for live video streaming in the app. Additionally, they feature a DVR function, enabling video recording directly to a microSD card (up to 512GB, MOV format, H.264).
Key Features:
- Compact and lightweight FPV goggles with a wide field of view
- 3.5" LCD display (1080p, 60Hz) for sharp and smooth images
- Built-in battery with up to 2.7 hours of operation
- USB-C connection to a smartphone for live video viewing
- DVR recording on a microSD card (up to 512GB)
- Compatible with the O4 system, Neo, and various FPV drones
- Supports RaceMode for FPV racing
Technical Specifications:
📌 Physical Specifications:
- Weight: 536g
- Dimensions: 193 × 163 × 103 mm (with folded antennas)
📌 Display & Optics:
- Screen size: 3.5" LCD
- Resolution: 1080p (Full HD)
- Refresh rate: 60Hz
- Field of view (FOV): 54°
📌 Transmission System:
- Frequency range: 2.400-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz
- Transmission power (EIRP):
- 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/MIC/KC)
- 5.1 GHz: < 30 dBm (FCC), < 21 dBm (CE)
- 5.8 GHz: < 33 dBm (FCC), < 30 dBm (SRRC), < 14 dBm (CE)
- Maximum transmission bitrate: 60 Mbps
- Maximum video transmission: 1080p / 60Hz
📌 Recording (DVR):
- Format: MOV (H.264)
- Supported microSD cards: up to 512GB
📌 Power & Battery:
- Capacity: 2450mAh
- Voltage: 6.33 – 8.4V
- Type: Li-ion
- Energy: 17.64Wh
- Battery life: up to 2.7 hours
- Charging: 5V / 3A
📌 Package Contents:
- 1× FPV Goggles N3
The N3 FPV goggles are an excellent choice for FPV pilots looking for high-quality digital video transmission, low latency, and broad compatibility with various systems. Perfect for freestyle and racing flights! 🚀
