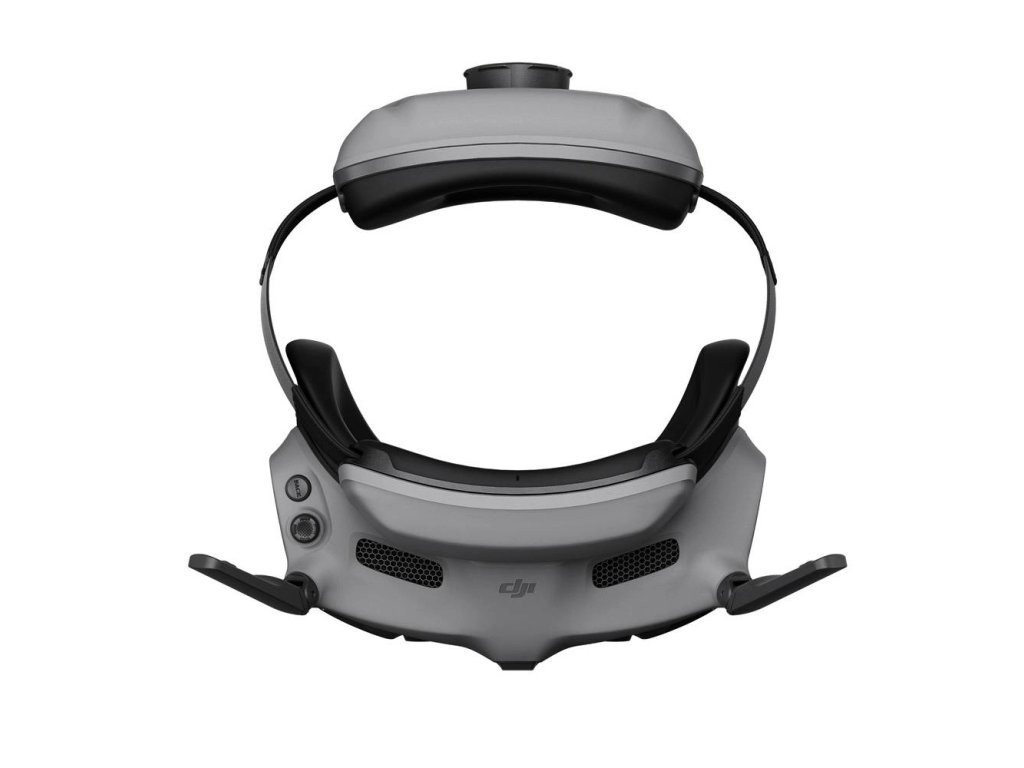

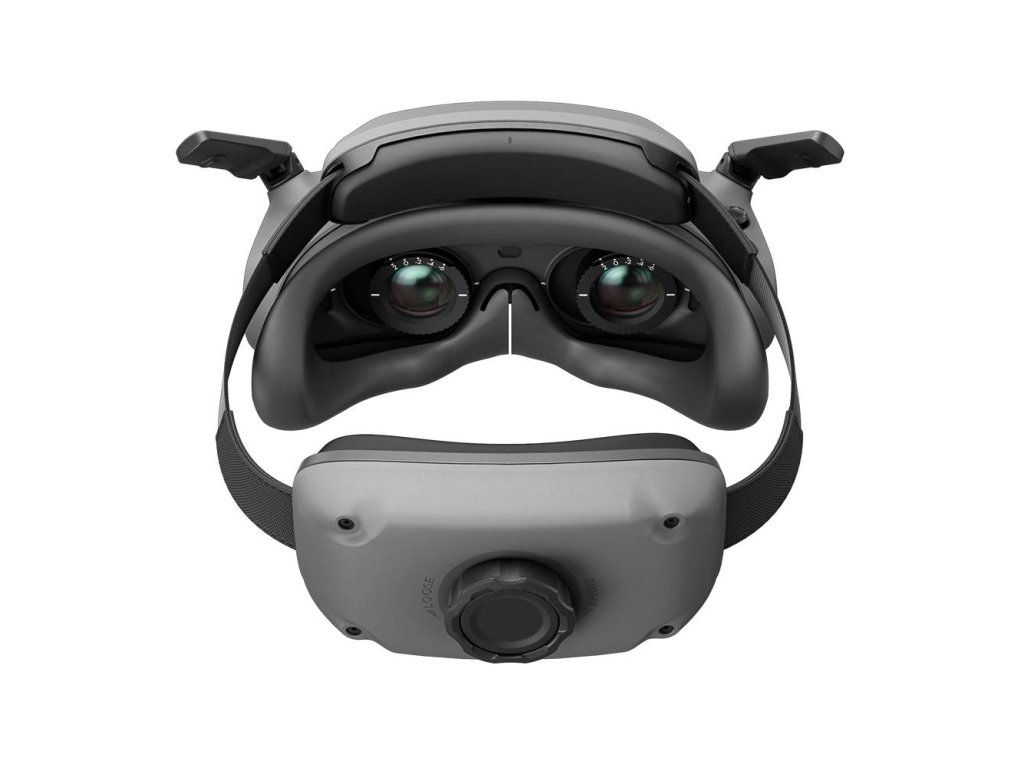

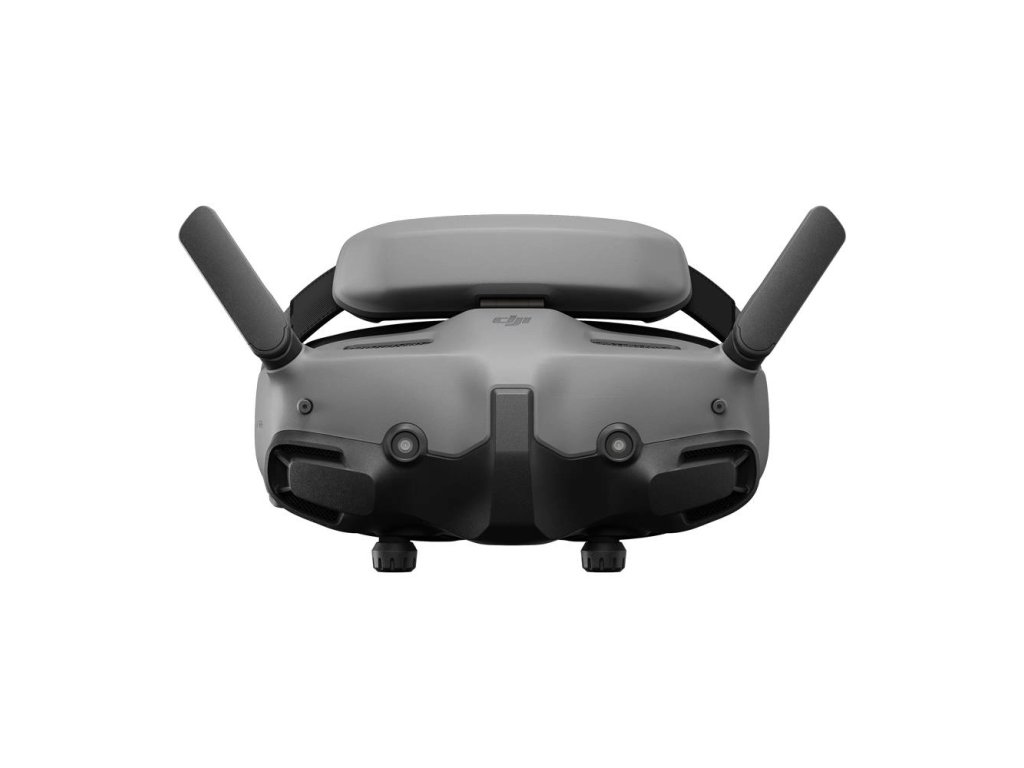

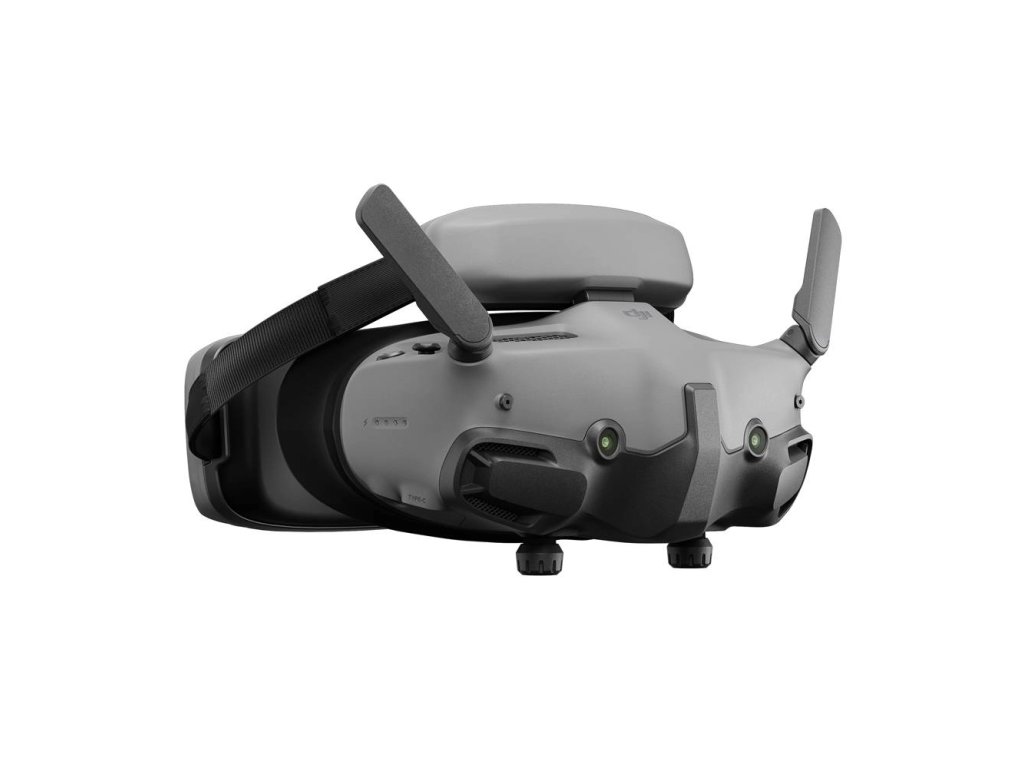

DJI Goggles 3

Product detailed description

DJI Goggles 3 feature high-resolution micro-OLED displays and support ultra-low latency transmission.

Note: Now with DJI Goggles 3 Firmware update:v01.00.0300 (and higher), Goggles 3 are backwards compatible with DJI O3 units! You must update your Goggles 3 and O3 Air Unit to the latest firmware.

Features

• DJI O4 compatible - DJI O3 compatibility is now available through a firmware update! Ultra-low latency Real-View picture-in-picture transmission Micro-OLED HD display DJI Goggles 3 O4 video transmission, compatible with Air 3 and Mini 4 Pro
• With Avata 2, O4 video transmission offers ultra-low latency of 24 ms and high bitrate of 60 Mbps. Also compatible with the Air 3 and Mini 4 Pro, the reliable O4 HD transmission provides a crystal clear and smooth first-person view.
• Real View PiP, safety in sight
• You can conveniently observe your surroundings without removing your glasses, enhancing flight safety.
• Convenience and practicality
• Dazzling enhancements: Enjoy a 1080p micro-OLED screen with a refresh rate of up to 100 Hz*, along with TüV Rheinland Low Blue Light certification. Customizable diopter adjustment from -6.0 D to +2.0 D for nearsighted and farsighted users.
• Lightweight, comfortable design with integrated headband frees you from tangled cables and offers a long operating time of up to 3 hours.
• One-touch defogging: With the defogging function enabled, you get a convenient solution for sudden temperature changes or high humidity.
• More fun with wireless streaming
• Stream your flight in real-time on the DJI Fly app on your smartphone via Wi-Fi connection.
• You can also import panoramic and 3D videos to your SD card and play them back using Goggles 3 for an immersive experience that seems almost within reach.

Gogglesspecifications

• Operating temperature: -10°C to 40°C (14°F to 104°F)
• Supported SD cards: microSD (up to 512 GB)
• Diopter adjustment range: -6.0 D to +2.0 D
• Weight: Approximately 470 g (including battery)
• Resolution (single screen): 1920×1080
• Screen size (one screen): 0.49 inches
• Video Recording Format: MOV
• Input Power: Built-in battery
• Refresh Rate: Up to 100 Hz
• Field of view (single screen): 44°
• Actual field of view: 44°
• Model: TKGS3

Supported video and audio playback formats

• 3D Video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU)
• Panoramic Video: Spherical 2D panoramic video
• Video encoding formats: H.264, H.265
• Maximum video specification: 4K/60fps
• Audio formats: AAC, PCM

Dimensions (L×W×H)

• With antennas folded: 170×109×112 mm
• With antennas unfolded: 205×109×112 mm
• Interpupillary distance range: 56-72 mm

VIDEO TRANSMISSION

• Maximum transmission distance: 13 km (FCC); 10 km (CE/SRRC/MIC)
• Maximum video bitrate: 60 Mbps
• Latency with DJI Avata 2:
  • 1080p/100fps video transmission quality: up to 24 ms latency
  • 1080p/60fps video quality: latency up to 40 ms
• Transmitter output power (EIRP):
  • 2.4 GHz: < 20 dBm (CE/SRRC/MIC), < 33 dBm (FCC)
  • 5.1 GHz: < 23 dBm (CE)
  • 5.8 GHz: < 30 dBm (SRRC), < 33 dBm (FCC), < 14 dBm (CE)

Operating frequency

• 2.4000-2.4835 GHz
• 5.150-5.250 GHz
• 5.725-5.850 GHz

DJI Goggles 3 are currently compatible with the following devices:

• DJI O3 Air Unit - latest FW
• DJI O4
• DJI Avata 2
• DJI Mini 4 Pro
• DJI Air 3
• DJI RC Motion 3
• DJI FPV Remote Controller 3
• DJI RC-N2
• DJI RC 2

BATTERIES

• Maximum charging power: 20 W (charging at power off)
• Charging Temperature: 0° C to 50° C (32° F to 122° F)
• Dimensions: 121×65×52.5 mm (L×W×H)
• Chemical system: LiNiMnCoO2
• Operating Time: Approximately 3 hours
• Capacity: 3000 mAh
• Voltage: 5.6-8.4 V
• Energy: 21.6 Wh
• Category.

WIFI

• Protocol: 802.11 a/b/g/n/ac
• Transmitter output power (EIRP):
  • 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
  • 5.1 GHz: < 20 dBm (FCC/CE/MIC)
  • 5.8 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

Operating frequency

• 2.4000-2.4835 GHz
• 5.170-5.250 GHz
• 5.725-5.850 GHz

BLUETOOTH

• Operating frequency: 2.400-2.4835 GHz
• Transmitter output power (EIRP): < 10 dBm
• Protocol: Bluetooth 5.0
• GFSK

Operating frequency

• 2.4000-2.4835 GHz
• Transmitter output power (EIRP): < 20 dBm (CE/SRRC/MIC), < 26 dBm (FCC)

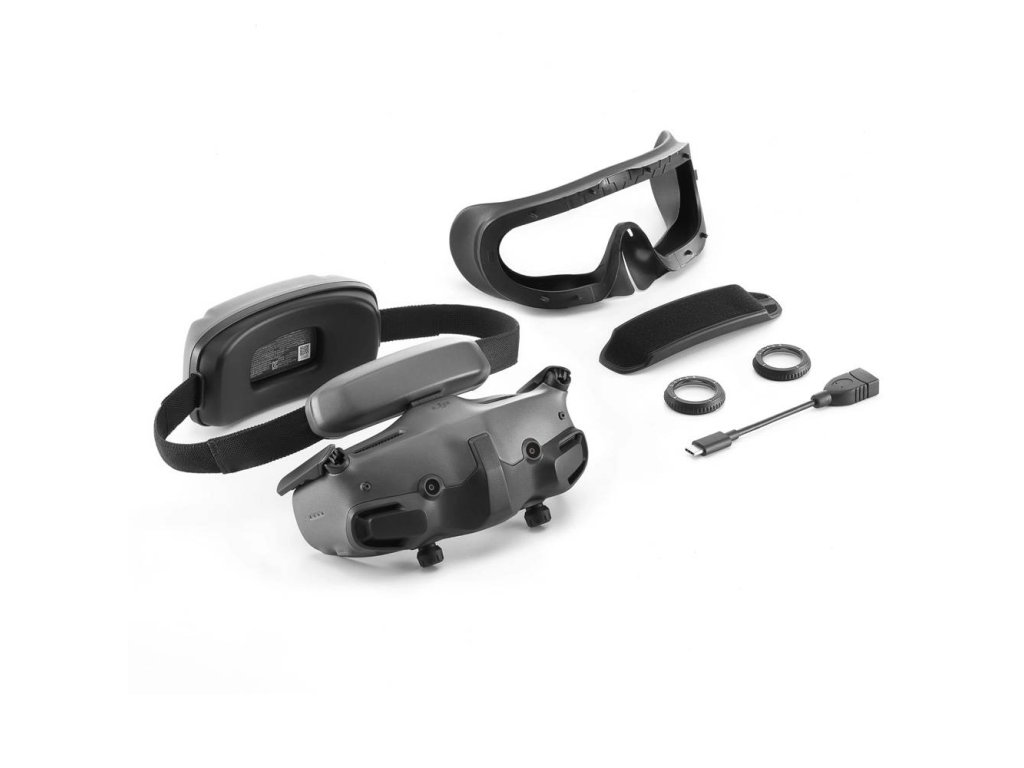

Package contents

• 1x DJI Goggles 3 -2.0D correction lenses (pair)
• 1x Additional DJI Goggles 3 frontal padding
• 1x DJI Goggles 3 foam padding
• 1x USB-C OTG cable
• 1x DJI Goggles 3
