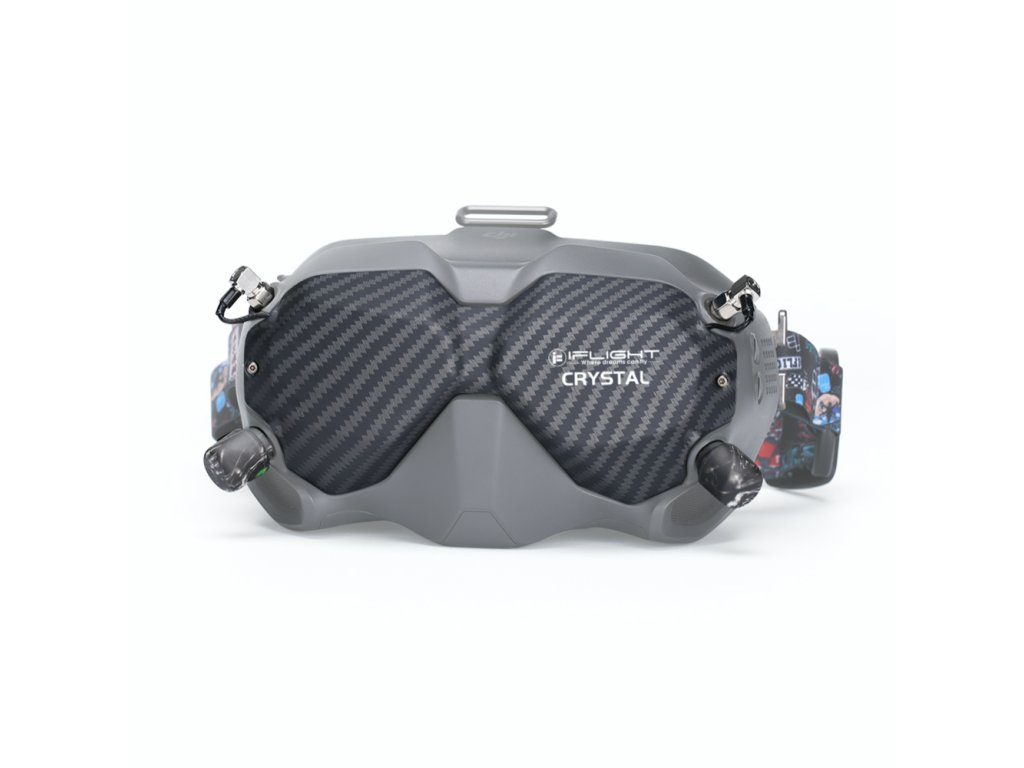

Crystal HD Patch 5.8GHz Directional Antenna CARBON

New product
Brand: iFlight
€55,26 €45,67 excl. VAT €55,26 / 1 pcs
Sale ended
Delivery offer

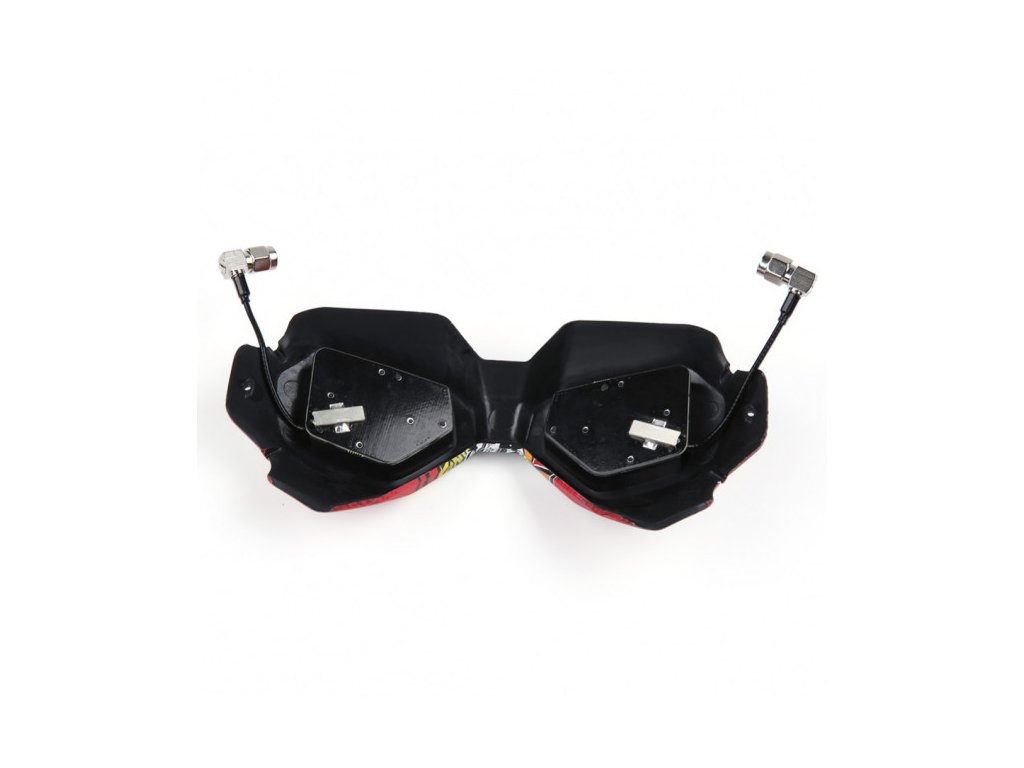

iFlight Crystal HD 5.8 GHz directional antennas! Specially designed for DJI digital FPV goggles

Detailed information

Product detailed description

Two carefully designed and highly sensitive high-gain directional LHCP antennas give you better reception over long distances, as well as better penetration through trees or other difficult terrain. Low-profile design to keep package size to a minimum and high quality RG178 cables for best durability. 105 degree horizontal beam and 75 degree vertical beam at 9 dBi gain. Low loss with 93% antenna efficiency and axial ratio ≤1.6 across the entire band.

crystal-hd-antenna-20

Crystal-hd-antenna-details-2

Crystal-hd-antenna-details-3

Crystal-hd-antenna-details-7

Specifications:

PATCH antenna:

  • Frequency: 5.8 GHz
  • Bandwidth: 5600~5900 Mhz
  • Gain: 9 dBi
  • Axial Ratio: ≤1.6
  • Impedance: 50Ω
  • Radiation efficiency: 93%
  • Beamwidth: 105°H. 75°E.
  • Polarization: (LHCP)
  • Cable: RG178
  • Connector: RP-SMA
  • Dimensions: 16 mm x 7 mm x 3 mm
  • Weight: 52.1 g

Package Contents:

  • Crystal HD Patch LHCP - Carbon
