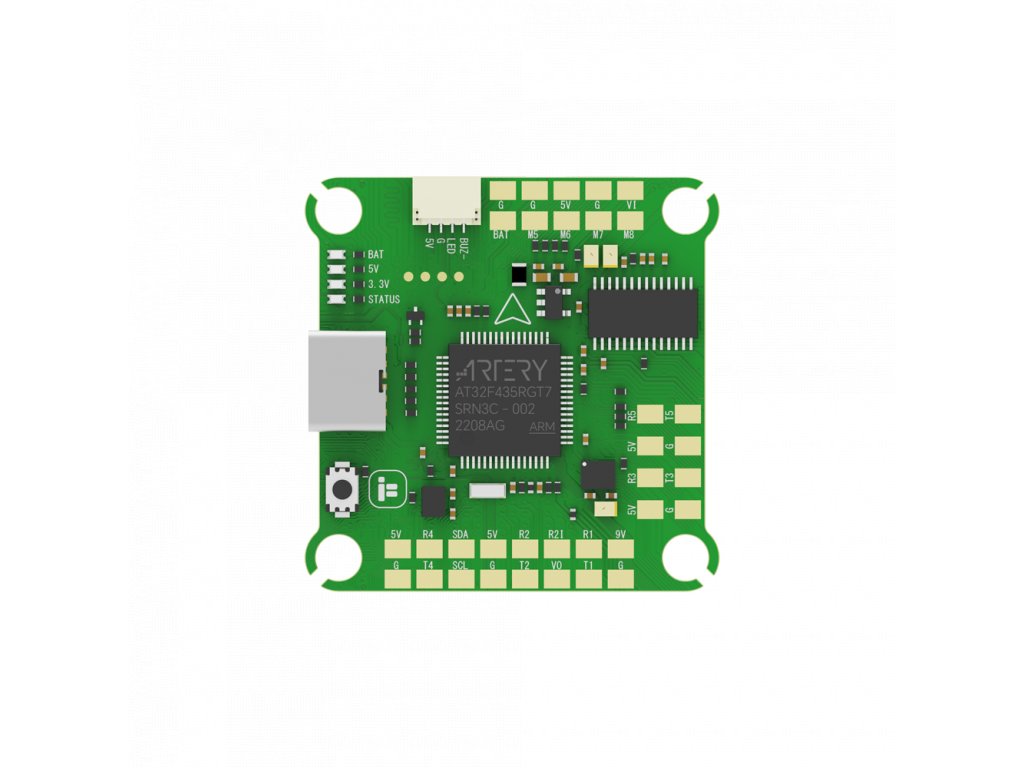

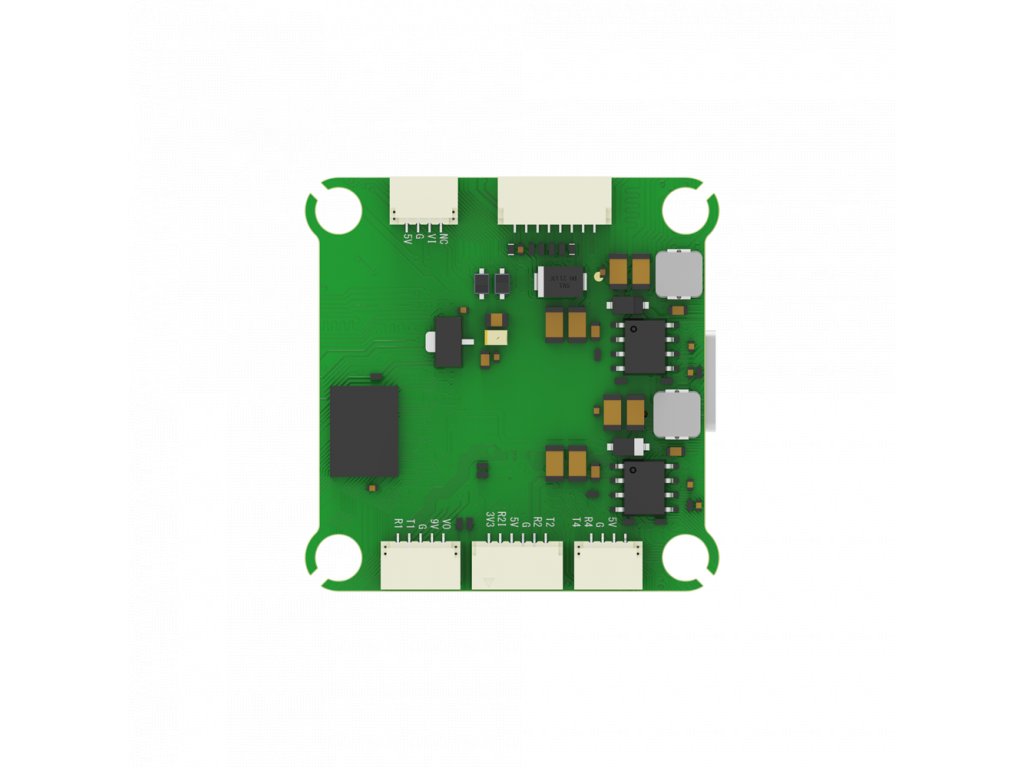

BLITZ ATF435 FC flight controller

Product detailed description

Our latest BLITZ Flight Controller used in iFlight BNF. Ultra fast ATF435 MCU for 2-6S batteries. Mounting pattern 30,5x30,5. Fits perfectly with your new frame. Improved circuit design, better components and lower electrical noise! DJI HD VTX connector (Plug-and-Play / No soldering), FC indicator LED for visual tuning, with LC filter.

Description:

• MCU: AT32F435CGU7

• Gyro: ICM42688

• Barometer: DPS310

• OSD chip: AT7456E

• Flash: 32 MB (Blackbox flash)

• UARTS: 6

• Motor outputs: 4x (SH1.0 connector)

• I2C serial: SDA/SLA pads

• Smartaudio / IRC Tramp VTX protocol supported

• LED Driver: Yes

• Buzzer: Yes

• Target firmware: IFLIGHT_BLITZ_ATF435

• Mounting Pattern: 30.5*30.5mm/4mm PCB hole diameter

• Dimensions: 36.5*35 mm

• Weight: 7.8g

• BEC: 5V 2.5A / 9V 2A

Recommended wiring:

• UART 1 for VTX HD/Analog

• UART 2 for receiver

• UART 3/4/5 for GPS or other sensors that require a serial port

• UART 6 for ESC Telemet

Package includes:

• 1 x BLITZ ATF435 Flight Controller

• 1 x FC connectors (as above)

• 1 set of silicone grommets
