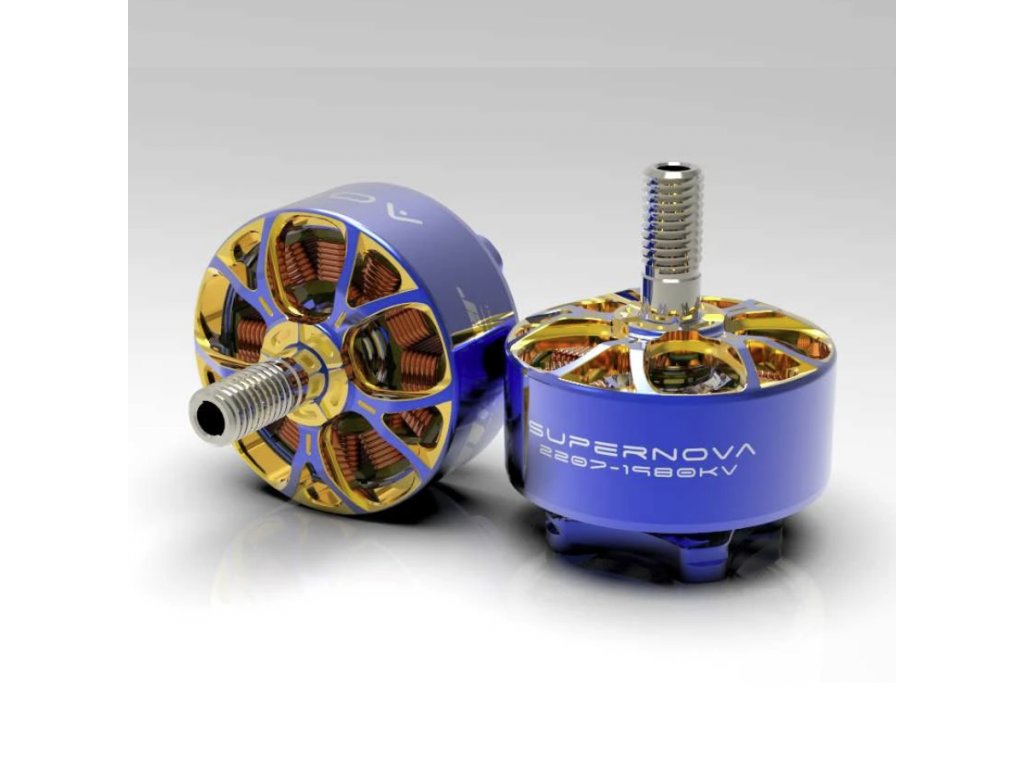

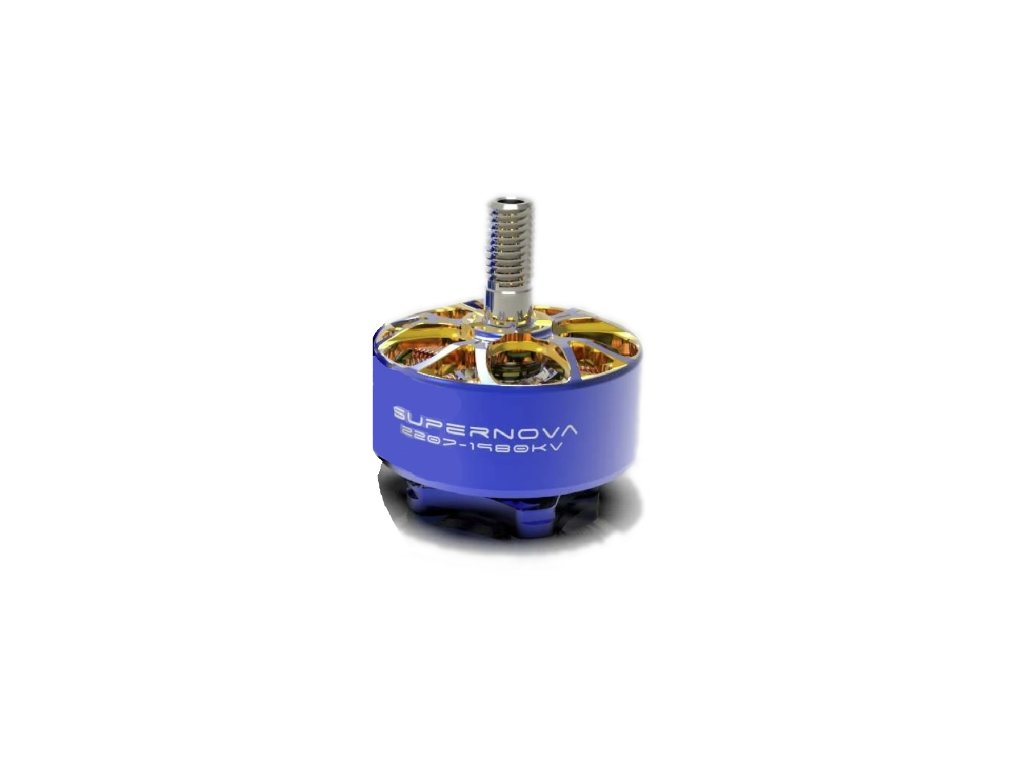

AOS Supernova 2207 1980KV Engine

Product detailed description

The AOS Supernova 2207 delivers more power, more torque and better efficiency per gram than any other engine in its class. Chris Rosser has tested over 50 different 5" motors from the biggest and best manufacturers in the FPV segment. Using special development software, the performance of a motor designcan be accurately predicted in minutes allowing many different motor designs to be tested quickly. Chris has taken this one step further by writing an optimization script that uses this model to find the optimal design. The design thus provides the highest power, torque and efficiency at a target motor weight of 31g (excluding cables).

Specifications:

• HP: 1980KV

• Configuration: 12N14P

• Shaft diameter: 4 mm (hollow)

• Size: 2207

• Internal Resistance: 45mΩ

• Motor Dimensions (Dia.*Len): Φ27.6×19.5mm

• Weight with wires (g): 31 g (2 cm wire)

• Max current (5S): 61A

Package contents:

• 1x AOS Supernova 2207 1980KV motor + screws with propeller nut
