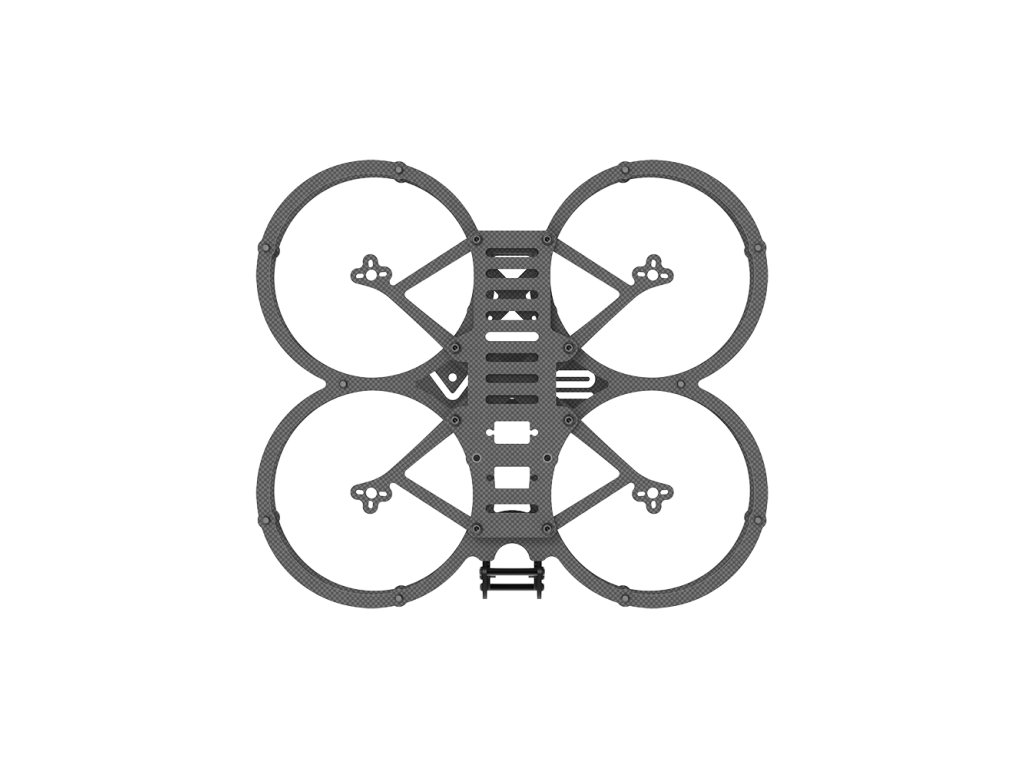

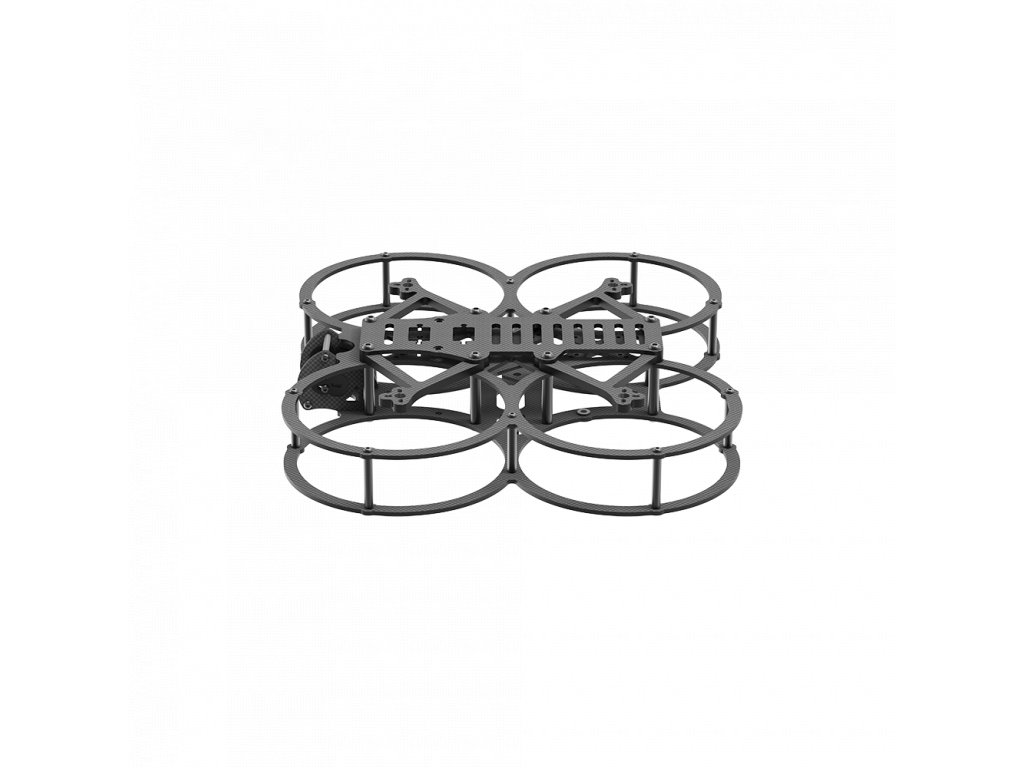

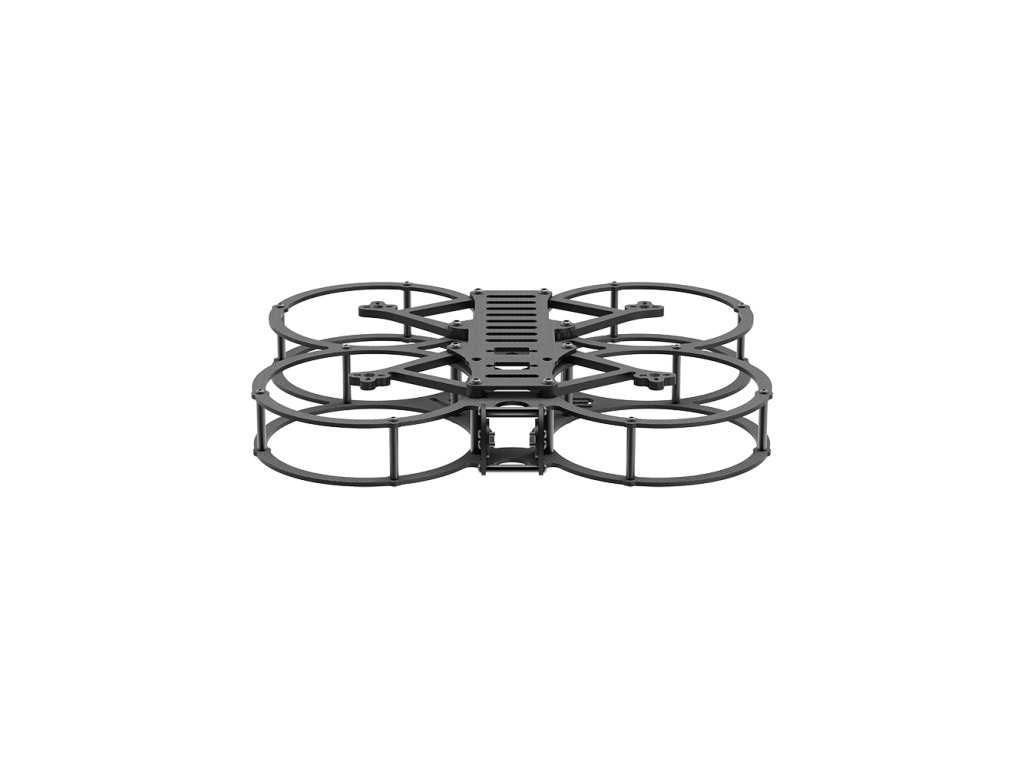

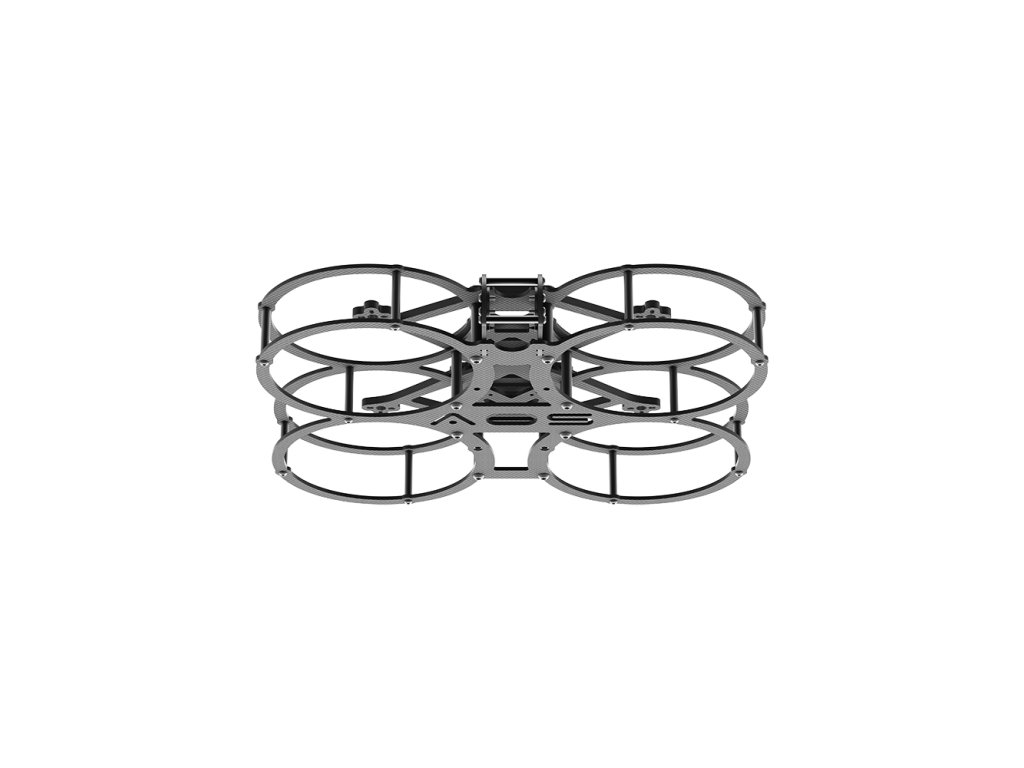

AOS Cine35 EVO V1.2 Frame Kit
Related products
Product detailed description
The latest version of the AOS Cine25 EVO frame. It has modified FPV camera mounts to support the DJI O3 and all other 19-20mm FPV cameras.
- Designed for 3.5 inch propellers that do not interfere with the camera image
- 4mm truss arms
- Up to three 25.5mm or 20mm stacks (front, middle and rear)
- One 30.5 mm stack (centre)
- 32x32mm GoPro mounting holes in the top plate with compression nuts installed
- XT60 goes through the top plate
- Battery strap holes for longitudinal mounting
- Fits 19-20mm FPV cameras including DJI O3
- Recommended motor size 2004
- 9x9 to 12x12mm motor mount
Specifications:
- Motor pitch: 161.5mm
- Frame size: L128*W99*H35mm / L233*W204*H35mm (with protective cover)
- Arm thickness: 4mm
- Top plate thickness: 2 mm
- Bottom plate thickness: 2 mm
- Top plate thickness: 2 mm
- Motor mounting: 9x9mm / 12*12mm
- VTX mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
- Weight: 134 grams
Package includes:
- 1 x AOS Cine35 EVO V1.2 frame set
- 1 x screw bag
- 1 x battery strap
