Antennas X²-AIR 5.8 MK II for HDZero glasses

Product detailed description

More profit and more comfort! This is an adaptation of all X²-AIR antennas to the elegant low-profile HDzero glasses mount. Simply slide the antennas onto the module rails and screw in the custom knurled SMA connectors. The improved gain of 13 dBic and massive combined beamwidth of 165 degrees delivers an amazing flight experience in the most challenging conditions.

The dual-element array provides a circular polarized 13Dbi beam with a 75-degree angle
By combining these two elements into a single source, amplification is enhanced and horizontal coverage is extended by compromising vertical coverage, which is not widely used in FPV.

Low profile design, only 15 mm thick.
The most compact antennas of this gain level are only 15mm thick, so you can leave them on your goggles all the time without having to worry about breaking them. The included double-sided foam tape will firmly attach to your glasses mount and install it in minutes.

The custom madeSMA connectors fit stylishly with the HDzero.
As with all other X²-AIR antenna components, the custom SMA connector is made to the highest standards to fit perfectly with your HDzero glasses and ensure that every bit of RF energy is transmitted from the X²-AIR. The knurled surface ensures easy tightening and a quality look exclusive to TrueRC.

Description:

• Circularly polarized

• Sector beam shape (widest horizontal)

• Mounts directly to the HDzero module with the included slide-on brackets.

• Compact low-profile design, easy storage and transport

• High 13 dBic for unsurpassed long range and signal penetration

• Large SWR and axial ratio bandwidth, works outside the 5.8 GHz band

• Super wide beamwidth of 150 degrees for each antenna combined with a beamwidth of 165 degrees

• Custom notched SMA connectors

Specifications:

• Bandwidth: 5.1 GHz-7.0 GHz

• Gain: 13 dBic

• Polarization: RHCP

• Beamwidth Horizontal*: 150 degrees

• Vertical Beamwidth*: 62 degrees

• Upper beam @-3dB**: 75 deg.

• Vertical beam @-3dB**: 34 deg.

• Connector.

• Dimension: 72 mm x 34 mm x 15 mm

• Weight: 20 g each

• Includes brackets for installation on HDzero module

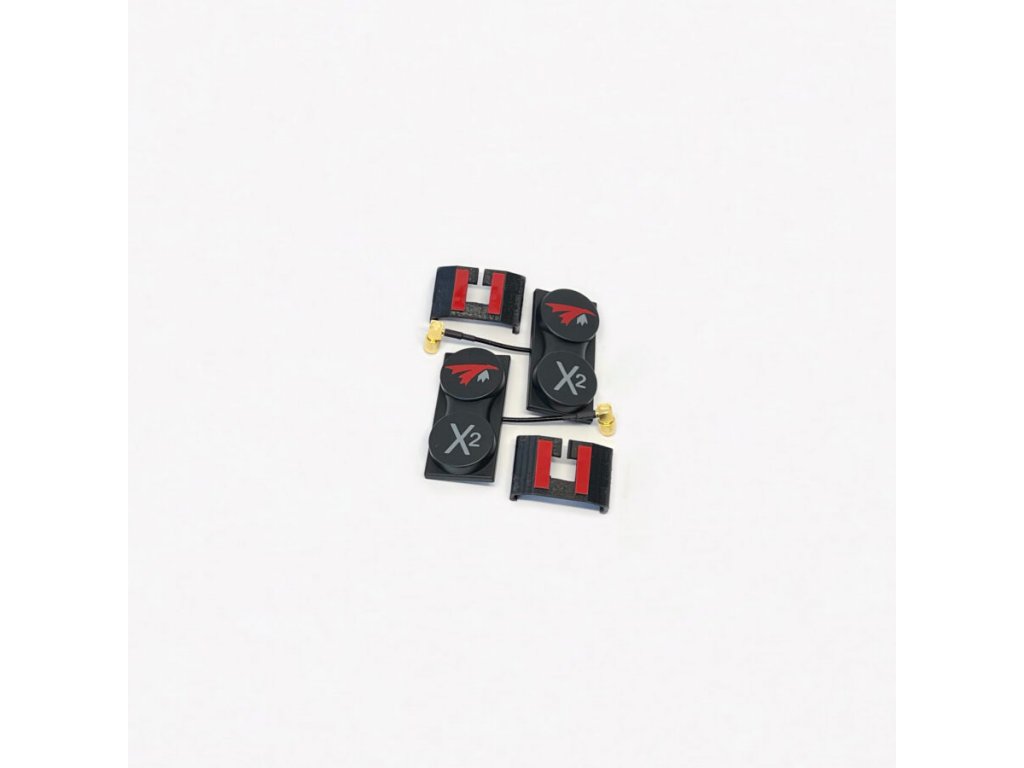

Package Contents:

• Two X²-air MKII antennas (one for each side).

• Two sliding brackets.
