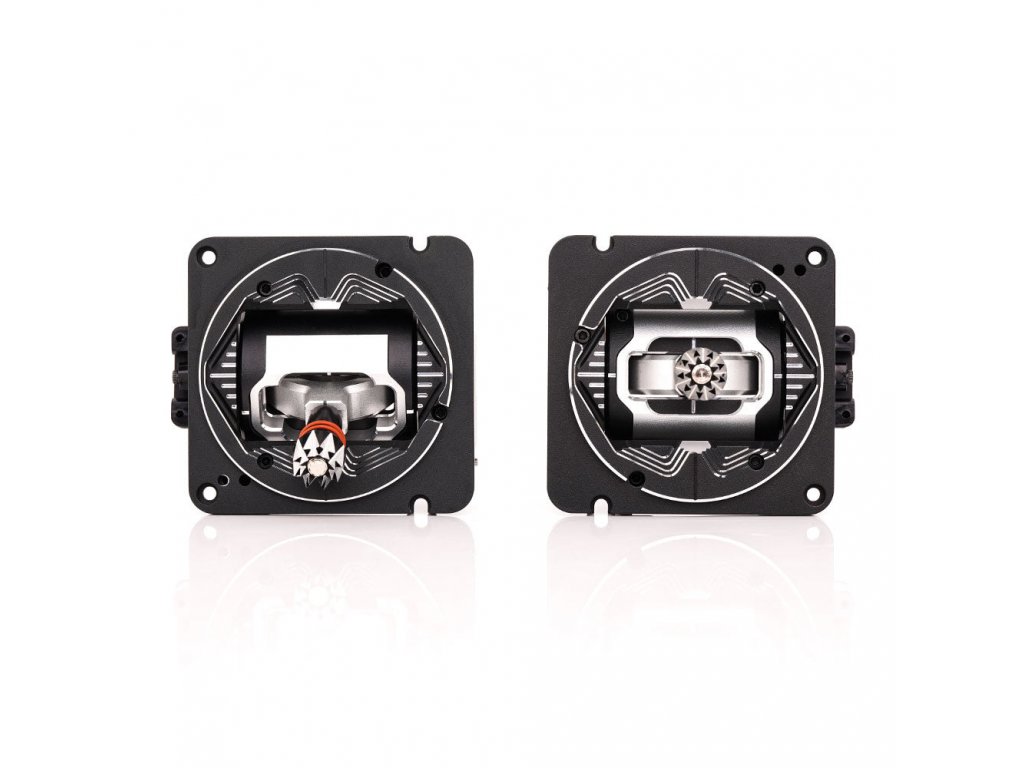

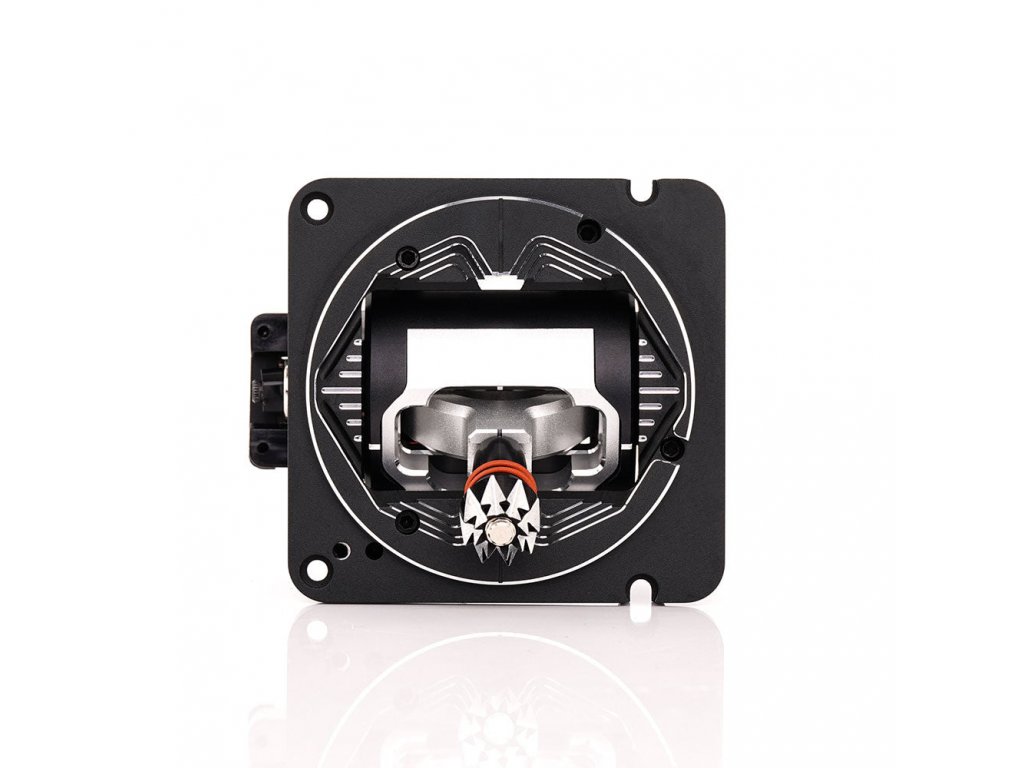

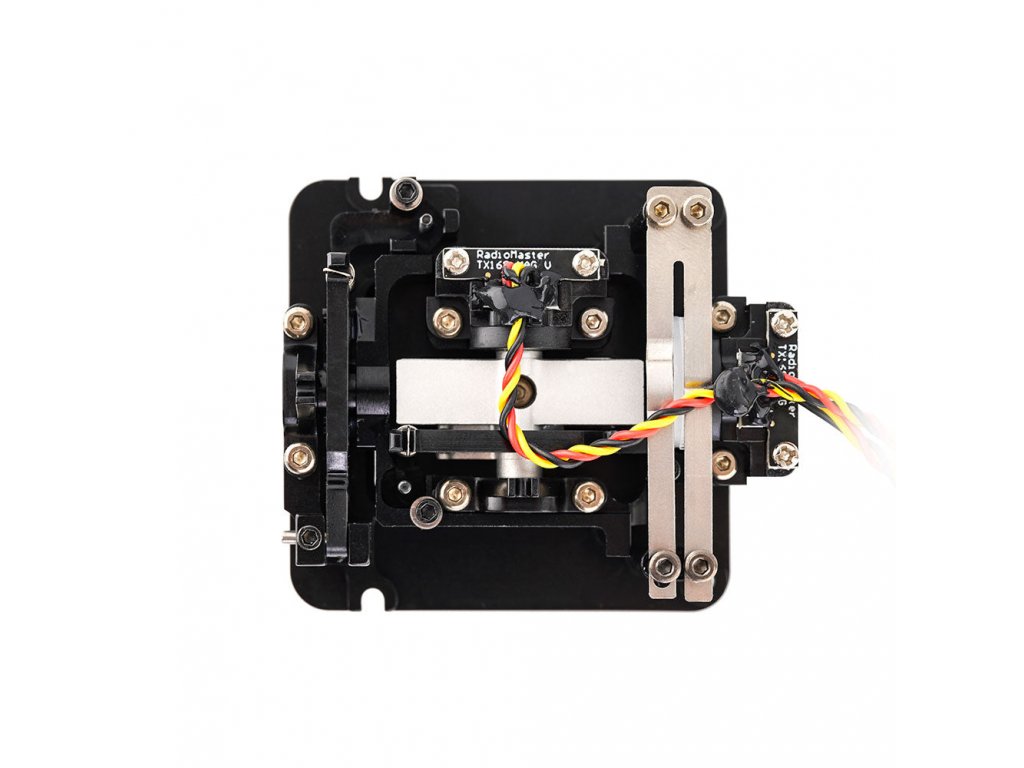

AG01 CNC Hall Gimbals for TX16S & Boxer

Product detailed description

Designed and tested for over a year,the AG01 gimbals were developed with our engineers and professional pilots such as MCK, Alex Campell, Noical and Veysi. The AG01 is fully CNC milled for maximum precision with four ball bearings for smooth and accurate operation. With front tension and stroke adjustment for easy fine tuning. The AG01 will take your TX16S or Radiomaster Boxer to the next level.

Characteristics:

• Made from CNC machined aircraft aluminum

• Ergonomic gimbal ends

• Non-contact Hall sensors for precise control inputs and accurate centering.

• 4 precision bearings


Specifications:

• AG01 CNC Hall Gimbal Sets

• Hall type.

• Operating voltage: DC 3.3V

• Linearity: real-time (no delay)

• Adjustable travel range: 38°-54°

• Adjustable mode: Yes

• Adjustable voltage: Yes

• Quadruple bearing: Yes

• Temperature range: -20°C-85°C

• Size: 60*53*56mm

• Weight: 125g/pc

Package includes:

• 2x AG01 CNC Hall Gimbal
